Product Type

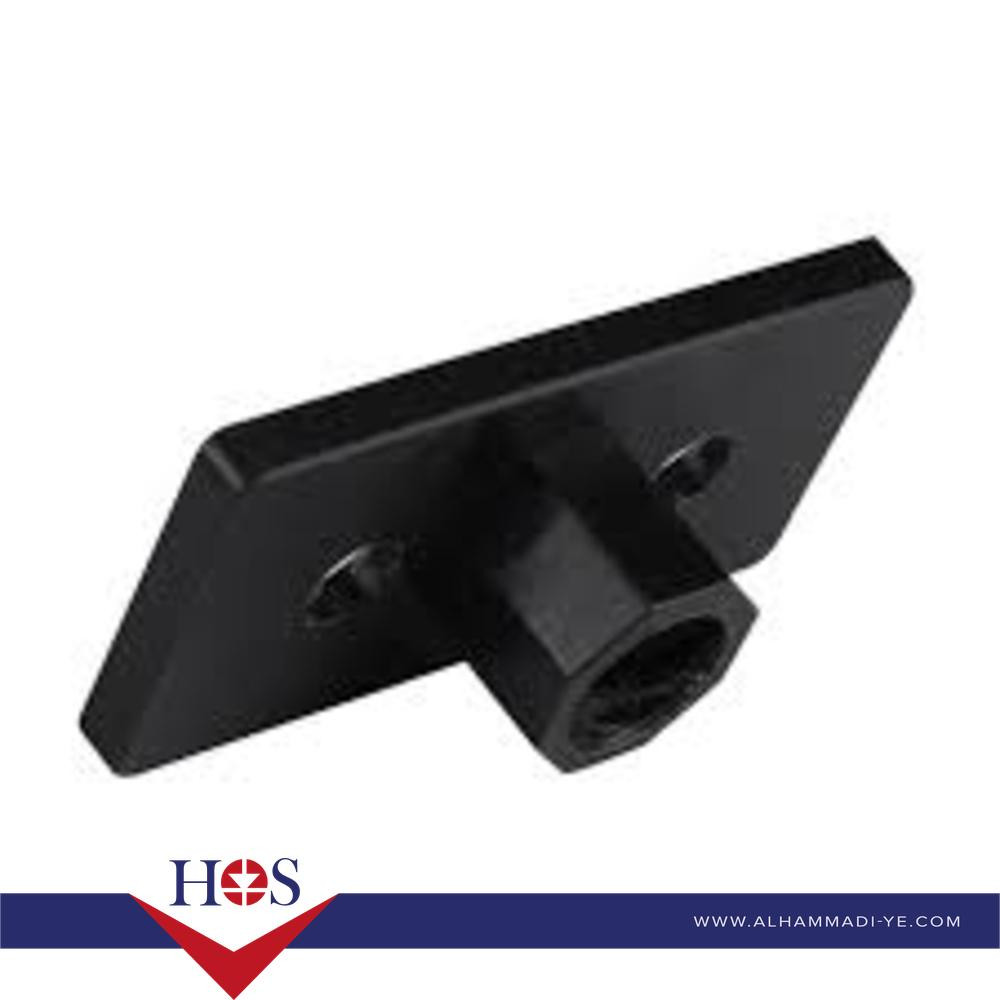

Integrated Lead Screw Nut Plate / Internal Lead Screw Mount

Brand

OpenBuilds

Compatible Lead Screw

8mm Metric Acme Lead Screw (Tr8x8(p2) - 8mm Diameter, 2mm Pitch, 8mm Lead/4 Starts)

Material

Delrin (POM - Polyoxymethylene)

Color

Typically Black

Compatibility (V-Slot Extrusion)

Fits hollow inserts/core of 20x40mm, 20x60mm, and 20x80mm V-Slot Linear Rail profiles

Mounting Method

Mounts directly into the end holes of compatible V-Slot profiles using OpenBuilds self-tapping screws or M5 low profile screws

Integrated Design

Allows lead screw to run inside the V-Slot extrusion for a compact and protected system

Low Friction

Delrin material provides smooth movement and reduces wear

Wear-Resistant

Durable construction for long-term reliability

Backlash Reduction

Delrin material offers some natural anti-backlash properties for reduced play

Compact & Clean

Eliminates external nut blocks, resulting in a sleeker build

Easy Installation

Designed for straightforward mounting into V-Slot ends

Advantages

Offers a very clean aesthetic and protected lead screw. Good for applications where space is at a premium and integrated motion is desired. The Delrin material provides decent performance for linear motion.
