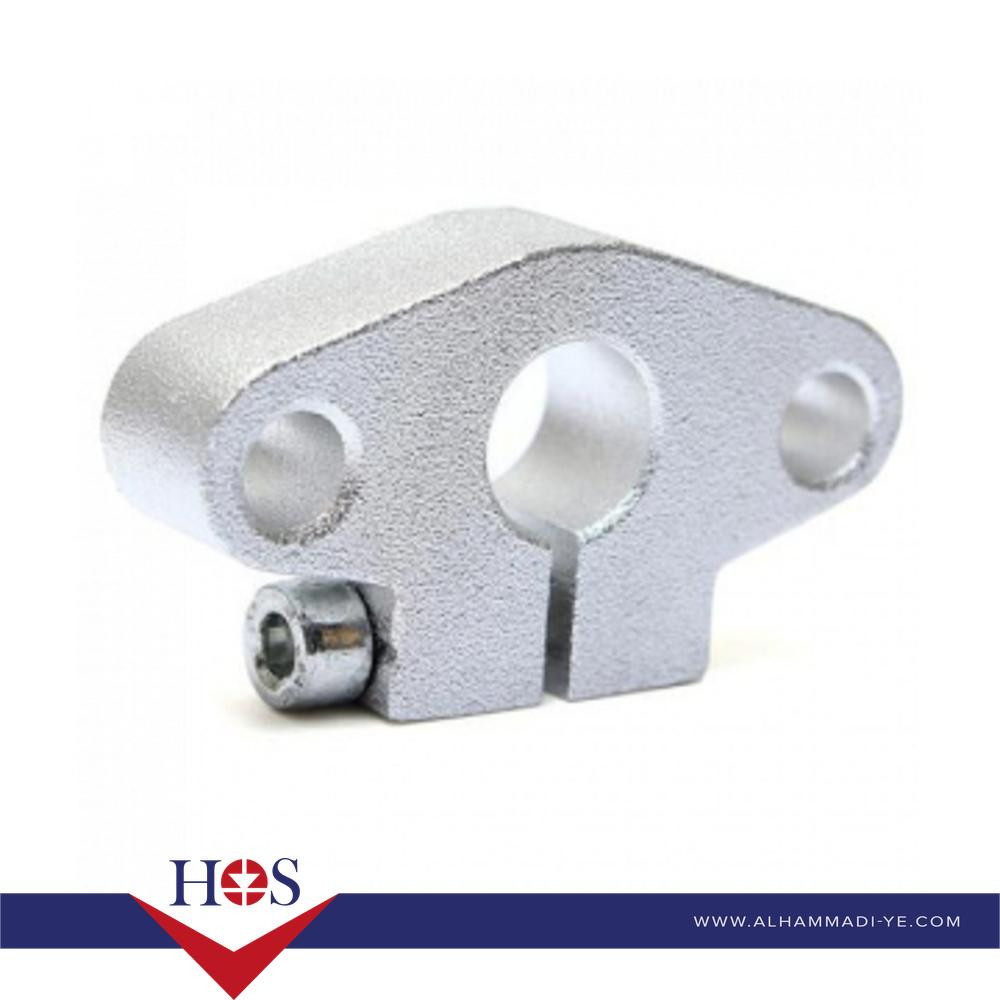

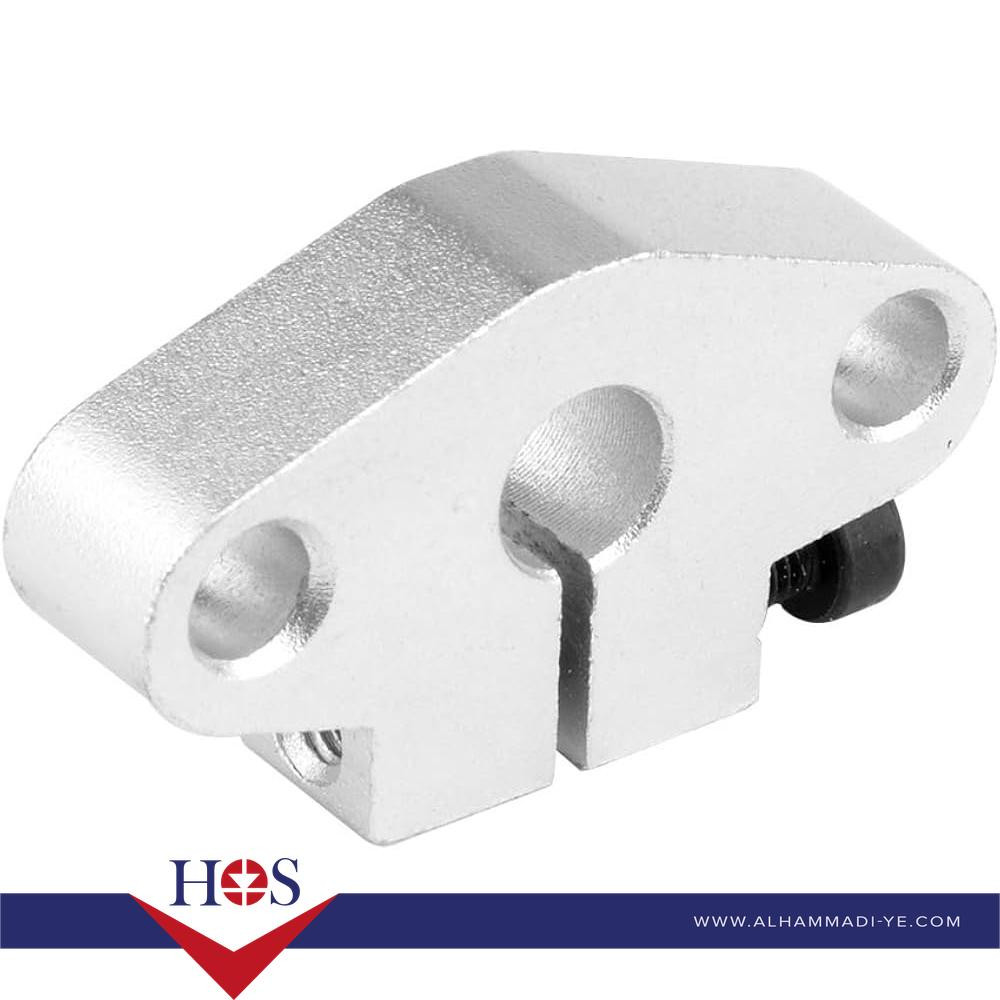

Model Designation

SHF10

Compatible Shaft Diameter (d)

10mm (Designed to firmly hold and support a 10mm diameter linear shaft/rod)

Type

Horizontal Type Holder / Flanged Shaft Support / Fixed End Support

Material

Aluminum Alloy (Typically anodized, usually in silver or sometimes black, for enhanced corrosion resistance and a clean finish)

Mounting Orientation

Horizontal mounting (Designed to be bolted onto a flat surface, with the shaft clamping horizontally, parallel to the mounting surface)

Overall Dimensions (approx.)

- Length (L)

~43mm

- Width (W)

~24mm

- Height (H)

~10mm (This is the height of the base plate; the total height including the shaft clamping section is slightly more)

- Mounting Hole Spacing (A)

~32mm (Center-to-center distance of the mounting holes on the base flange)

- Mounting Hole Diameter (D)

~5.5mm (Suitable for M5 screws, which are commonly used for mounting these supports)

Shaft Clamping Method

Split Clamp Design with Set Screw(s) (Typically one M4 or M5 grub/set screw is used to tighten the split in the aluminum body, creating a strong friction clamp around the 10mm shaft. Some designs might have two set screws for added security.)
