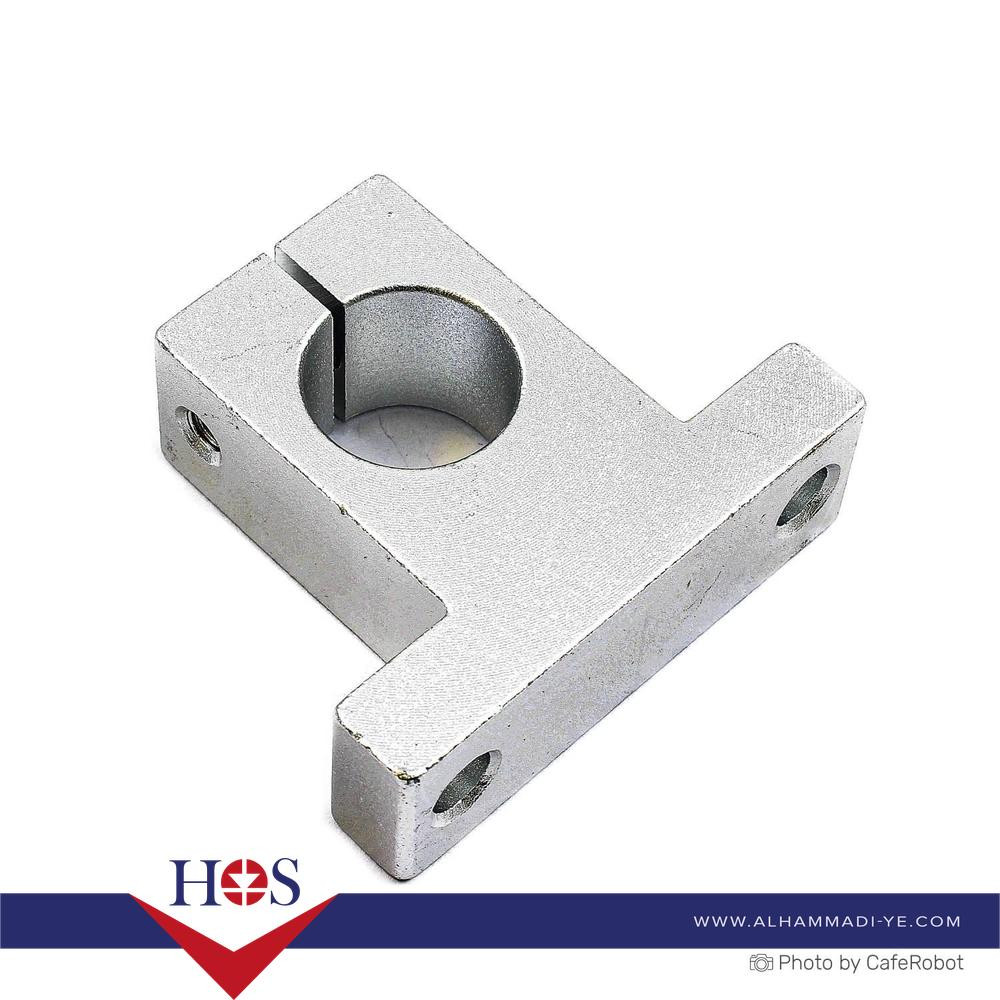

Model Designation

SK12 / SH12 (These designations generally refer to the same type of product from different manufacturers)

Compatible Shaft Diameter (d)

12mm (designed to firmly hold and support a 12mm diameter linear shaft)

Type

Vertical Type Holder / Fixed End Support

Material

Aluminum Alloy (Anodized, typically silver or black, for corrosion resistance and aesthetics)

Mounting Orientation

Vertical mounting (designed to be bolted onto a flat surface, with the shaft clamping vertically)

Overall Dimensions (approx.)

- Width (W)

~48mm

- Height (H)

~32mm

- Length/Base (L)

~28mm

- Mounting Hole Spacing (A)

~38mm

- Mounting Hole Diameter (D)

~5.5mm (for M5 screws)

Shaft Clamping Method

Split Clamp Design with Set Screw(s) (One or two M4/M5 set screws are typically used to tighten the split clamp around the shaft, securing it firmly).
