Kit Type

DIY 3D Printer Electronics & Extruder Kit (RepRap style)

Core Controller Board

RAMPS 1.4 (RepRap Arduino Mega Pololu Shield): An open-source shield board that plugs directly onto the Arduino Mega 2560. It serves as the main interface for stepper motor drivers, heaters, thermistors, endstops, and LCD display.

Microcontroller Board

Arduino Mega 2560 R3: An open-source microcontroller board based on the ATmega2560. Provides the processing power and I/O pins for the RAMPS 1.4 shield. It has ample memory and pins for complex 3D printer firmware.

Stepper Motor Drivers

A4988 Stepper Motor Drivers: Typically included (e.g., 4 or 5 pieces) for controlling the stepper motors of the X, Y, Z axes, and the extruder(s). Features include adjustable current limiting, over-current/temperature protection, and microstepping capabilities (up to 1/16th step).

Motors

NEMA 17 Stepper Motors: Usually 4 or 5 motors (e.g., 1.8 degrees/step, ~40 Ncm holding torque) with pre-attached cables. One for each axis (X, Y, Z) and one or two for the extruder(s).

Extruder

RepRap MK8 or MK10 Extruder: <br> - Type: Typically a Bowden or Direct Drive extruder assembly. <br> - Components: Includes a stepper motor mounting bracket, drive gear, idler pulley/bearing, spring tension mechanism, and often a hotend (heating block, nozzle, heatsink, thermistor, heater cartridge). <br> - Filament Diameter Compatibility: Usually 1.75mm (most common).

Hotend

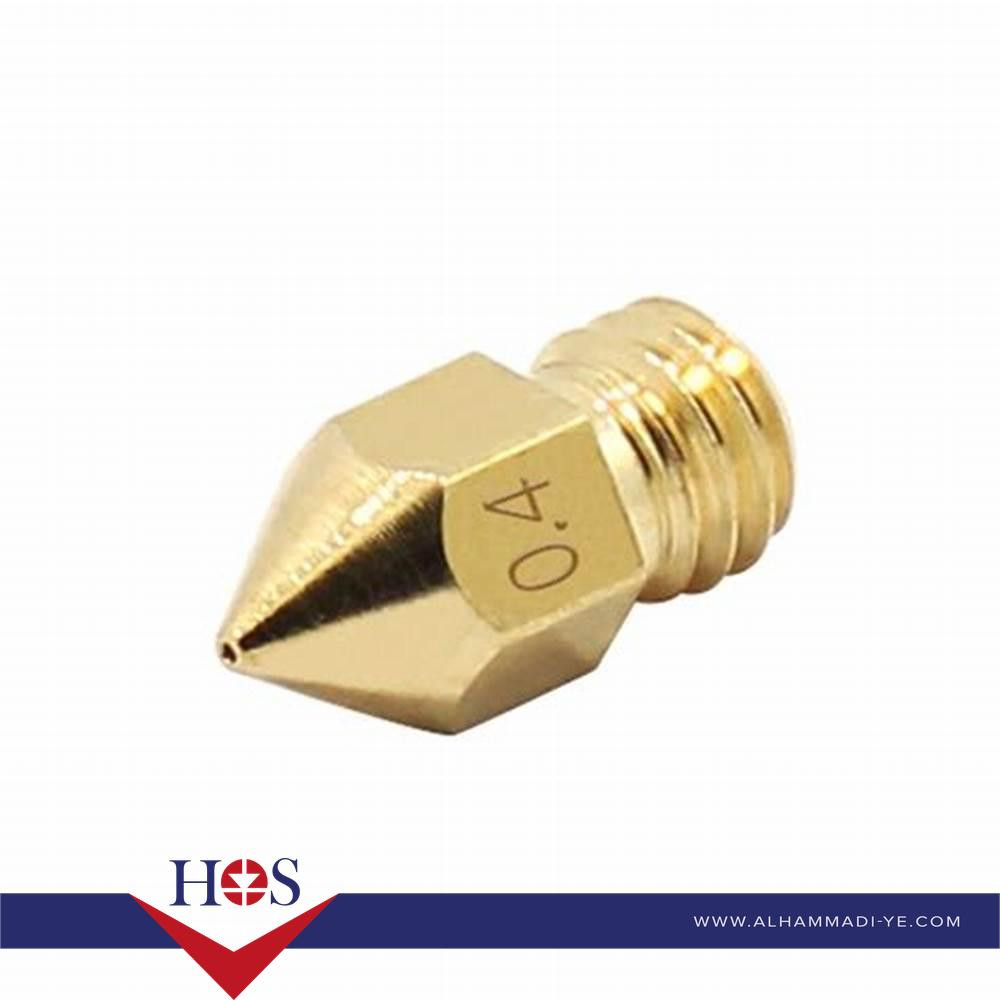

MK8 or V6 Style Hotend: <br> - Nozzle Diameter: Common sizes like 0.4mm included. <br> - Heating Element: 12V or 24V heater cartridge. <br> - Temperature Sensor: NTC 100K thermistor.

Heated Bed Components

Often includes a Heated Bed (PCB or Aluminum) with a thermistor for temperature sensing and necessary wiring. (Check kit specifics for heated bed inclusion).

Endstops

Mechanical Limit Switches: Typically 3 to 6 switches (for X, Y, Z min/max positions) with cables.

Display (Optional but common)

LCD 12864 or 2004 Display with SD Card Reader: Allows for standalone printing without a computer, firmware control, and monitoring.

Wiring & Cables

All necessary wiring for motors, thermistors, heaters, and endstops.

Power Supply (NOT typically included)

Requires an external DC power supply (e.g., 12V 20A or 24V for optimal performance, depending on heated bed).

Firmware (Not included, but compatible)

Open-source firmware like Marlin or Repetier-Firmware is typically used and needs to be uploaded to the Mega 2560.

Purpose

Forms the fundamental electronic, motion, and extrusion system for building a custom or open-source RepRap-style 3D printer.

Advantages

Cost-effective entry into 3D printer building, highly customizable, large community support, open-source nature.

Disadvantages

Requires assembly and configuration knowledge, troubleshooting skills, no pre-built frame or structural components included.
