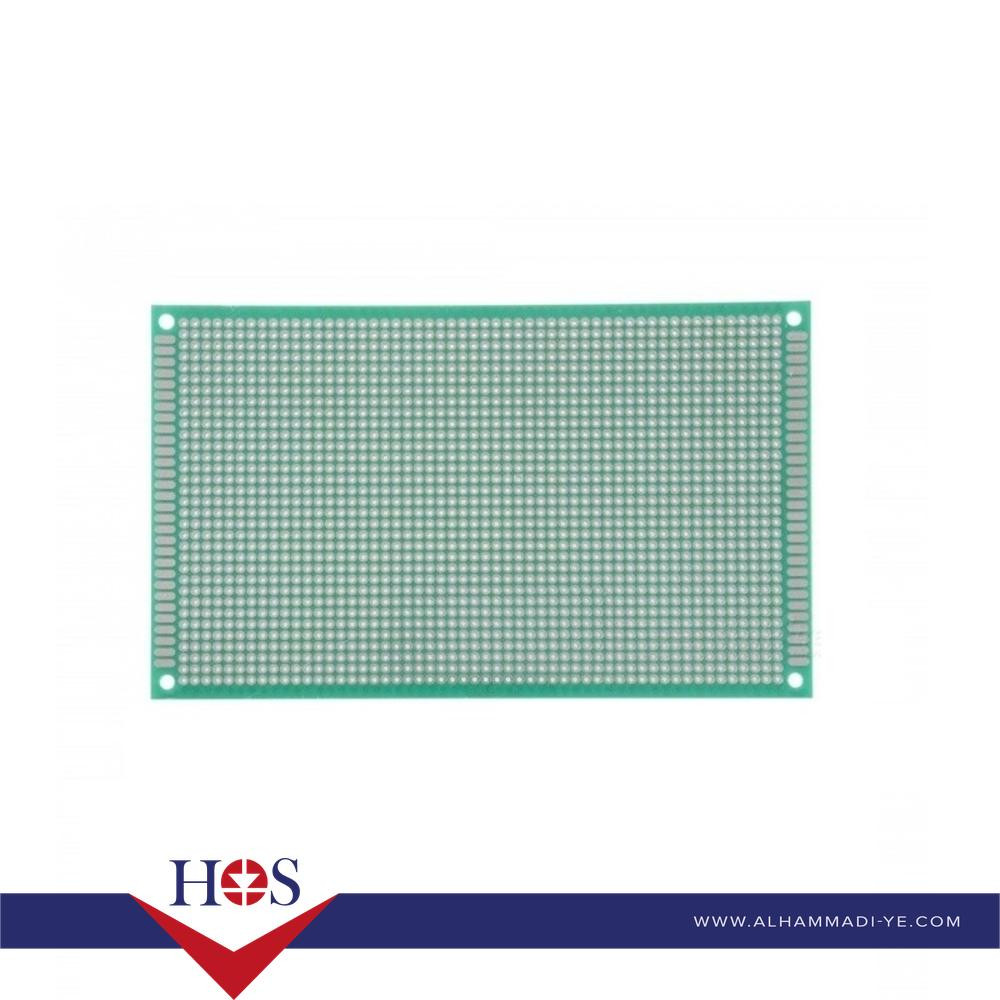

9-15cm-Universal-PCB-Prototype-Board-Single-Sided-2.54mm-Hole-Pitch برده تجارب اخضر مخرم 9*15 سم
|
Specification |
|
|
Model Number |
PCB-150-254 |
|
Dimensions |
9×15cm (90×150mm) ±0.5mm |
|
Material |
FR4 (Grade A-1) |
|
Layers |
Single-sided |
|
Copper Thickness |
1oz (35μm) |
|
Hole Pitch |
2.54mm (0.1") grid |
|
Hole Size |
1.0mm ±0.1mm (plated-through) |
|
Pad Diameter |
2.0mm (annular ring 0.5mm) |
|
Surface Finish |
Lead-free HASL |
|
Markings |
X/Y coordinate grid (0-150mm) |
|
Mounting Holes |
4× corner holes (3.2mm) + 2×
center holes |
|
Board Thickness |
1.6mm ±0.15mm |
|
Solder Mask |
Green (LPI) |
|
Silkscreen |
White component marking lines |
