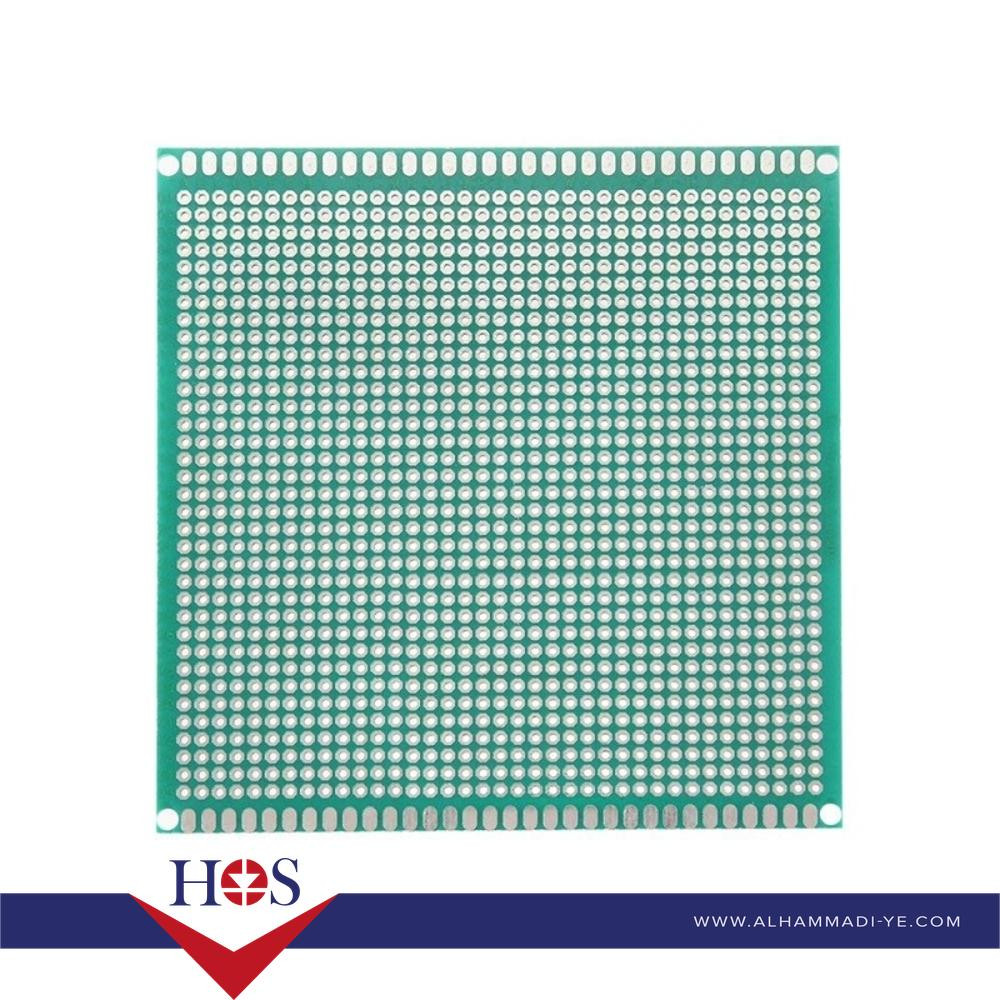

10-10cm-Universal-PCB-Prototype-Board-Single-Sided2.54mm-Hole برده تجارب اخضر مخرم 10*10 سم
|
Specification |
|
|
Model Number |
PCB-100-254 |
|
Dimensions |
10×10cm (100×100mm) ±0.5mm |
|
Material |
FR4 (Grade A-2) |
|
Layers |
Single-sided |
|
Copper Thickness |
1oz (35μm) |
|
Hole Pitch |
2.54mm (0.1") grid - 39×39
holes |
|
Hole Size |
1.0mm ±0.05mm (plated-through) |
|
Pad Design |
2.2mm diameter with 0.6mm annular
ring |
|
Surface Finish |
Lead-free HASL (2-40μm) |
|
Markings |
X/Y coordinate grid
(lettered/numbered) |
|
Mounting Holes |
4× corner holes (3.2mm) + center
cross pattern |
|
Board Thickness |
1.6mm ±0.1mm |
|
Solder Mask |
Green (LPI, 18μm) |
|
Silkscreen |
White component guides (IC
outlines, power symbols) |
