Battery Type

LiFePO4 (Lithium Iron Phosphate)

Cell Configuration

3S (3-series, 9.6V–10.8V nominal)

Charge Voltage

10.8V (3.6V per cell)

Max Discharge Current

100A (Continuous)

Peak Current

150–200A (Short burst, model-dependent)

Balance Function

Passive Balancing (Optional in some models)

Overcharge Protection

3.75±0.05V per cell

Over-Discharge Protection

2.0±0.05V per cell

Overcurrent Protection

Yes (Adjustable, typically 100A–150A)

Short-Circuit Protection

Yes (Auto-cutoff)

Temperature Protection

Optional (NTC thermistor in some versions)

Balance Current

~30–100mA (Passive balancing)

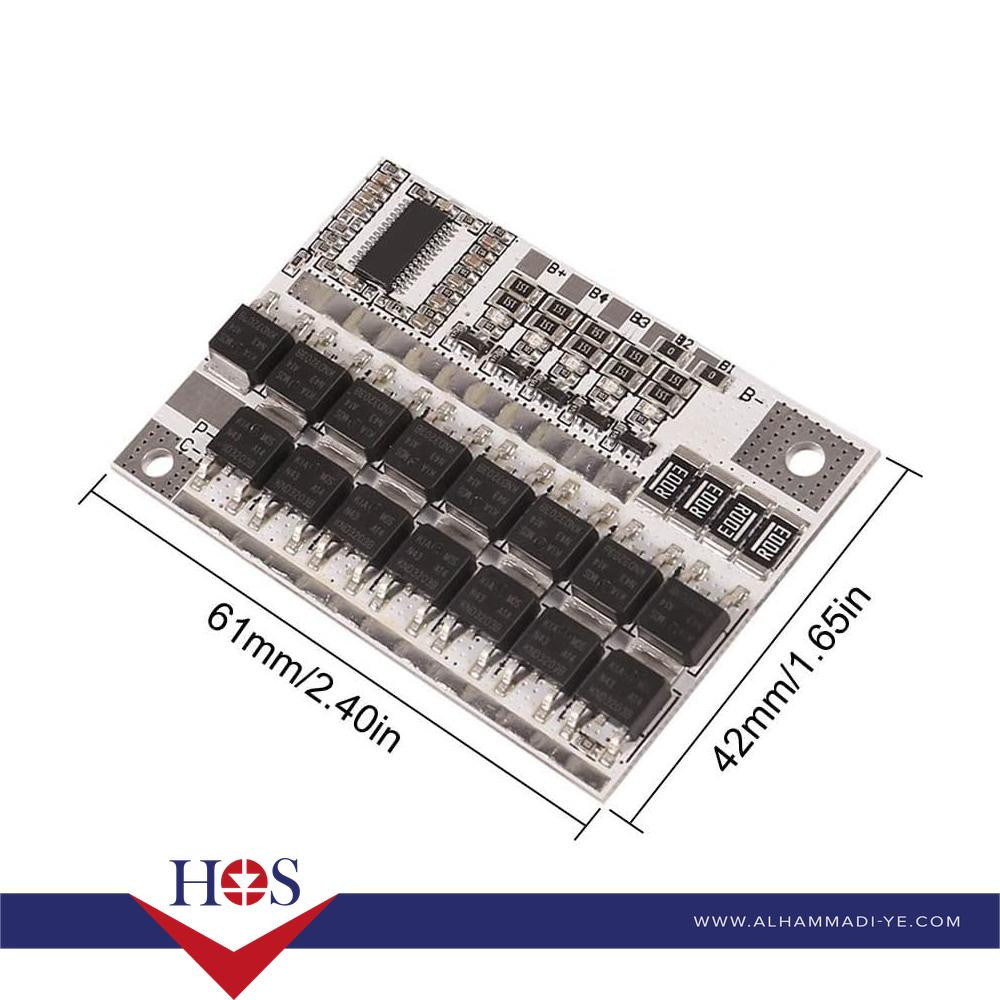

PCB Size

~60mm x 45mm (Varies by manufacturer)

Wire Gauge Support

8–10AWG (High-current terminals)

Applications

Solar storage, EVs, e-bikes, marine, power tools
