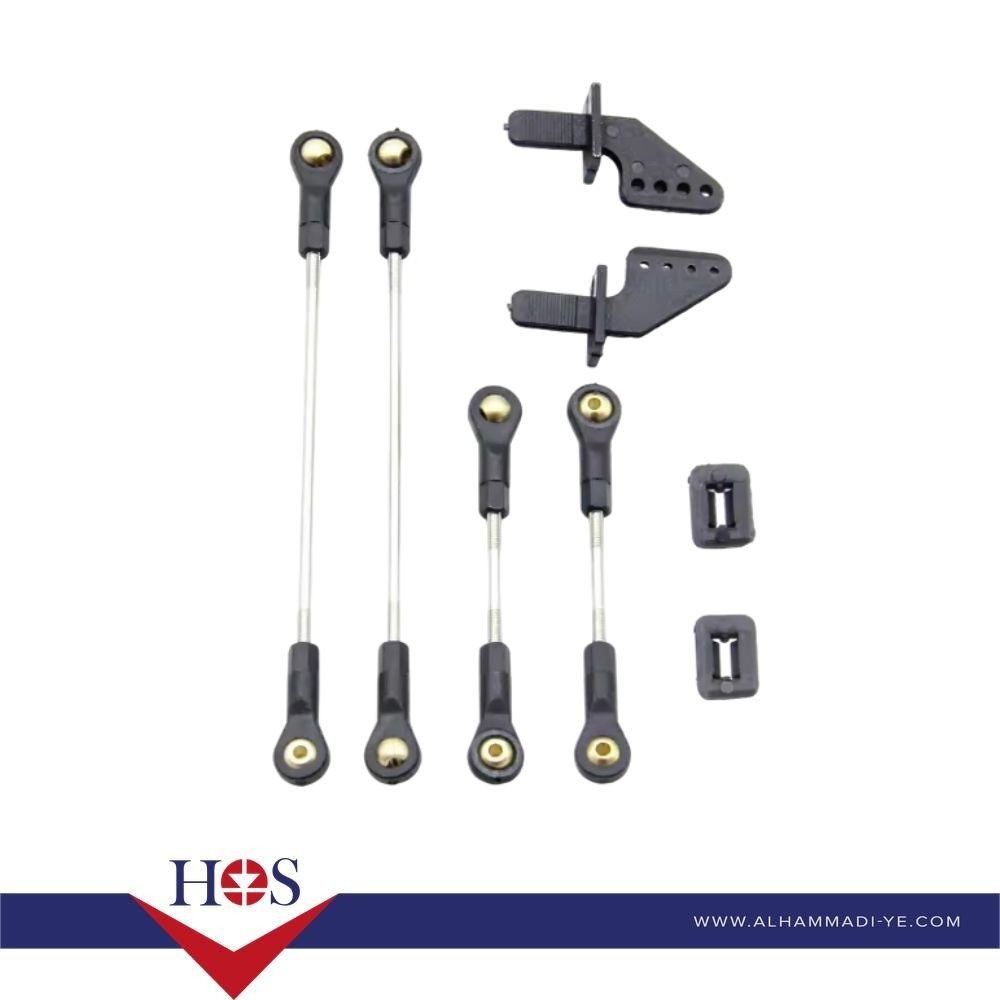

Connecting Rod Rudder Angle for Jumper XiaKe 800 Portable Fixed Wing قضيب توصيل زاوية الدفة لطائرة الثابتة الجناح المحمولة
|
Parameter |
Description / Specification |
|
Function |
Precision rudder control
linkage for adjusting deflection angles in the Jumper XiaKe 800 fixed-wing RC
aircraft. |
|
Applications |
RC fixed-wing aircraft
(specifically XiaKe 800), rudder surface control, flight stabilization. |
|
Main Features |
- Adjustable rod length for
fine-tuning rudder angle- Lightweight carbon fiber/aluminum construction-
Pre-installed M2/M3 threaded ends for servo & rudder horn attachment-
Anti-vibration design for stable flight |
|
Compatibility |
Jumper XiaKe 800 Portable
Fixed Wing ONLY |
|
Material |
Carbon fiber rod + CNC
aluminum ends |
|
Length Range |
150–180mm (adjustable) |
|
Thread Size |
M2 servo end / M3 rudder end |
|
Weight |
6.5g (entire assembly) |
|
Max Deflection |
±45° (adjustable via rod
length) |
|
Installation |
Tool-free length adjustment;
secure with included locknuts |
Key Specifications Explained
1.
Angle Adjustment
o
Lengthen/shorten the rod to increase/decrease rudder deflection
o
Calibrates neutral position and throw limits
2.
Vibration Damping
o
Flexible nylon ball links absorb high-frequency vibrations
o
Prevents control surface flutter during flight
3.
Aircraft-Specific Design
o
Optimized length range for XiaKe 800's rudder geometry
o
Correct thread sizes for stock servo horns
Usage Notes
Critical Setup Tips
· Neutral Calibration: Adjust rod length until rudder is perfectly centered
at servo midpoint
· Deflection Limits: Set maximum ±45° deflection in transmitter EPA
settings
· Safety Check: Verify locknuts are secured with thread locker
(prevents mid-flight detachment)
· Compatibility Warning: Not suitable for other aircraft models due to unique
dimensions
