57HD6013-03 NEMA23 Stepper Motor 76mm Long, 3A with 800mm Cable ستيبر موتور6013
|
Specification |
|
|
Motor Type |
Bipolar 4-wire Stepper |
|
Frame Size |
NEMA 23 (57×57mm) |
|
Body Length |
76mm (high-torque version) |
|
Step Angle |
1.8° (200 steps/revolution) |
|
Current Rating |
3.0A/phase |
|
Voltage Rating |
36-48V recommended |
|
Resistance/Phase |
~1.2Ω |
|
Inductance |
~6.0mH/phase |
|
Holding Torque |
180N·cm (approx. 255oz·in) |
|
Detent Torque |
~8.0N·cm |
|
Rotor Inertia |
~450g·cm² |
|
Weight |
~1.8kg |
|
Cable Length |
800mm (4-wire) |
|
Connector Type |
Bare wire ends |
|
Insulation Class |
Class B |
|
Ambient Temperature |
-20°C to +50°C |
Related products
SG90 SERVO محرك سرفو صغير
MG995 servo محرك سرفو كبير
Servo MG996 13KG 180 محرك سرفو

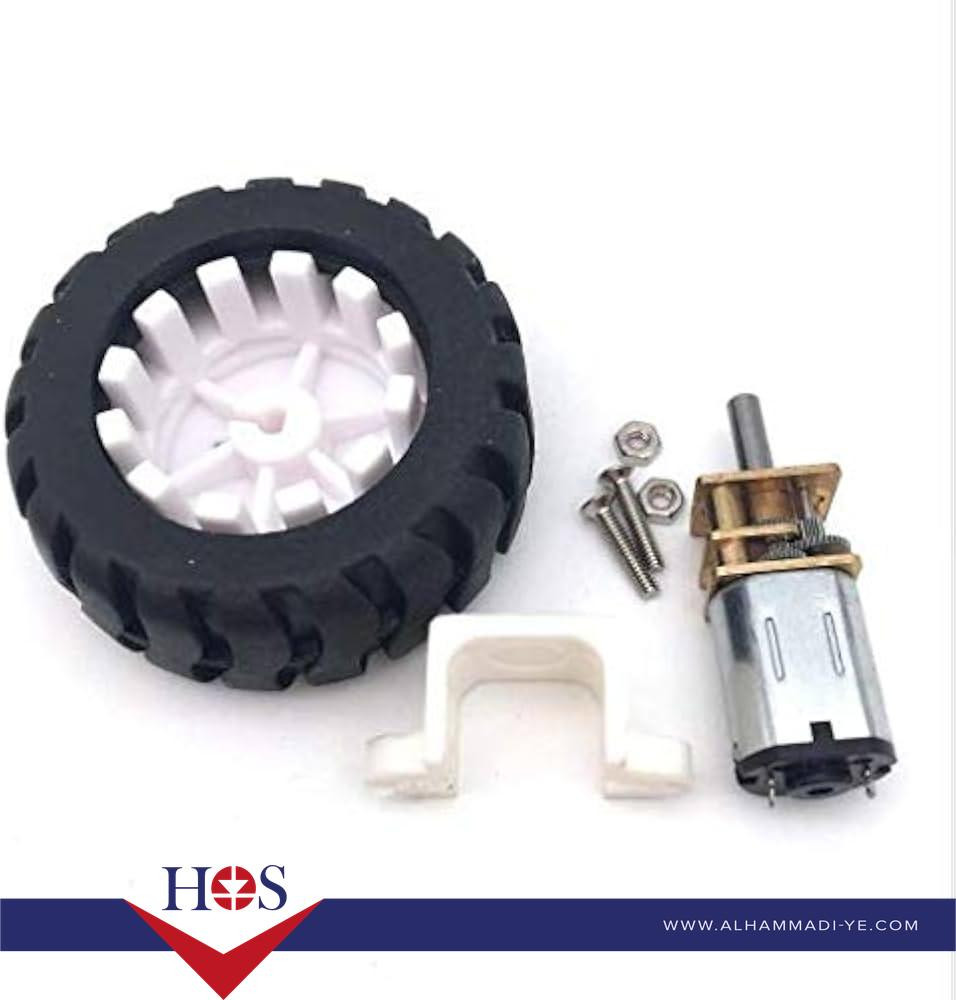

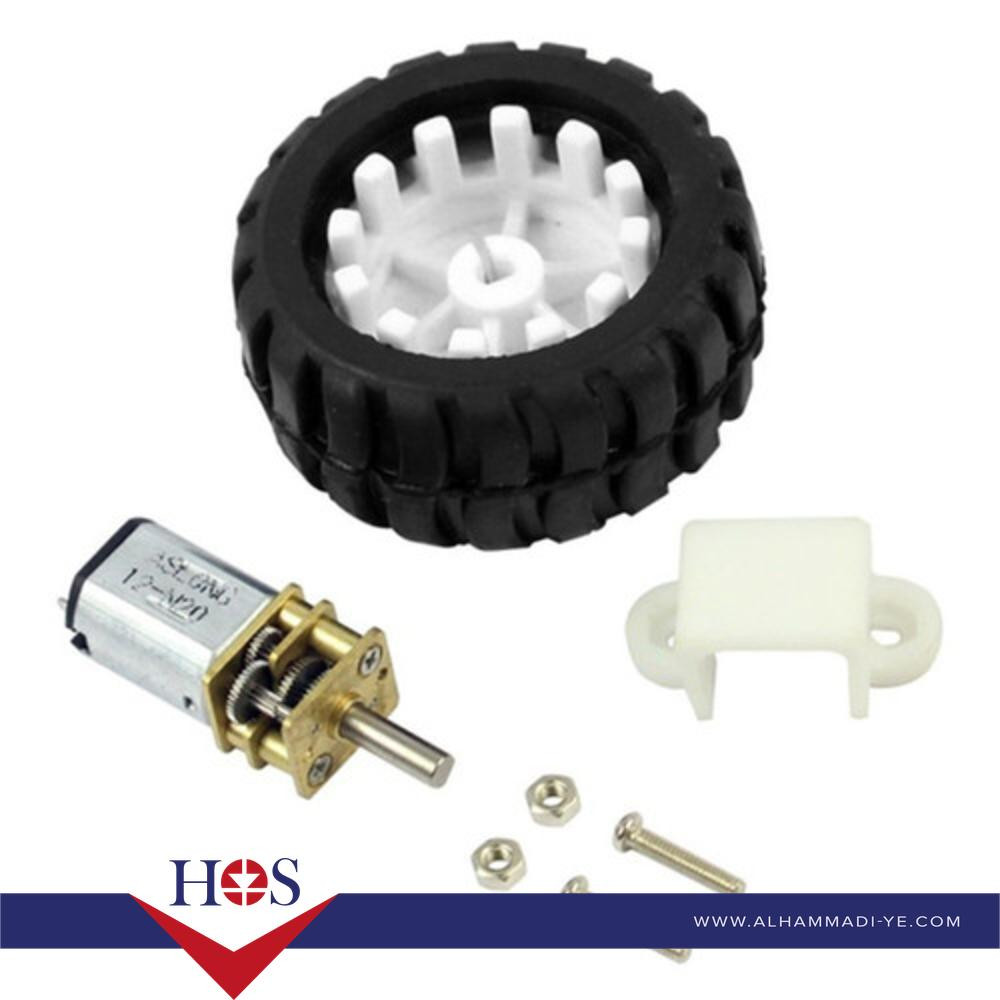

N20 MOTOR جير موتور حديد
