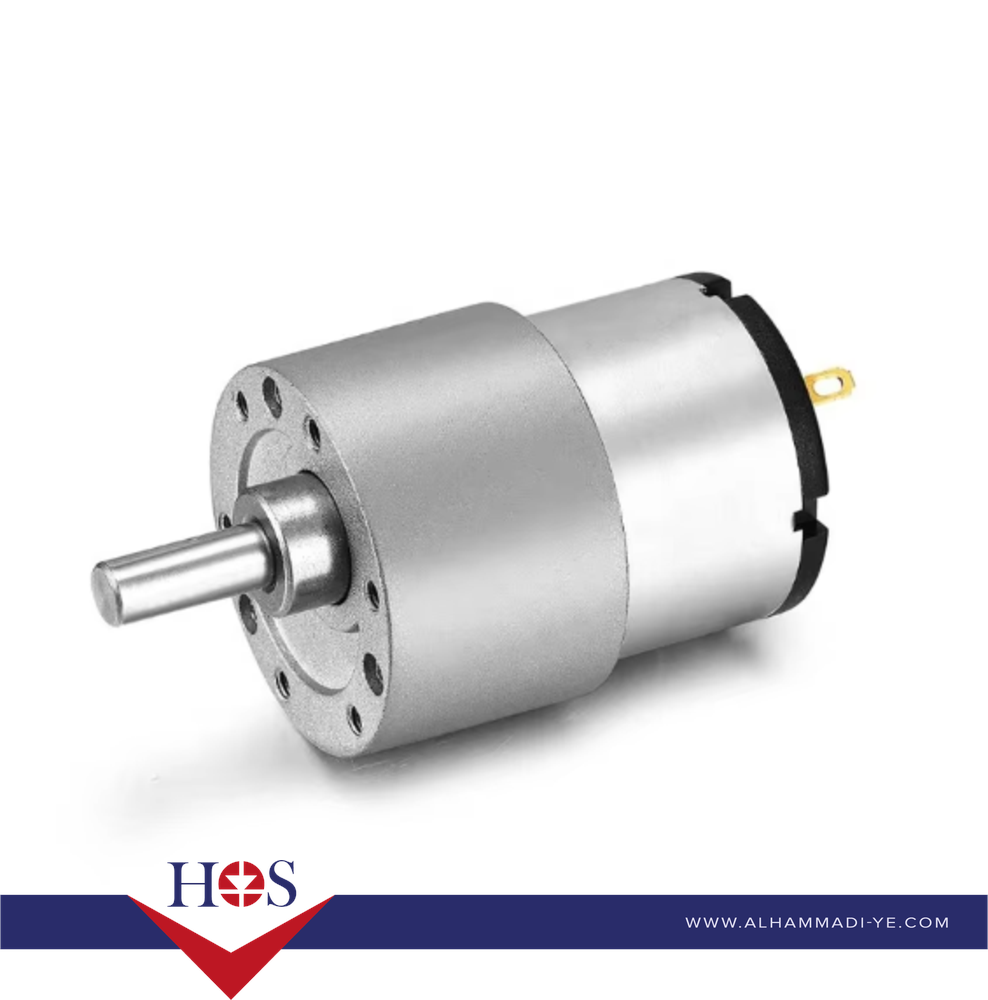

Model Series

JGB37-520

Rated Voltage

DC 12V

No-Load Speed

600 RPM

No-Load Current

Approximately 0.08A - 0.15A

Rated Load Speed

Approximately 420 RPM - 500 RPM (at typical rated torque)

Rated Load Current

Approximately 0.15A - 0.5A (at typical rated torque)

Rated Torque

Approximately 0.2 kg.cm - 0.35 kg.cm (higher than higher RPM versions due to higher reduction ratio)

Stall Torque

Approximately 0.8 kg.cm - 1.5 kg.cm (higher than higher RPM versions)

Stall Current

Approximately 0.8A - 1.8A

Rated Power

Typically 3.5W - 5W

Gearbox Type

All-metal spur gearbox (common)

Shaft Type

D-type shaft (common)

Shaft Diameter

6mm

Shaft Length

Typically 15mm - 21.5mm

Motor Diameter

37mm

Gearbox Length

Varies by reduction ratio (longer than for higher speeds)

Total Length

Varies depending on gearbox length

Weight

Approximately 150g - 200g

Rotation

CW/CCW (can be reversed by changing polarity)

Speed Regulation

Adjustable speed (with appropriate PWM controller)

Encoder Option

Often available with a Hall encoder for speed feedback

Operating Temperature

-10°C to +60°C (typical)
