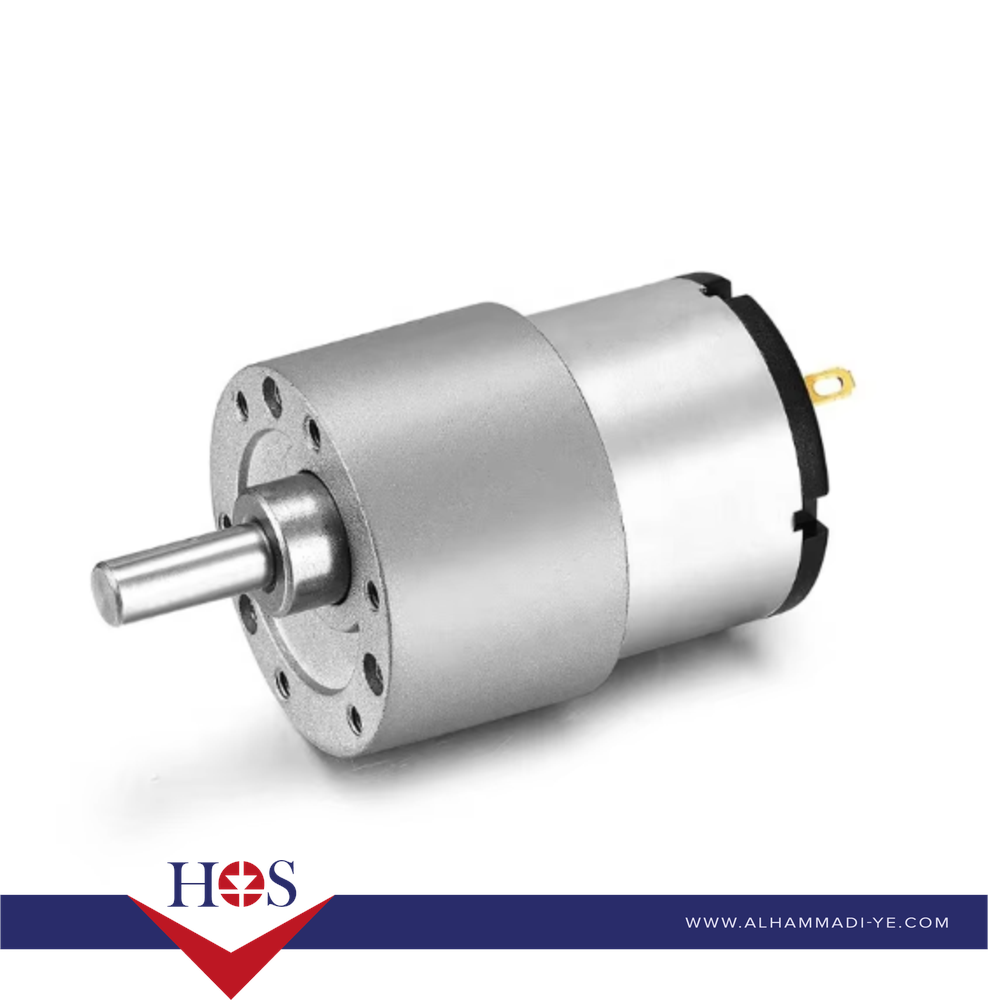

Model Series

JGB37-520

Rated Voltage

DC 24V

No-Load Speed

960 RPM

No-Load Current

Typically 0.05A - 0.08A (lower than 12V version due to higher resistance winding)

Rated Load Speed

Approximately 670 RPM - 800 RPM (at typical rated torque)

Rated Load Current

Approximately 0.1A - 0.3A (at typical rated torque)

Rated Torque

Approximately 0.1 kg.cm - 0.17 kg.cm (at 960 RPM version)

Stall Torque

Approximately 0.4 kg.cm - 0.6 kg.cm (at 960 RPM version)

Stall Current

Approximately 0.6A - 1.1A (lower than 12V version)

Rated Power

Typically 3.6W - 4.5W (can vary depending on specific gear ratio and efficiency)

Gearbox Type

All-metal spur gearbox (common)

Shaft Type

D-type shaft (common)

Shaft Diameter

6mm

Shaft Length

Typically 15mm - 21.5mm

Motor Diameter

37mm

Gearbox Length

Varies by reduction ratio (e.g., 19mm for ratios around 6:1 to 7:1)

Total Length

Varies depending on gearbox length

Weight

Approximately 150g - 190g

Rotation

CW/CCW (can be reversed by changing polarity)

Speed Regulation

Adjustable speed (with appropriate PWM controller)

Encoder Option

Often available with a Hall encoder for speed feedback

Operating Temperature

-10°C to +60°C (typical)
