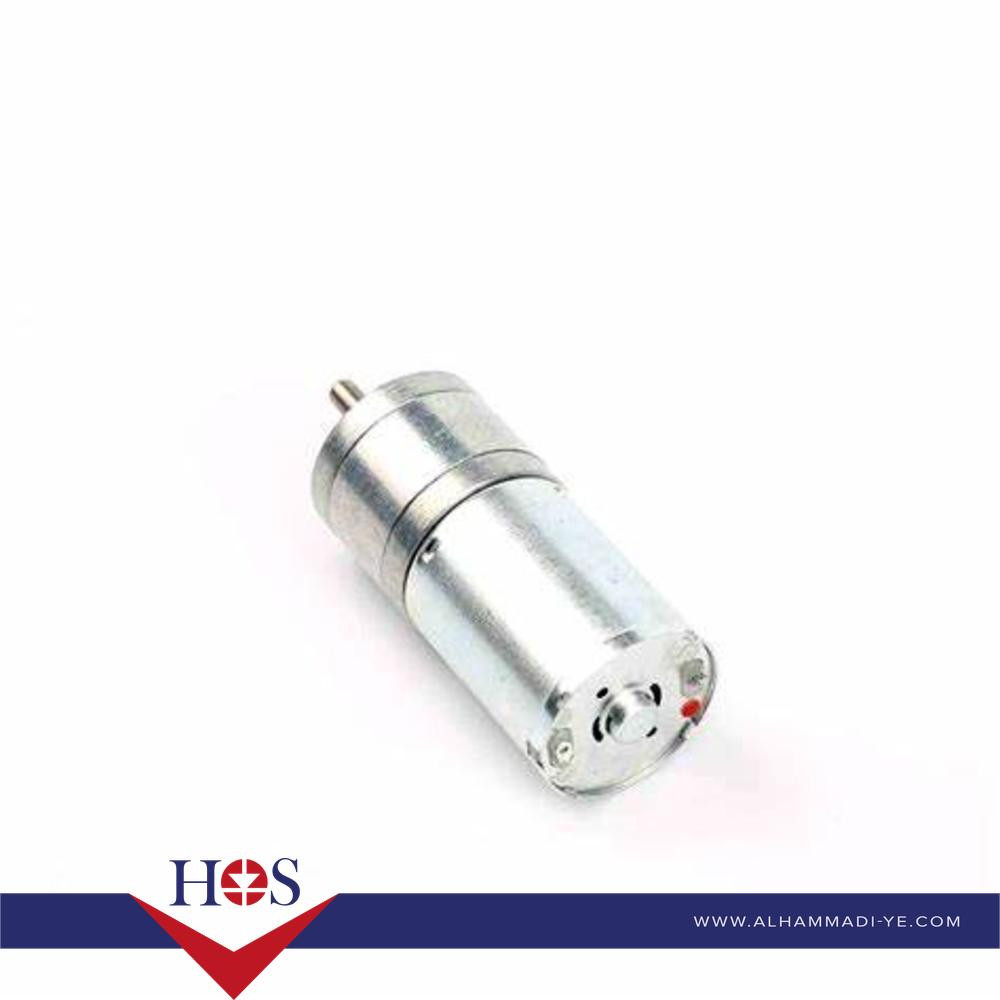

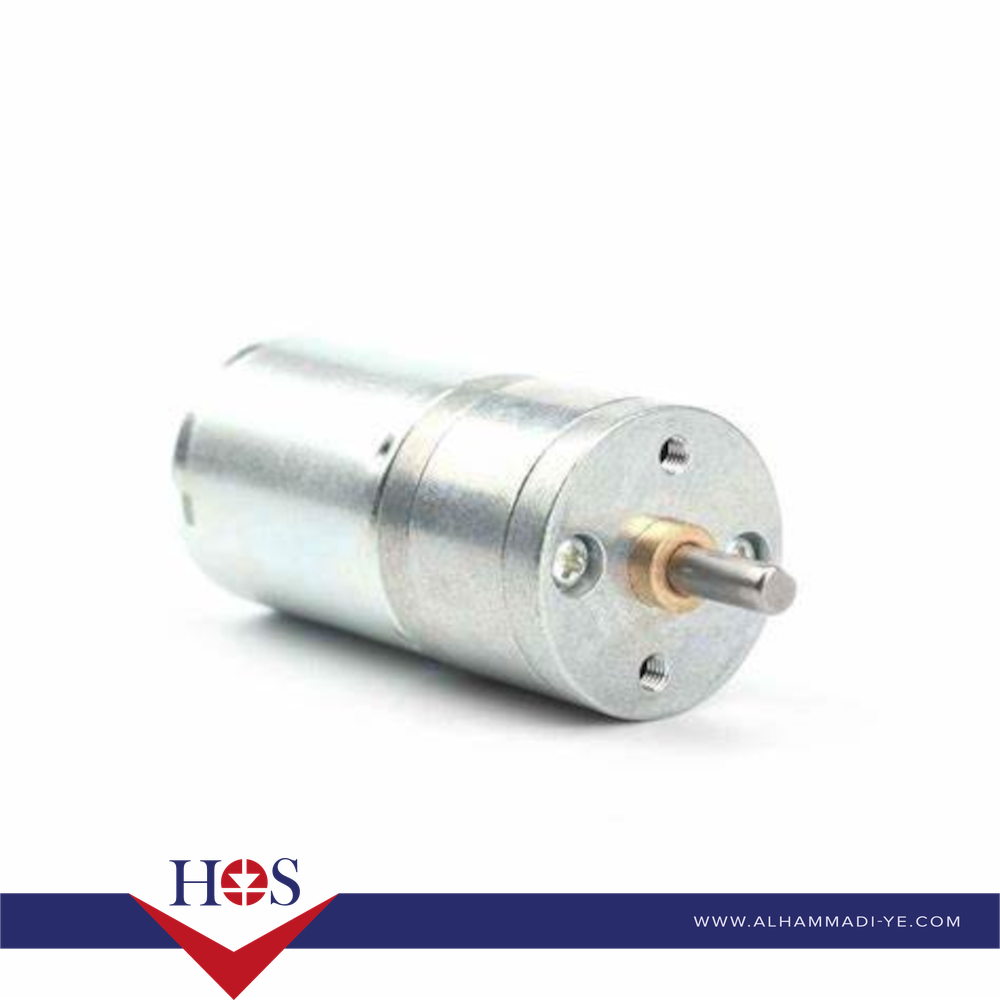

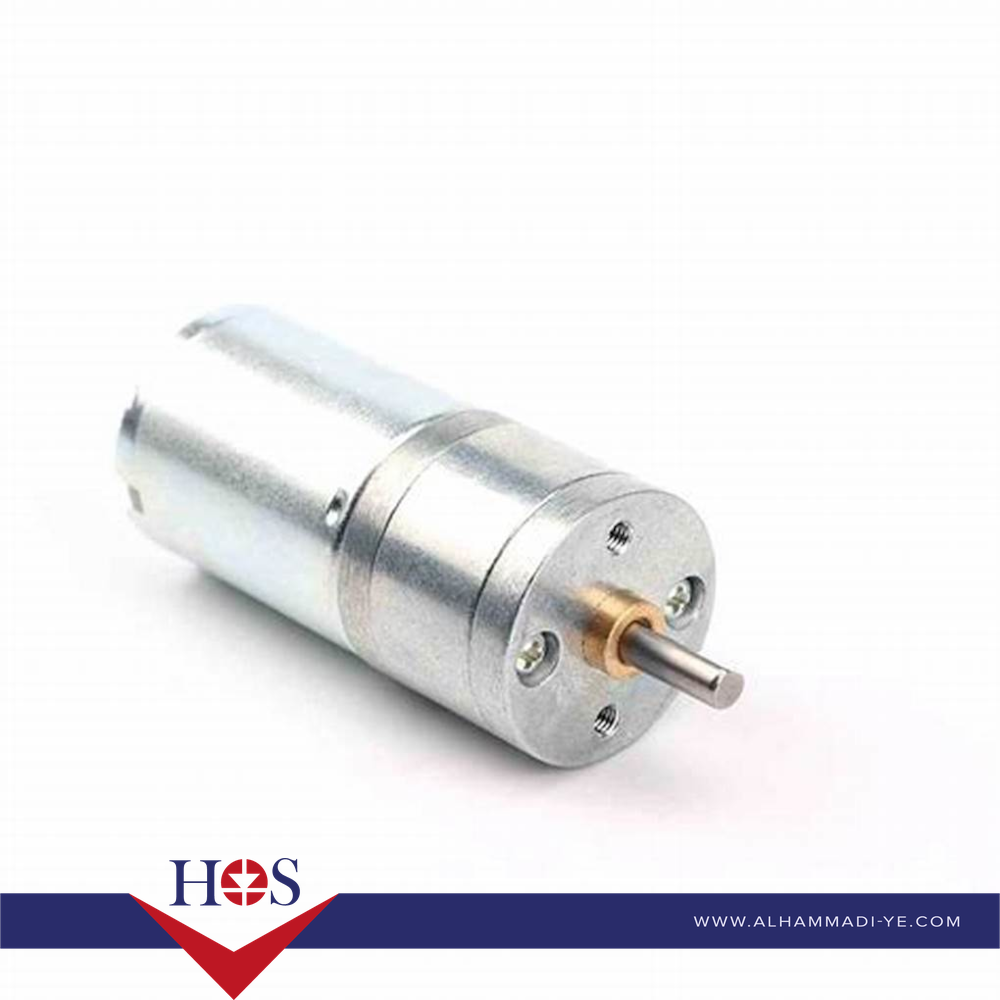

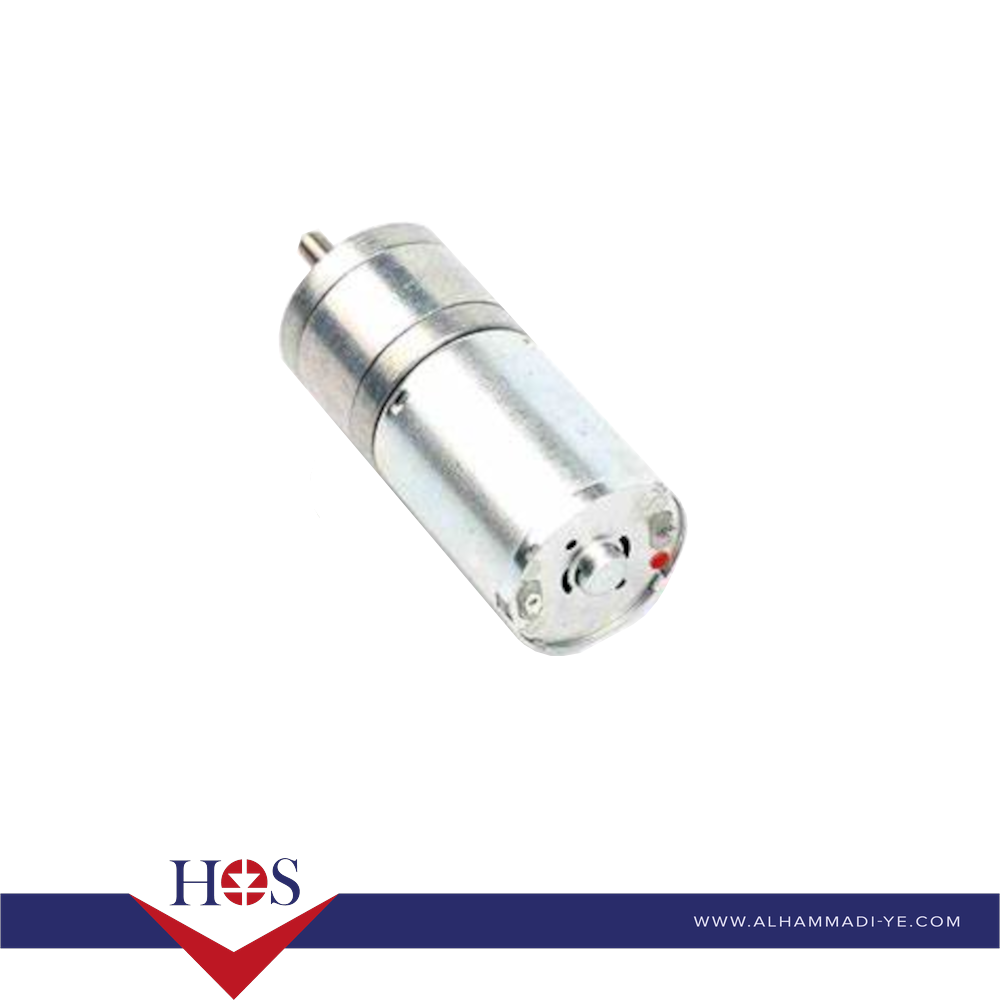

Model Series

37GB-3530

Rated Voltage

DC 12V

No-Load Speed

1000 RPM (revolutions per minute)

No-Load Current

Typically 0.1A - 0.2A

Rated Load Speed

Approximately 700 RPM - 850 RPM (at typical rated torque)

Rated Load Current

Approximately 0.2A - 0.7A (at typical rated torque)

Rated Torque

Approximately 0.1 kg.cm - 0.2 kg.cm (or 10-20 mN.m)

Stall Torque

Approximately 0.5 kg.cm - 0.8 kg.cm (or 50-80 mN.m)

Stall Current

Approximately 1.5A - 3.0A

Rated Power

Typically 4W - 6W

Gearbox Type

All-metal spur gearbox (common for durability)

Shaft Type

D-type shaft (common for secure coupling)

Shaft Diameter

6mm

Shaft Length

Typically 15mm - 21.5mm

Motor Diameter

37mm

Gearbox Length

Varies by reduction ratio; shorter for higher speeds (e.g., around 19mm - 27mm)

Total Length

Varies depending on gearbox length (e.g., around 70mm - 85mm including motor)

Weight

Approximately 180g - 250g

Rotation

CW/CCW (reversible by changing input polarity)

Speed Regulation

Adjustable speed (commonly used with PWM controllers)

Encoder Option

Often available with a Hall encoder for precise speed and position feedback

Operating Temperature

-10°C to +60°C (typical range)
