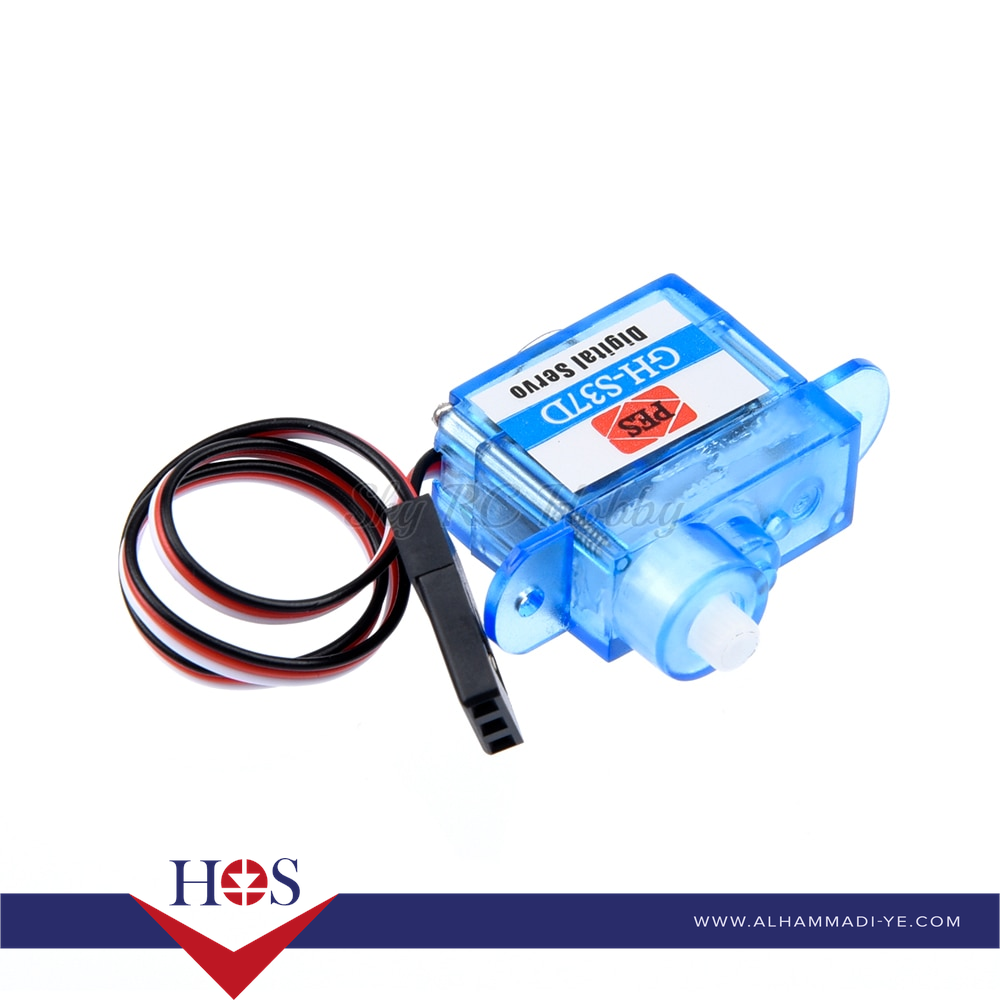

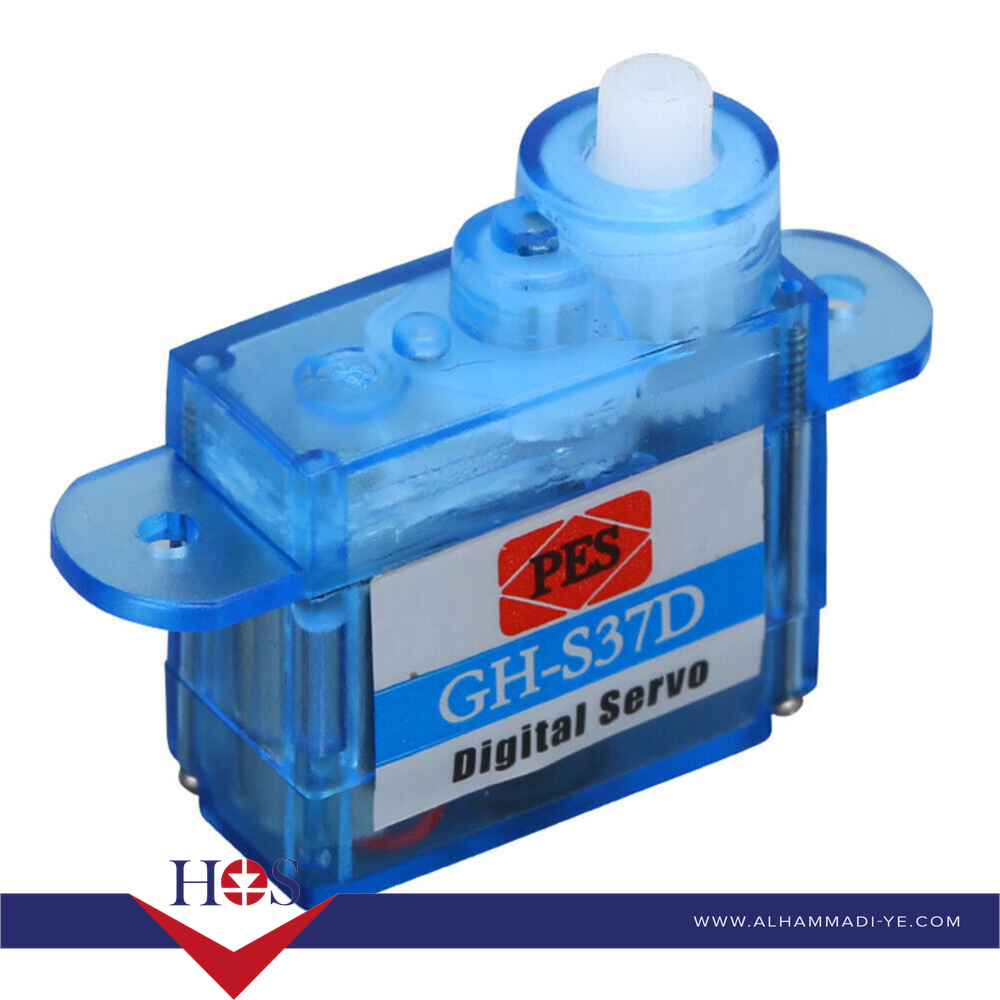

Micro servo 3.7G GH-S37D 90 degree سرفو ميكرو 90 درجة
|
Specification |
|
|
Model |
GH-S37D |
|
Weight |
3.7 grams |
|
Operating Voltage |
3.0V - 4.8V DC |
|
Stall Current |
350mA (@4.8V) |
|
No-Load Current |
50mA (@4.8V) |
|
Rotation Angle |
90° (±45° from center) |
|
Operating Speed |
0.08 sec/60° (@4.8V) |
|
Stall Torque |
0.5kg·cm (@4.8V) |
|
Gear Material |
Nylon |
|
Motor Type |
Coreless motor |
|
Connector Type |
3-pin JST 1.25mm (Signal, VCC,
GND) |
|
Cable Length |
150mm |
|
Dimensions (L×W×H) |
21.5×10×20mm |
|
Operating Temp |
-15°C to +60°C |
|
PWM Frequency |
50Hz (20ms period) |
|
Pulse Width Range |
500-1500μS (500μS=0°, 1500μS=90°) |
