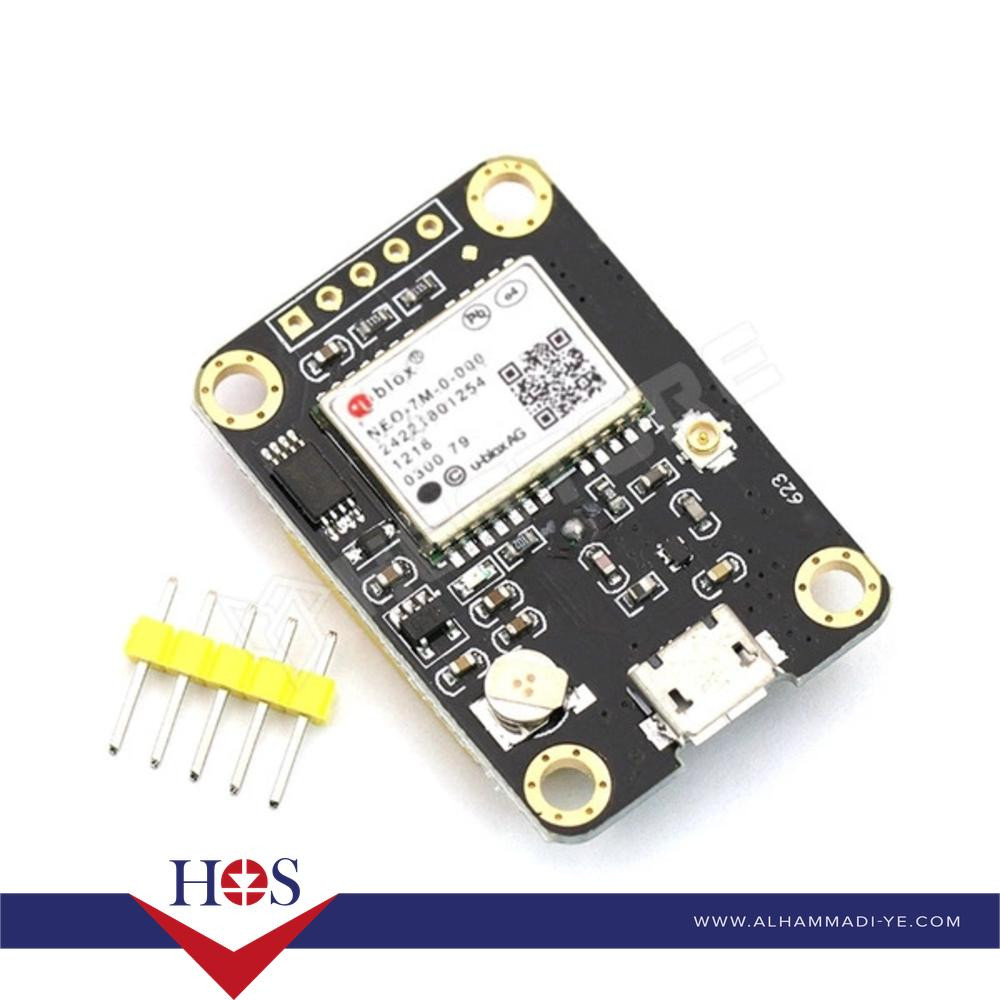

Ublox NEO-7M-0-000 GPS Module with EEPROM For C/AeroQuad with Antenna for NEO-7M 7N APM2.5 Flight Control شيلد
|
Specification |
|
|
Model |
Ublox NEO-7M-0-000 |
|
GPS Chipset |
u-blox 7 (ROM-based) |
|
GPS Performance |
56-channel (u-blox 7 engine) – Supports GPS &
GLONASS (configurable) |
|
Update Rate |
Up to 5 Hz (configurable) |
|
Position Accuracy |
2.5 m (GPS) / 5 m (GLONASS) |
|
Velocity Accuracy |
0.1 m/s |
|
Time Accuracy |
60 ns (GPS time) |
|
Sensitivity |
-161 dBm (Tracking) / -148 dBm (Acquisition) |
|
Startup Times |
Cold start: 26s |
|
Interface |
UART (Default: 9600 baud, configurable) |
|
Voltage Supply |
3.0V – 5.0V DC |
|
Power Consumption |
~100 mA (during tracking) |
|
EEPROM |
Yes (for configuration storage) |
|
Antenna Compatibility |
Active or passive antenna (50Ω impedance) |
|
Mounting |
4x mounting holes (for secure installation) |
|
Dimensions |
25.5 x 25.5 x 7.5 mm |
|
Operating Temperature |
-40°C to +85°C |
|
Applications |
Drones (APM 2.5 Flight Control), UAVs, Robotics,
Navigation Systems |
