Model Number

AD16-22AVHz

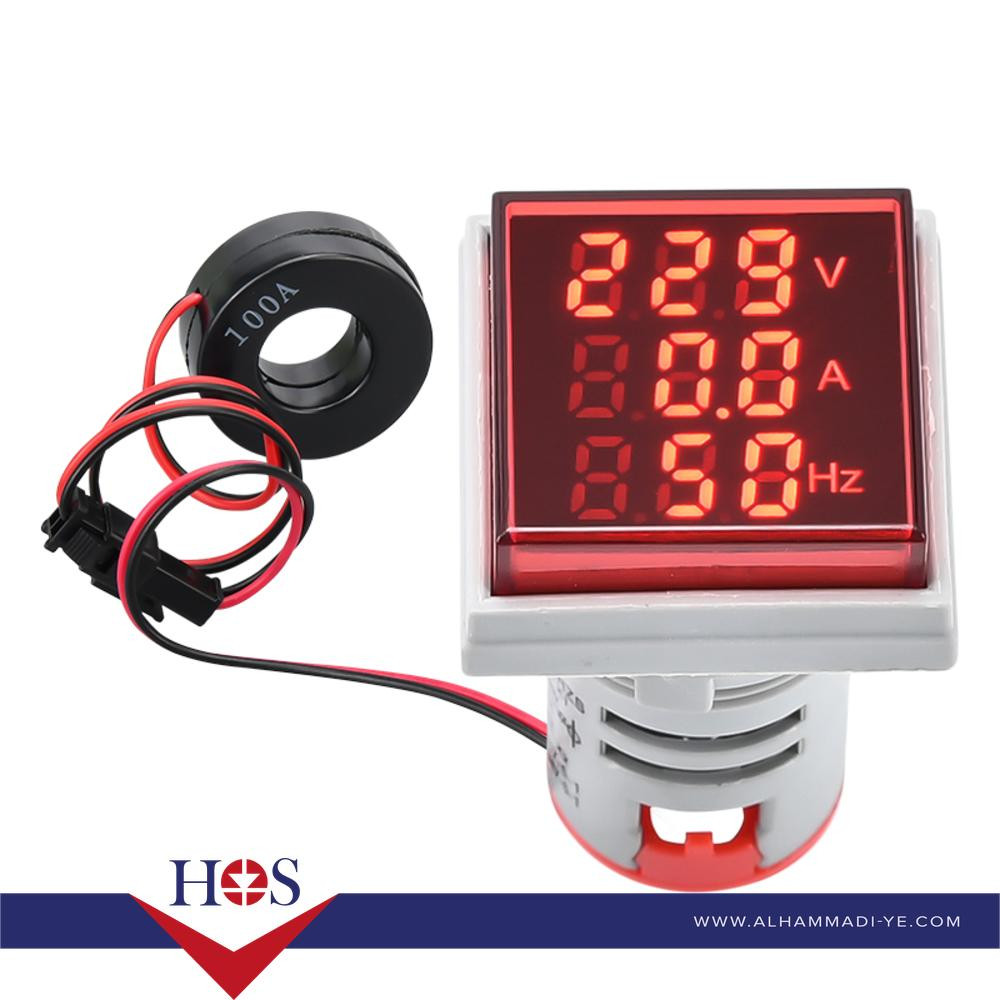

Display Type

Triple-function LED (Voltage/Current/Frequency)

Color

Bright Red (Alert/Warning)

Measurement Ranges

• Voltage: 50-500V AC

• Current: 0-100A AC (via CT)

• Frequency: 0-100Hz

Accuracy

±1.5% (V), ±2% (A), ±0.5Hz

Input Method

• Voltage: Direct Connection

• Current: Through 100A/5A CT (Included)

Power Supply

Self-powered from measured circuit

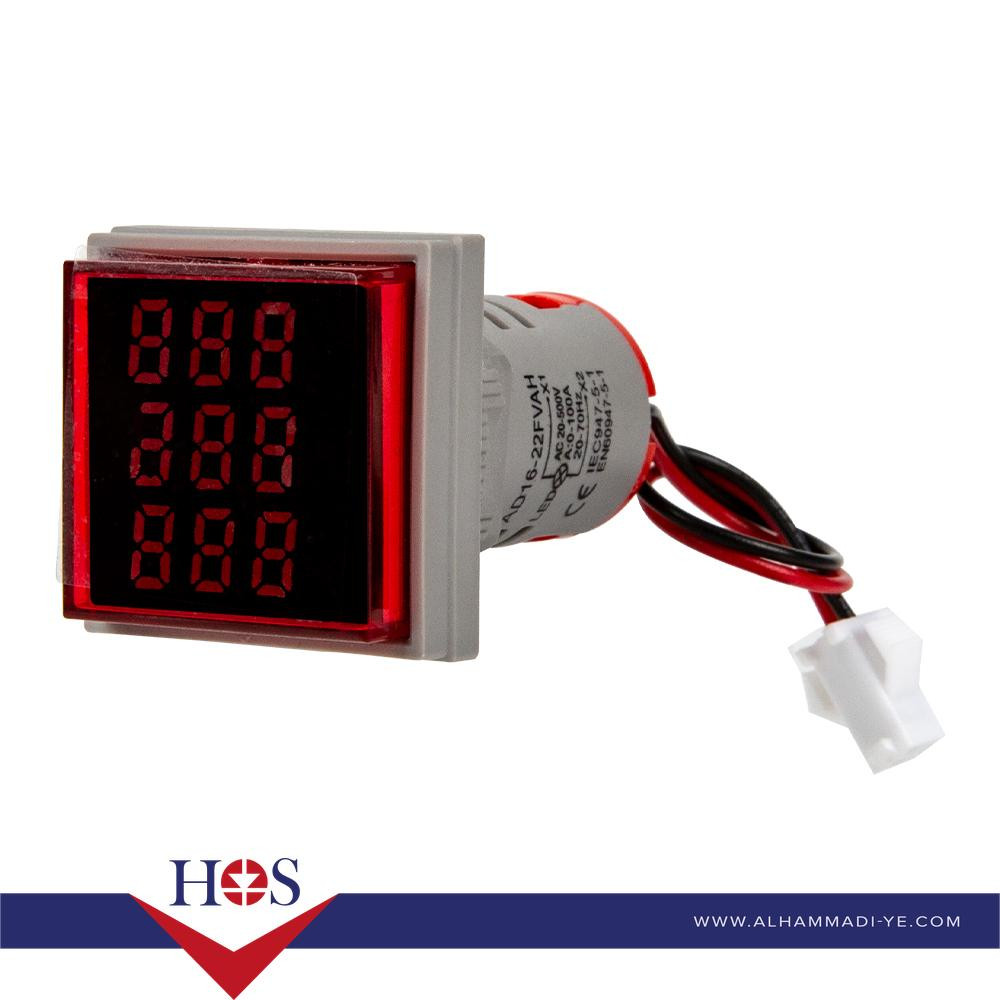

Display

3x 0.5" 7-segment LED

Refresh Rate

2 updates/second

Housing Material

Flame-retardant ABS (UL94 V-0)

Lens Material

Polycarbonate (Anti-glare)

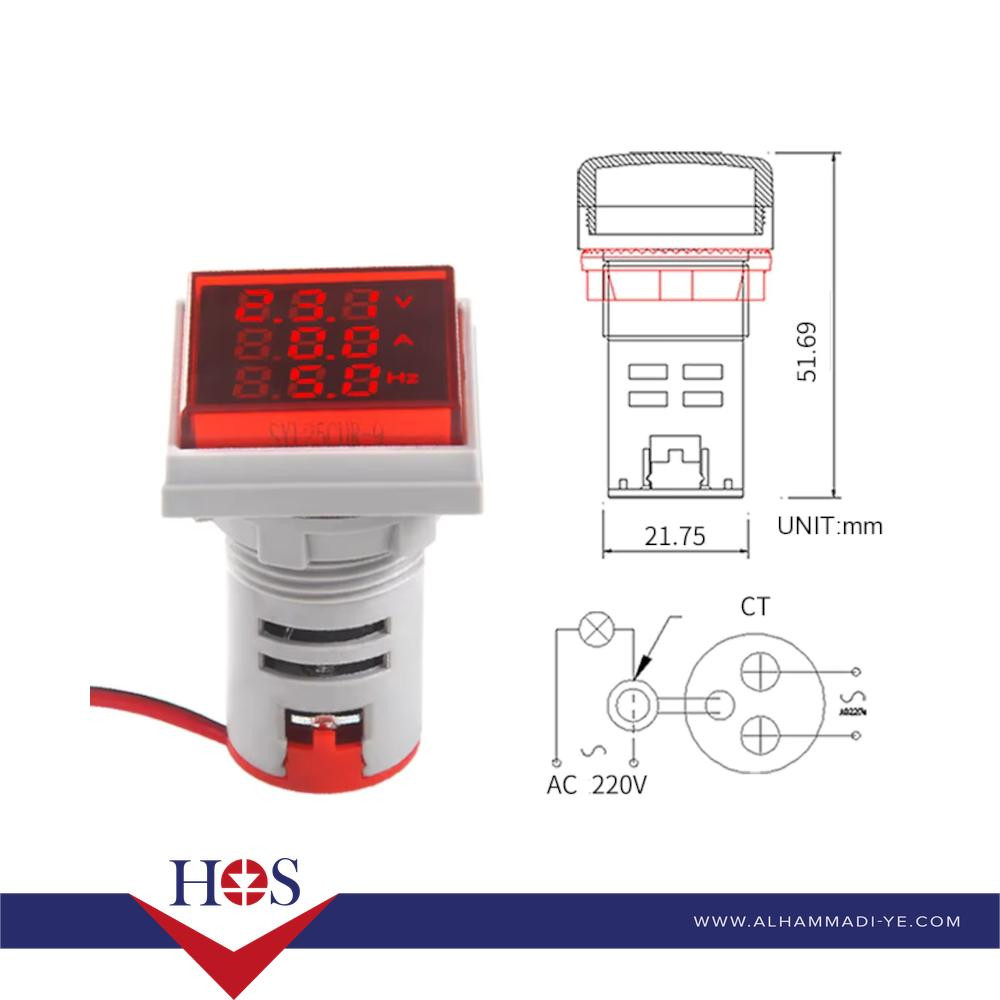

Mounting

22mm square panel cutout

Operating Temp

-20°C to +60°C

IP Rating

IP40 (Front panel)

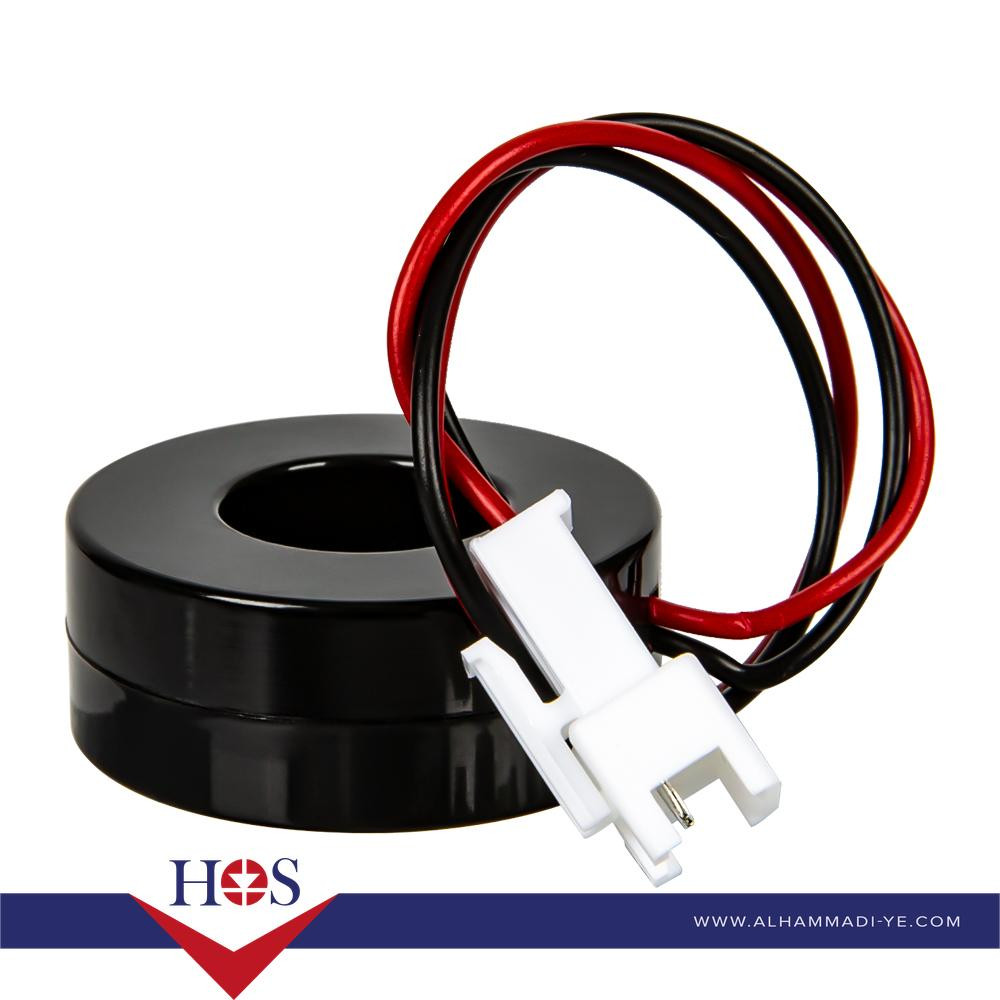

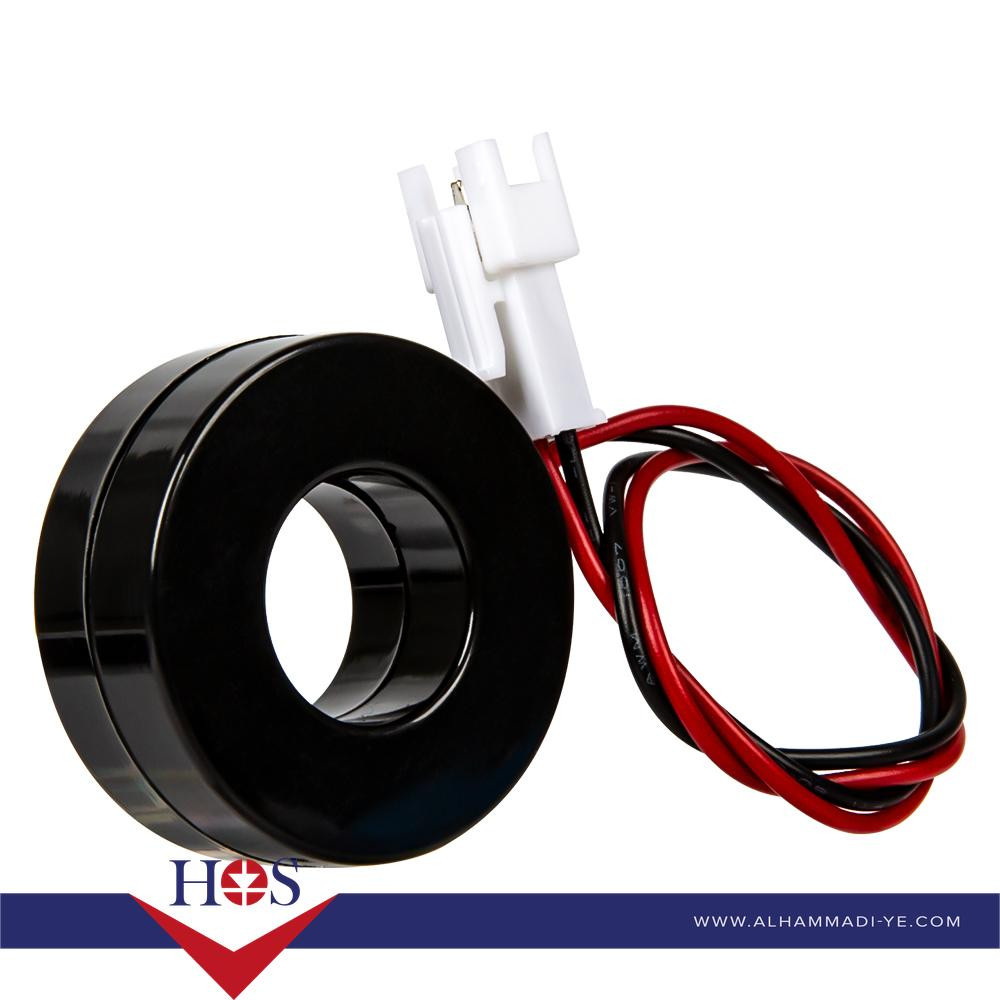

Included Transformer

100A/5A Current Transformer (CT)

MOQ

10 units

Certifications

CE, RoHS
