Model Number

AD16-22AVHz-G

Display Type

Voltage/Current/Frequency (3-in-1)

Color

Green (525nm, "Normal Operation" indication)

Measurement Ranges

• Voltage: 50-500V AC ±1%

• Current: 0-100A AC ±1.5%

• Frequency: 0-100Hz ±0.5Hz

Input Method

• Voltage: Direct Input

• Current: Via included 100A/5A CT

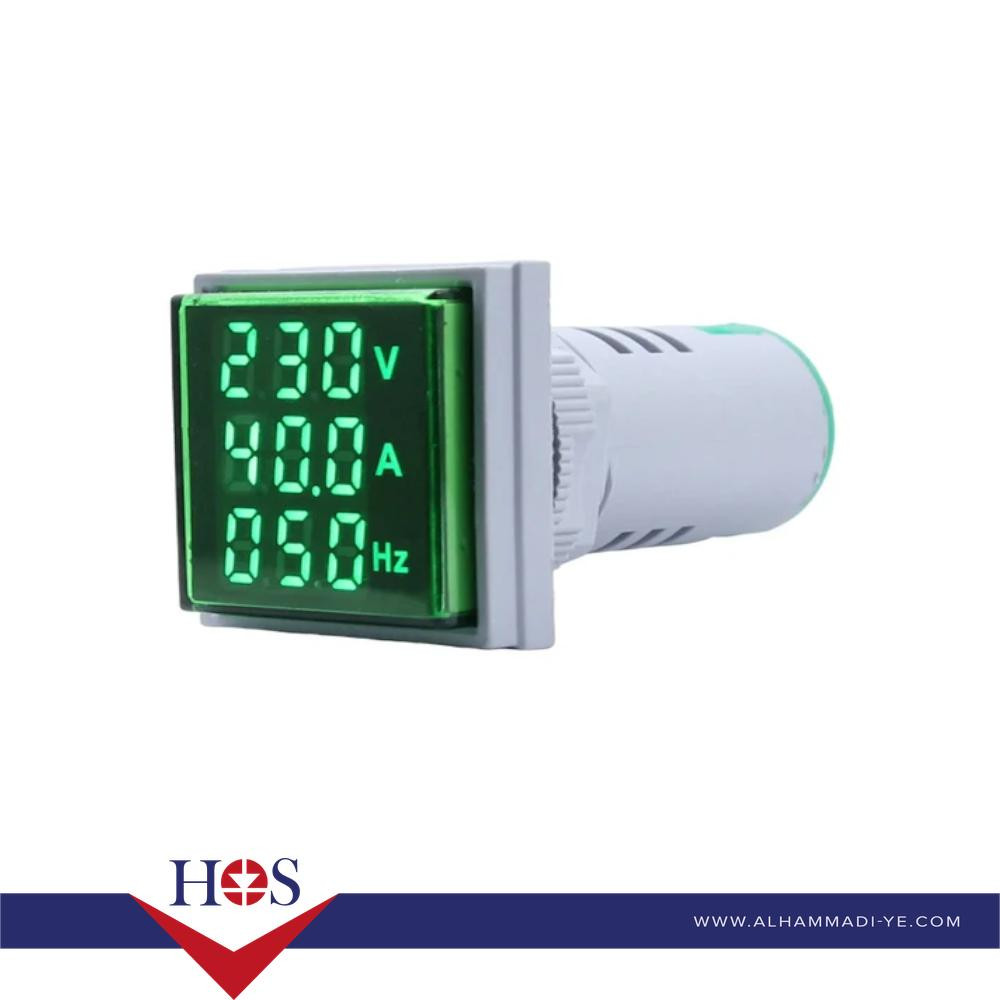

Display

3x 0.56" High-brightness 7-segment LED

Refresh Rate

3 updates/second

Housing Material

Flame-retardant PBT (UL94 V-0)

Lens Material

Polycarbonate (V0-rated)

Mounting

22mm square panel cutout

Protection Rating

IP65 front/IP40 rear

Operating Temp

-25°C to +70°C

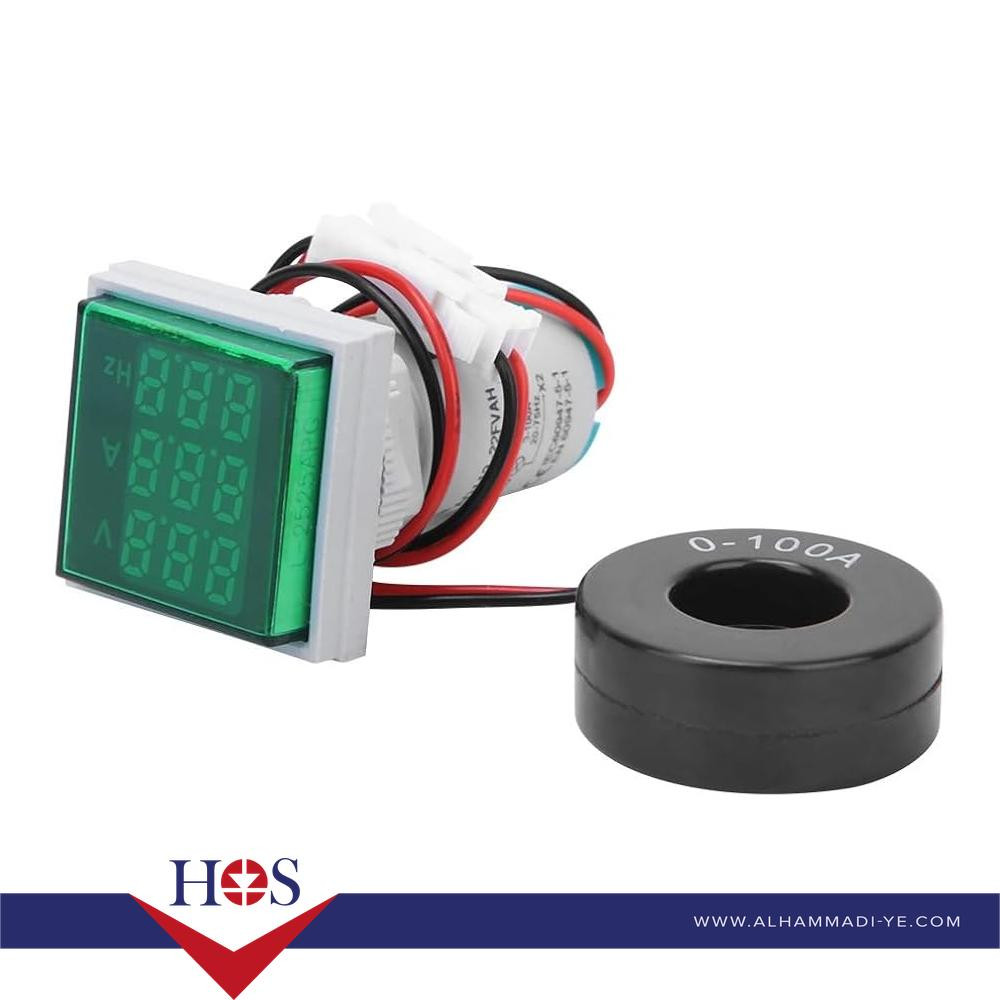

Included Transformer

100A/5A Split-Core CT (Class 1.0 accuracy)

MOQ

10 units

Certifications

CE, RoHS, EN 61010-1
