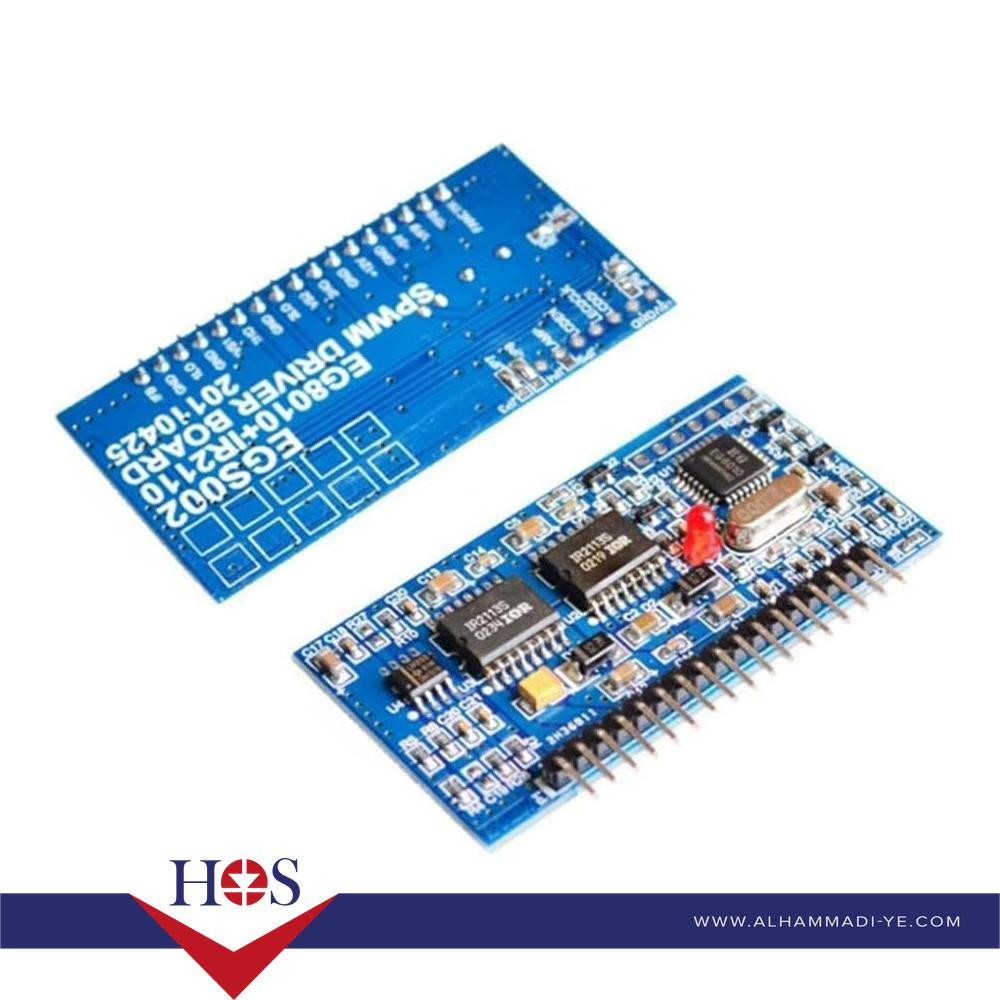

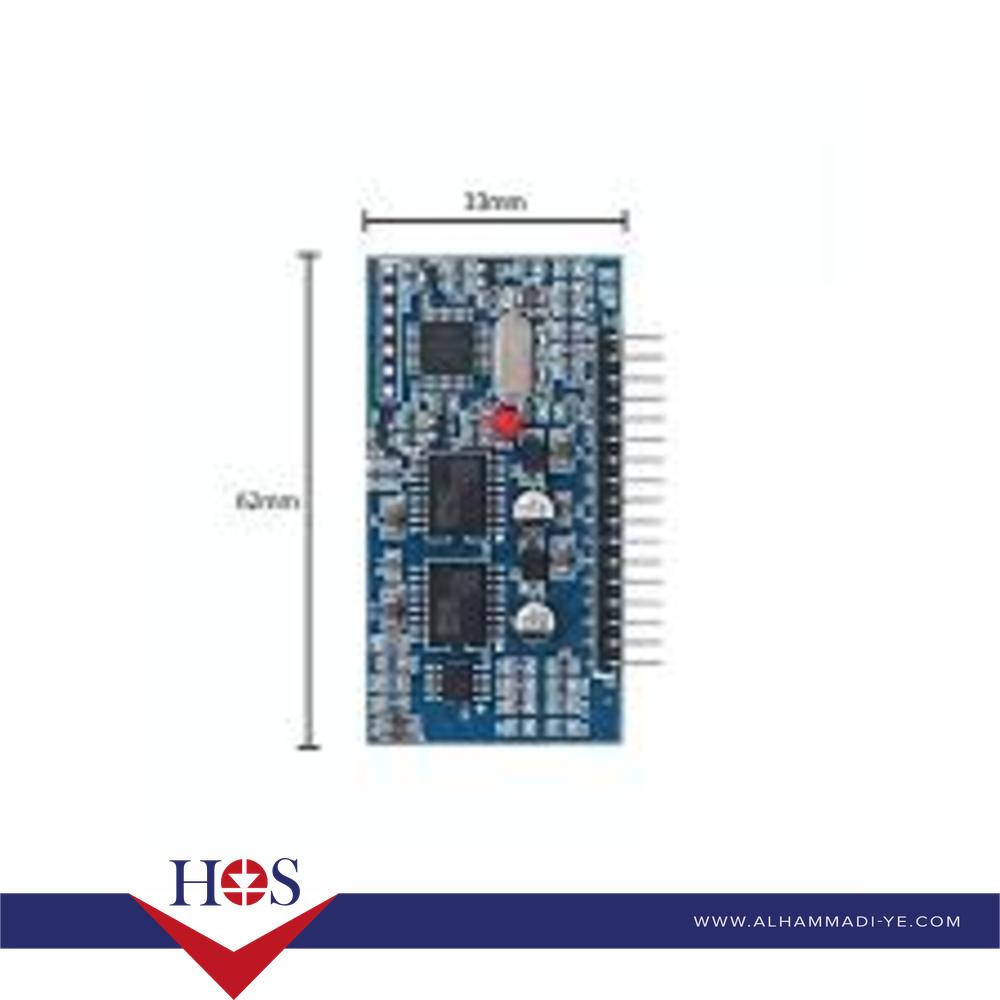

EGS002 EG8010+IR2110 SPWM Driver Board now is EGS002B كرت موجة نقية
|
Specification |
|
|
Control IC |
EG8010 (SPWM generator) + IR2110
(gate driver) |
|
Input Voltage |
DC 12V–24V (Logic power supply,
typically 12V) |
|
Output Frequency |
50Hz/60Hz (Adjustable via jumper
or EG8010 settings) |
|
SPWM Carrier Freq. |
20kHz (Default, reduces audible
noise in transformers) |
|
Output Voltage |
AC 110V/220V (Depends on H-bridge
and transformer) |
|
Gate Drive Output |
4-channel (For H-bridge
MOSFETs/IGBTs, up to 500kHz switching) |
|
Gate Drive Voltage |
10V–20V (IR2110 bootstrap,
supports high-side drive) |
|
Protections |
- Overcurrent (OC) via shunt
resistor - Undervoltage Lockout (UVLO) |
|
Cooling |
Passive (no heatsink required for
driver board) |
|
Interface |
- Potentiometer for frequency
adjustment - Jumper for 50Hz/60Hz |
|
Dimensions |
Approx. 65mm × 45mm (Standard
EGS002B size) |
