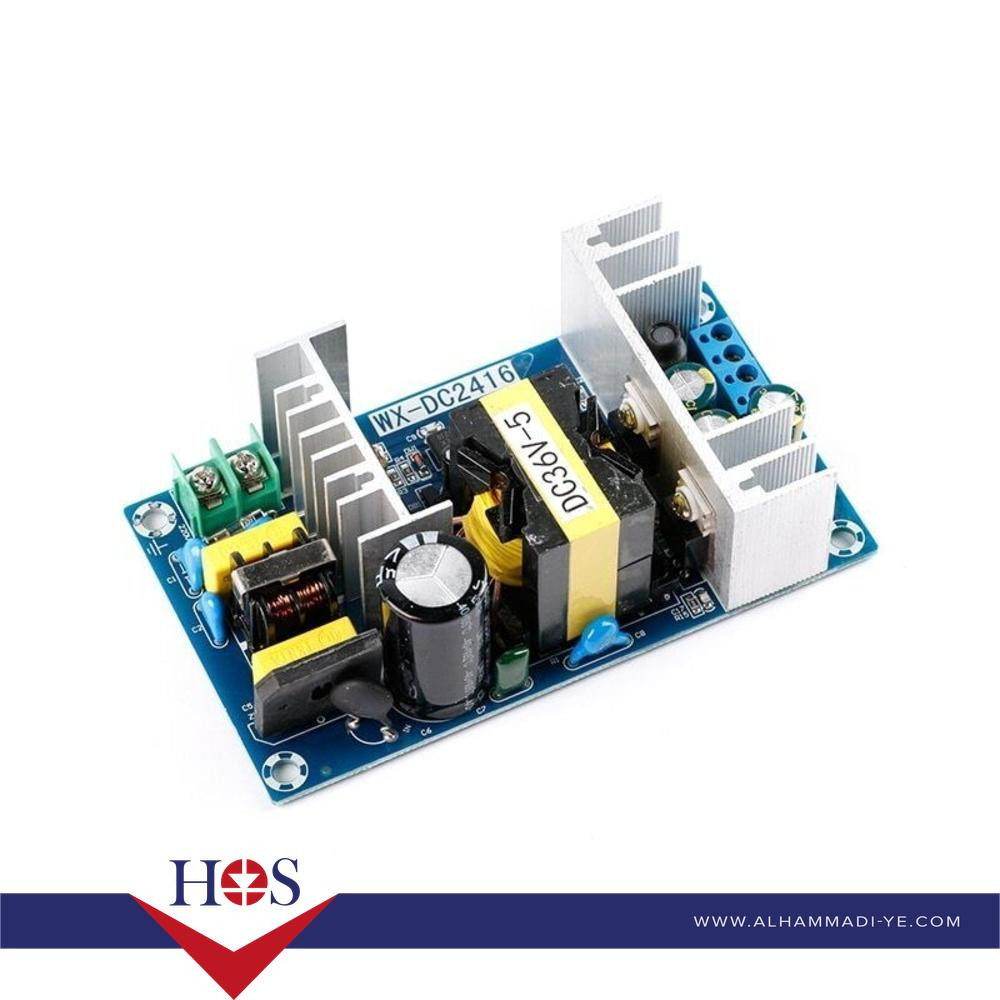

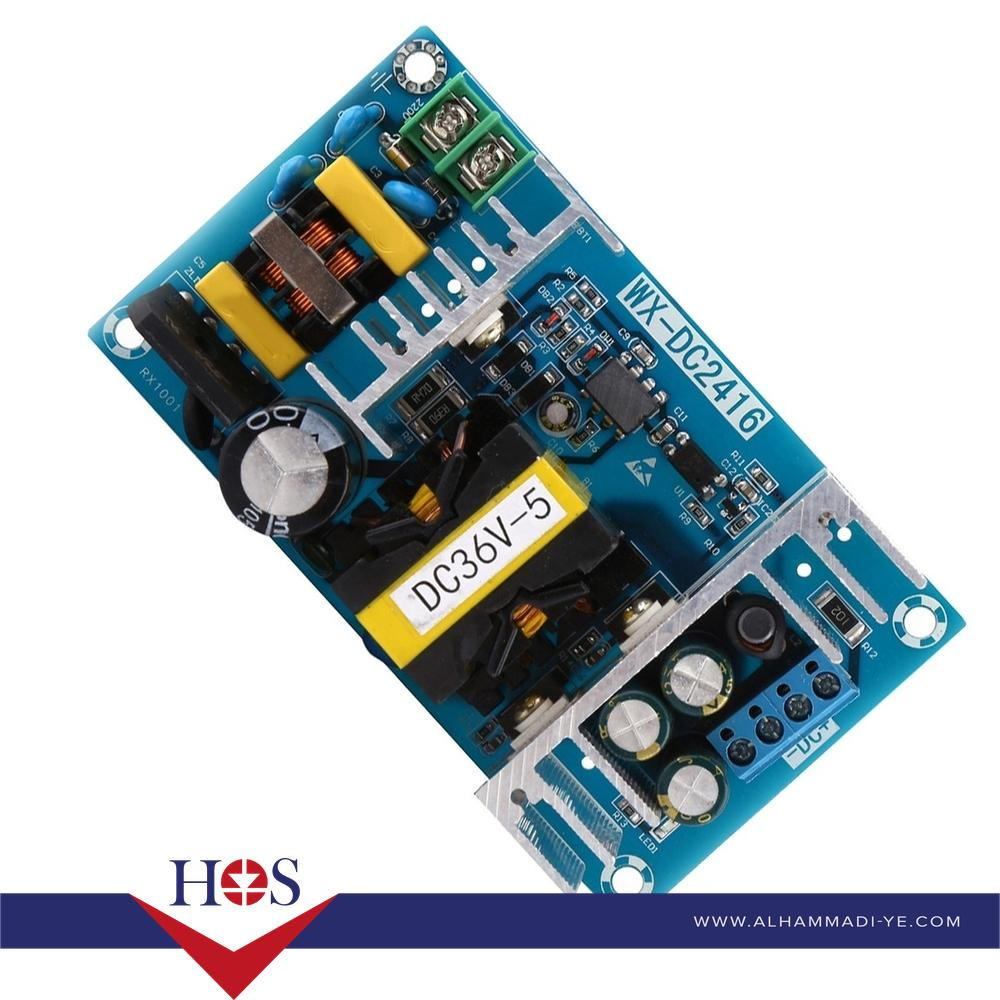

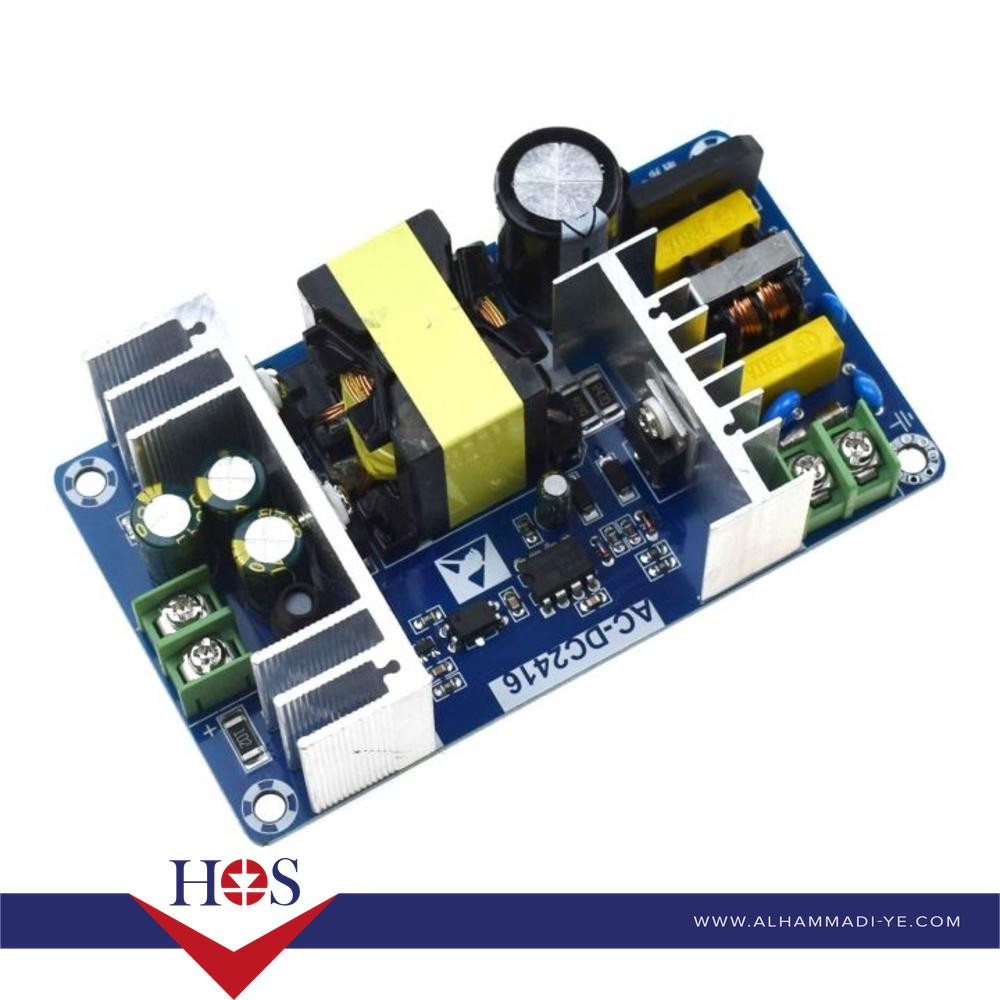

AC-DC Power Supply Module 36V 5A 180W Switching Power Supply Board برده باور
|
Specification |
|
|
Input Voltage |
AC 85-265V (50/60Hz) |
|
Output Voltage |
DC 36V (±1%) |
|
Output Current |
5A (continuous) |
|
Rated Power |
180W |
|
Conversion Efficiency |
≥85%
(typical) |
|
Voltage Adjustment |
33-39V (via potentiometer) |
|
Ripple & Noise |
<150mVp-p (max) |
|
Load Regulation |
±2% |
|
Line Regulation |
±1% |
|
Protections |
Overload/Short-circuit/Over-voltage |
|
Cooling Method |
Natural convection + heatsink |
|
Operating Temp |
-30°C to +70°C |
|
Storage Temp |
-40°C to +85°C |
|
Dimensions |
115mm × 55mm × 35mm |
|
Weight |
~300g |
