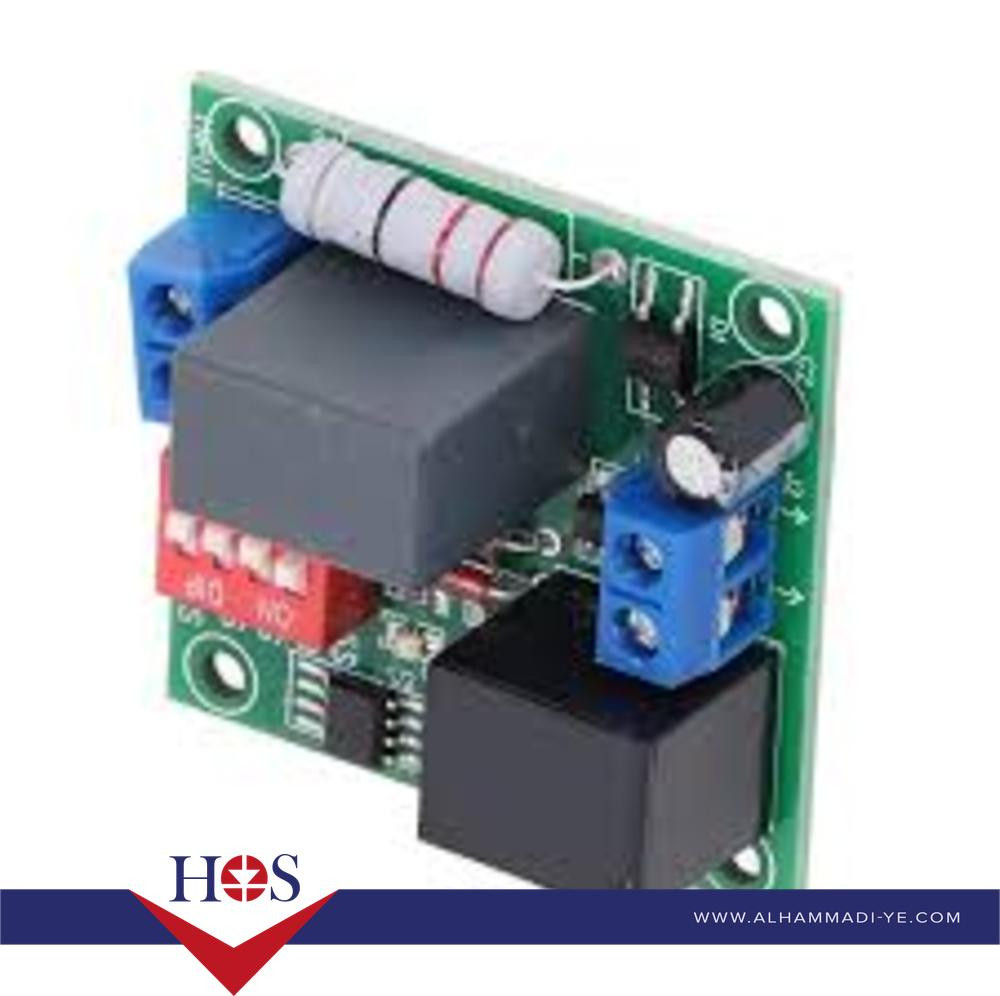

Device Power-on Automatic Boot Module 220V Wide Voltage RD01AC
|
Specification |
|
|
Input Voltage |
AC 90-264V (50/60Hz) |
|
Output Voltage |
DC 5V/12V/24V (configurable) |
|
Rated Power |
10W (max) |
|
Output Current |
5V: 2A, 12V: 0.8A, 24V: 0.4A |
|
Control Method |
Zero-cross detection |
|
Startup Delay |
0.5-60s adjustable |
|
Operation Mode |
Latching relay (no holding
current) |
|
Relay Contacts |
10A/250VAC, 10A/30VDC |
|
Isolation Voltage |
4000V AC (input-output) |
|
Power Consumption |
<0.5W standby |
|
Indicator LEDs |
Power (red), Status (green) |
|
Operating Temp |
-30°C to +70°C |
|
Dimensions |
62mm × 38mm × 22mm |
|
Certifications |
CE, RoHS, UL94 V-0 |
