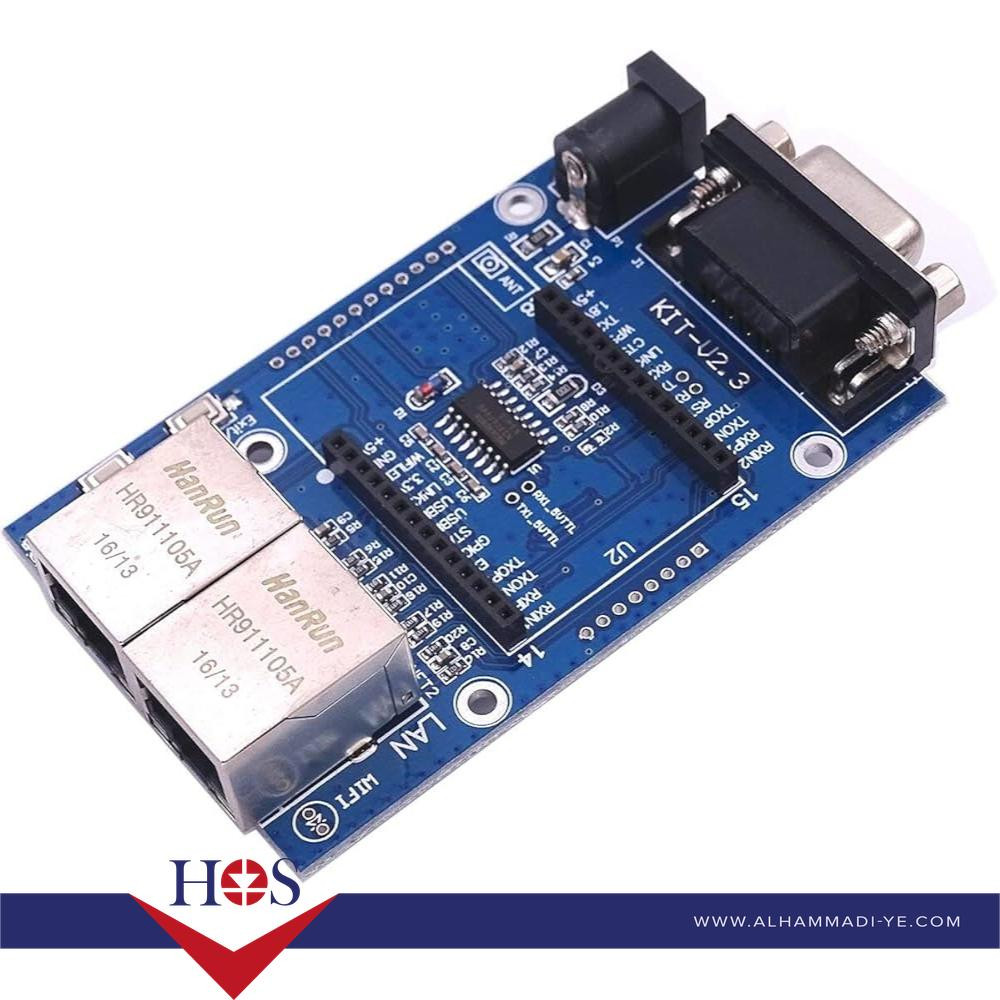

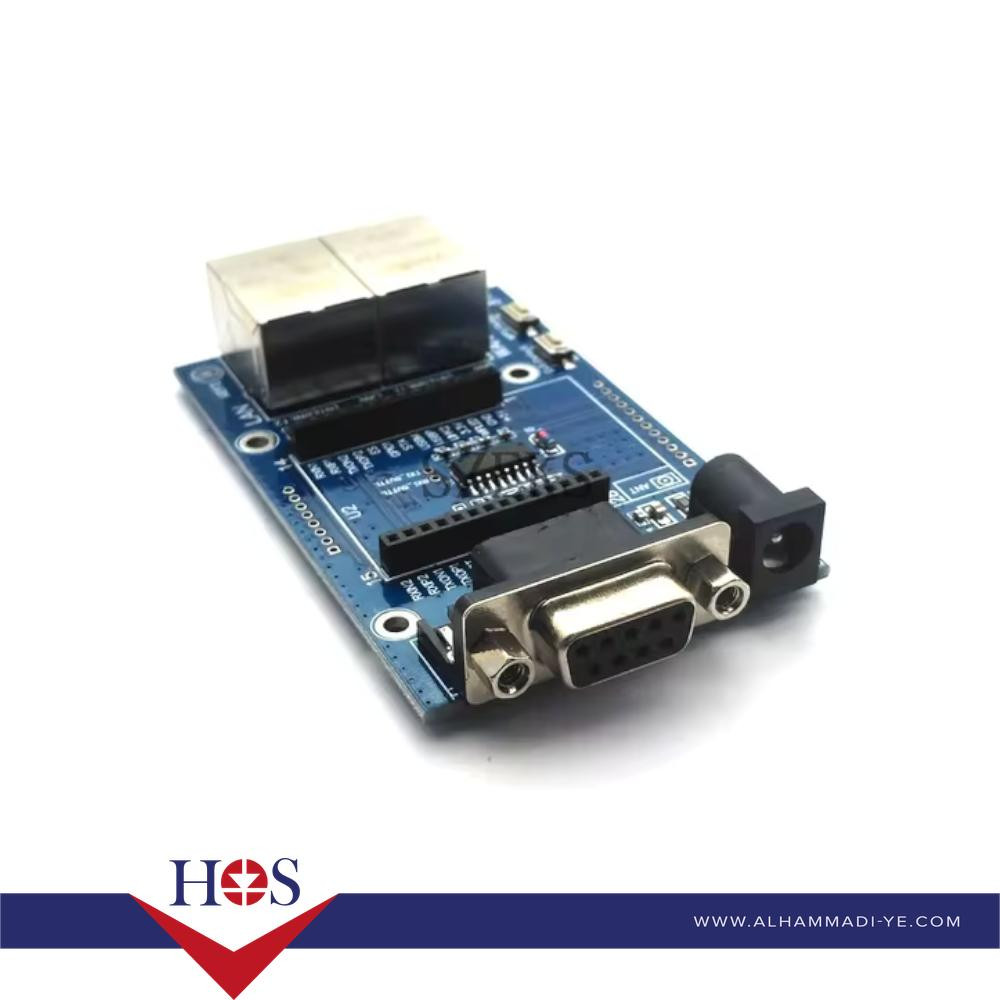

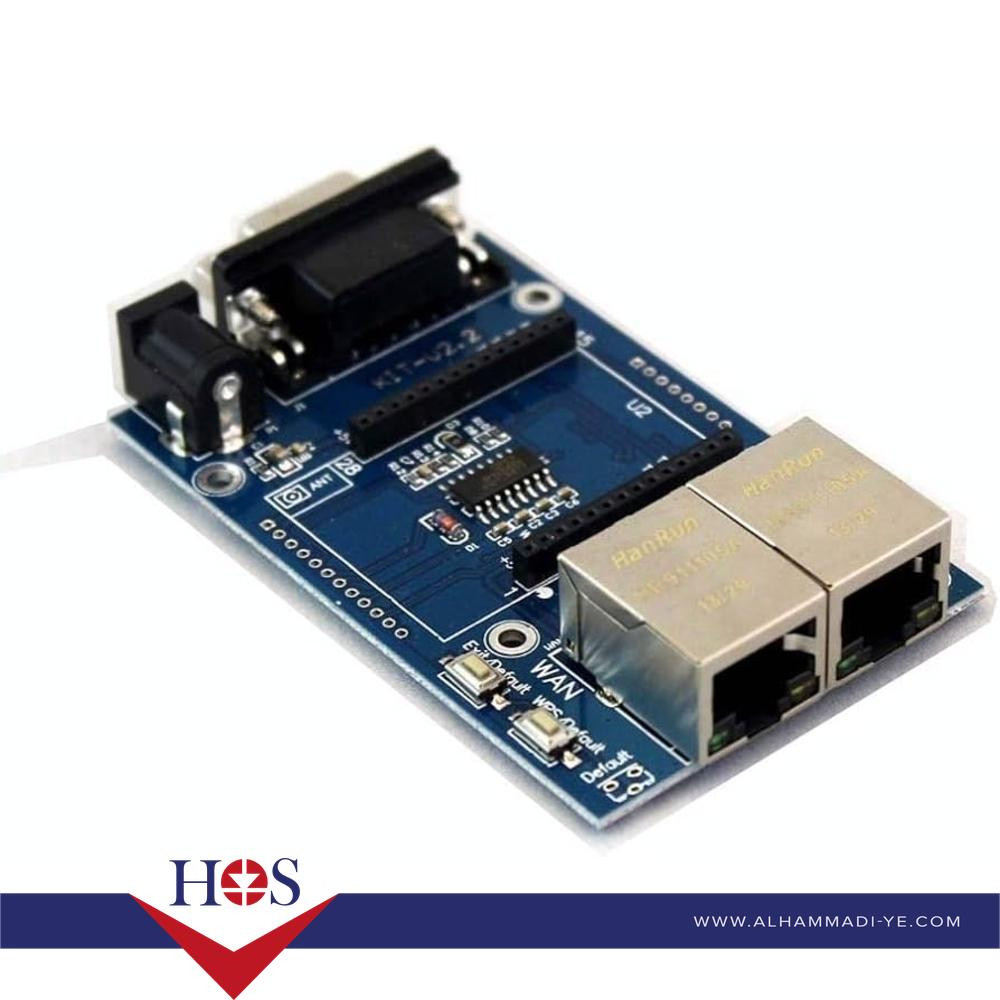

Serial-port Uart-WIFI Module, SCM WIFI and HLK-RM04 Simple Testing Board - RS232 تحويله من ايثرنت الي
|
Specification |
|
|
Module Type |
Serial-to-WiFi (UART to WiFi
converter) |
|
WiFi Standards |
IEEE 802.11b/g/n (2.4GHz) |
|
Interface |
UART (TTL Serial) |
|
Baud Rate |
1200bps ~ 115200bps (Adjustable) |
|
Operating Voltage |
3.3V DC (±10%) |
|
Current Consumption |
~200mA (Peak during transmission) |
|
Transmit Power |
+18dBm (Max) |
|
Security |
WEP, WPA-PSK, WPA2-PSK |
|
Operating Modes |
TCP Client/Server, UDP, HTTP, AP
Mode (Hotspot) |
|
Antenna |
Built-in PCB antenna / External
antenna (IPEX connector) |
|
Dimensions |
Approx. 28mm × 18mm |
|
Operating Temp. |
-20°C to +70°C |
|
Firmware |
Customizable (AT commands or Lua
scripting) |
