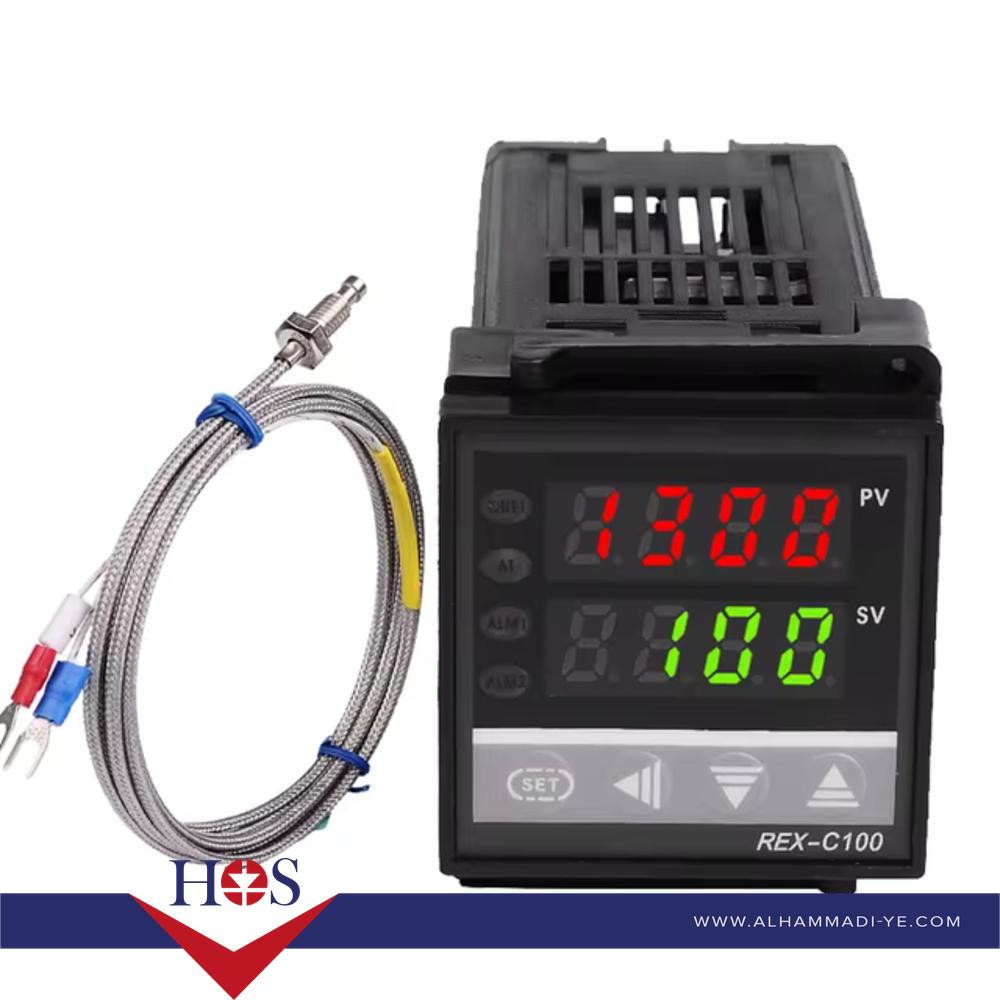

Model Number

REX-C100

Input Voltage

100-240 VAC (Standard)

Output Type

SSR (Solid State Relay) 12V Output (also available with Relay, 4-20mA, or Triac)

Control Method

PID Control (including ON/OFF, step-type PID, and continuous PID), Self-tuning

Input Types

Universal Input: <br> - Thermocouple (TC): K, J, S, E, R, B, N, T <br> - RTD: PT100, CU50 <br> (Some models might be limited to K-type input only)

Measuring Accuracy

±0.5%FS

Resolution

14 bit

Sampling Cycle

0.5 seconds

Temperature Range

Varies based on input type and specific model, often 0-400°C for K-type (can extend to 1372°C or 1769°C for other TCs/RTDs)

Display

Dual LED (PV: Process Value/Measured Temperature, SV: Setting Value/Target Temperature)

Indicators

LED indicators for Output, Alarm, and Self-tuning

Alarm Function

Multiple alarm modes available (e.g., high/low deviation, process value limits, breakage alarm)

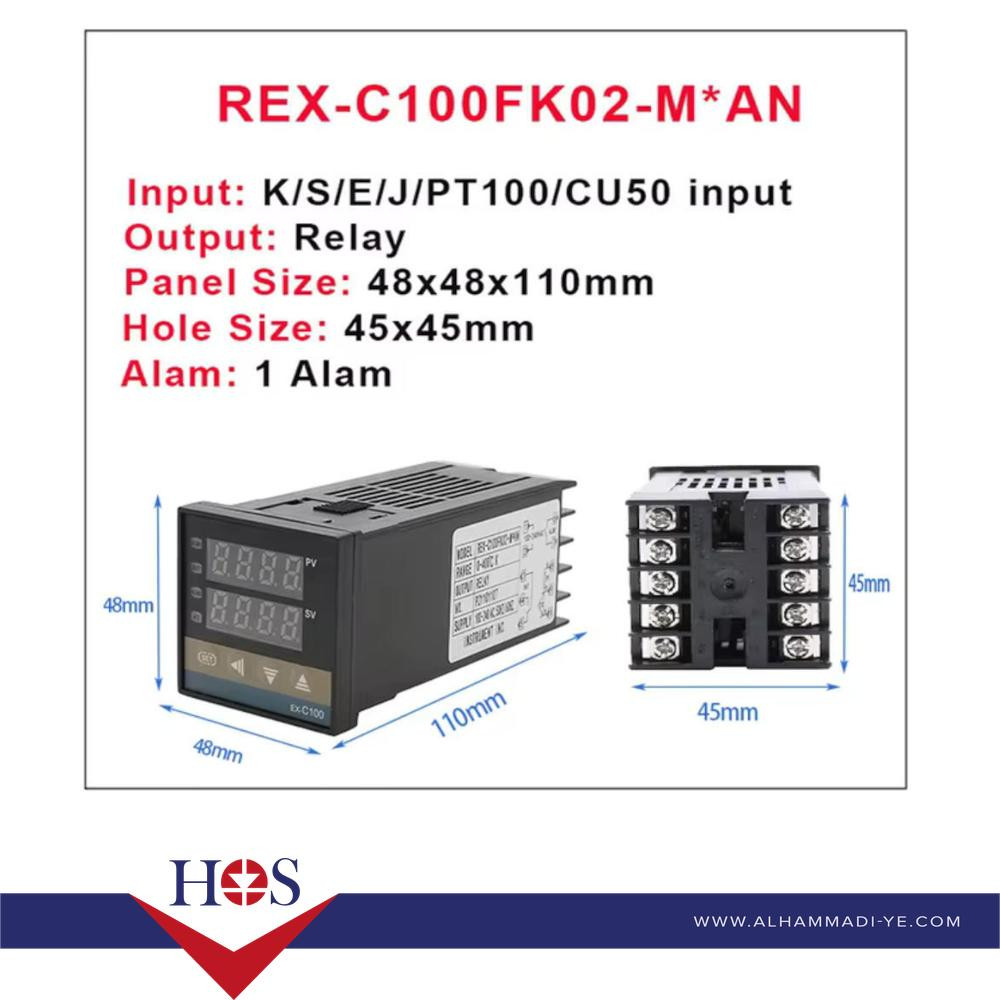

Panel Size

48 x 48 mm (1/16 DIN)

Working Environment

0-50°C, 30-85% RH (non-condensing, no corrosive gas)
