Input Types

Thermocouple: K, J, S, E

RTD: PT100, CU50

Output Type

Relay (SPDT, 250VAC/10A or 30VDC/10A)

Control Output

On/Off, PID (Auto-tune available)

Power Supply

AC/DC 100-240V (50/60Hz)

Temperature Range

-1999°C to +9999°C (depends on sensor)

Control Accuracy

±0.5% FS (±1 digit)

Resolution

0.1°C (or 1°C selectable)

Alarm Output

1x Relay (Configurable as high/low limit)

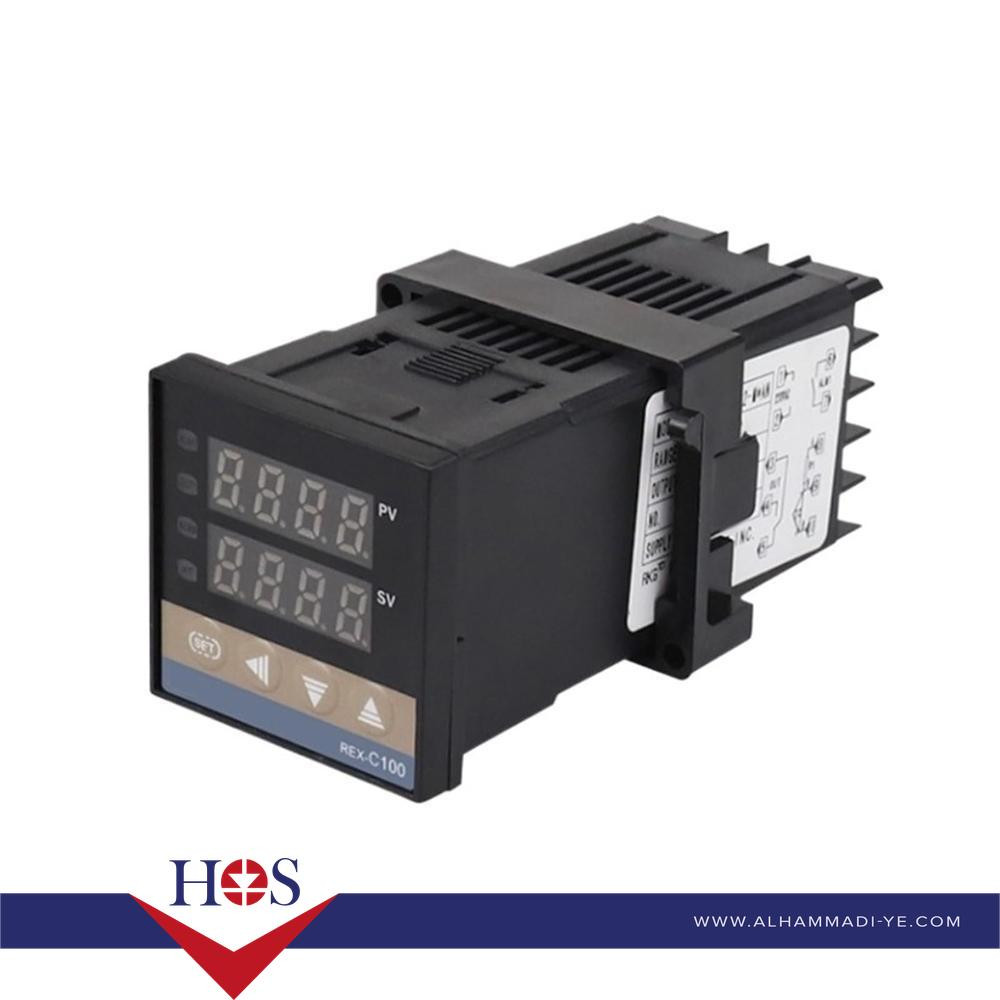

Display

Dual LED (PV/SV)

Control Period

1-100 seconds (adjustable)

Sensor Error Detection

Open-circuit / Short-circuit alarm

Operating Temp.

-10°C to +55°C

Dimensions

48mm × 48mm × 78mm (DIN rail mount)

Relay Life

100,000 cycles (resistive load)
