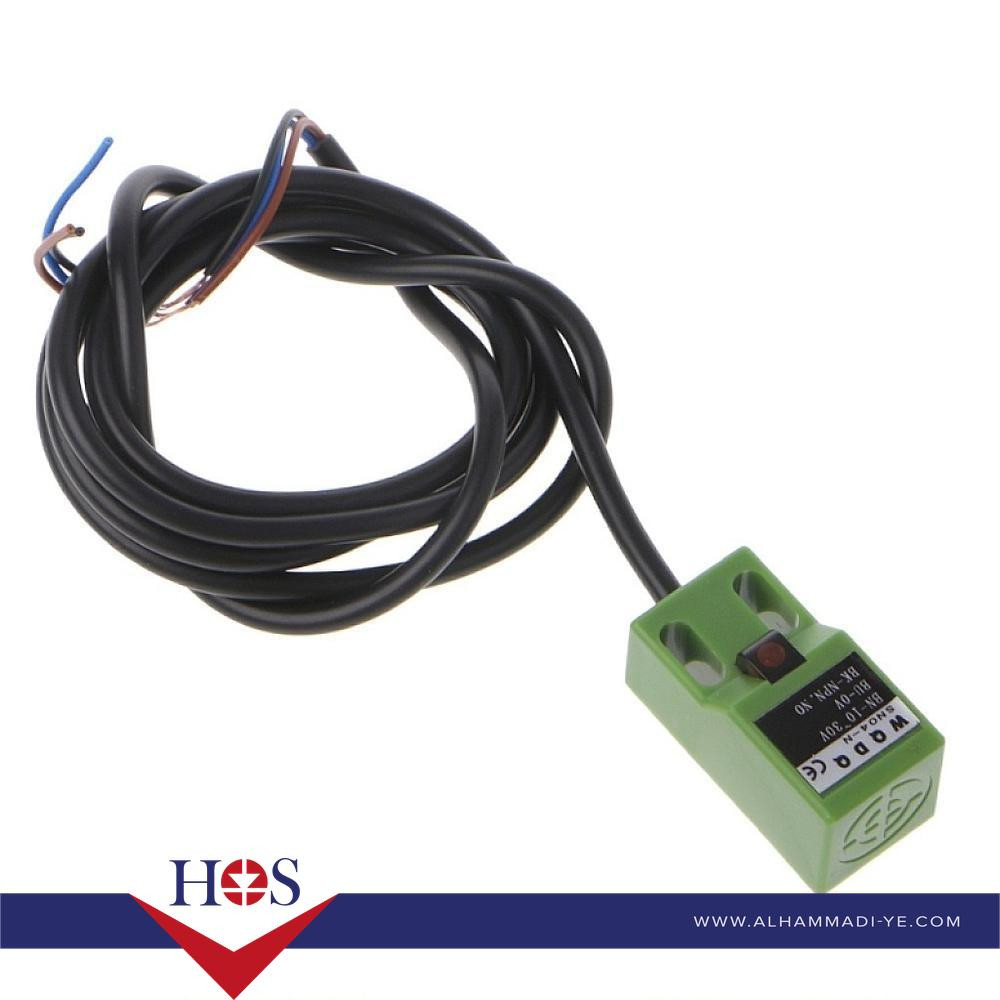

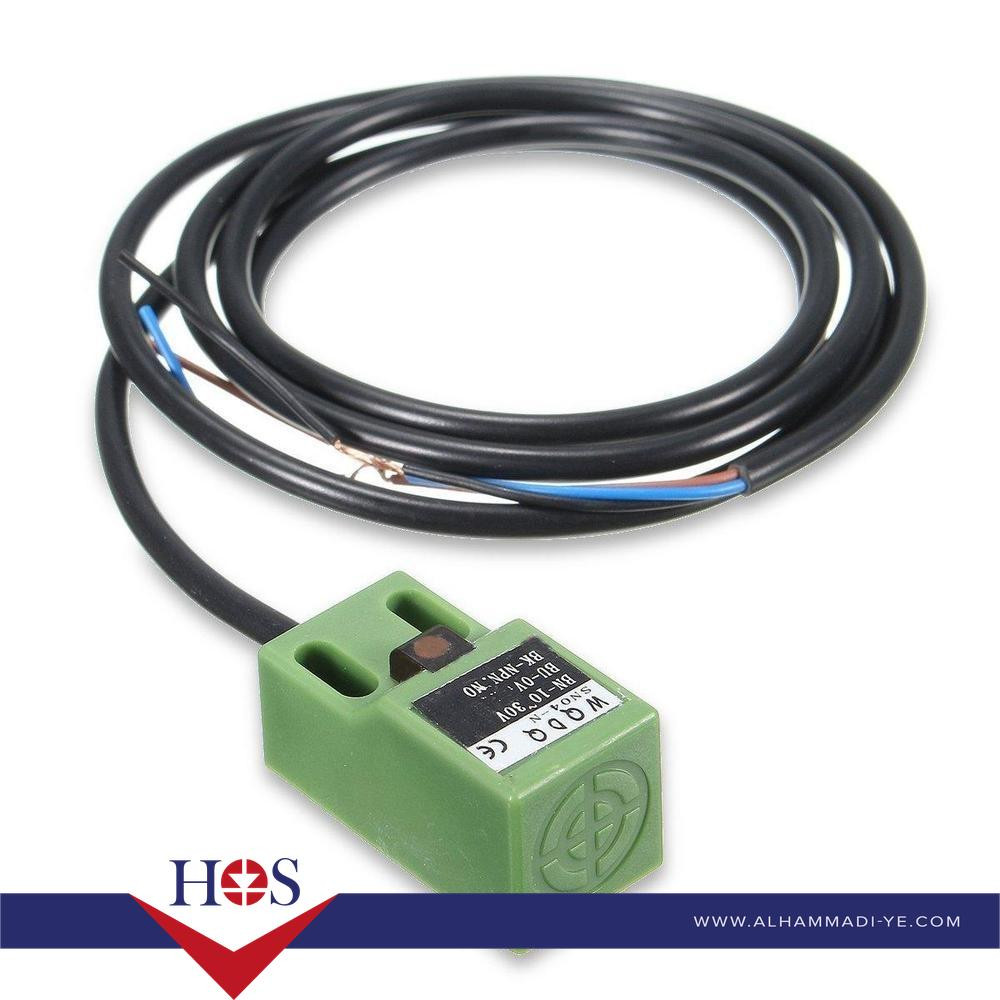

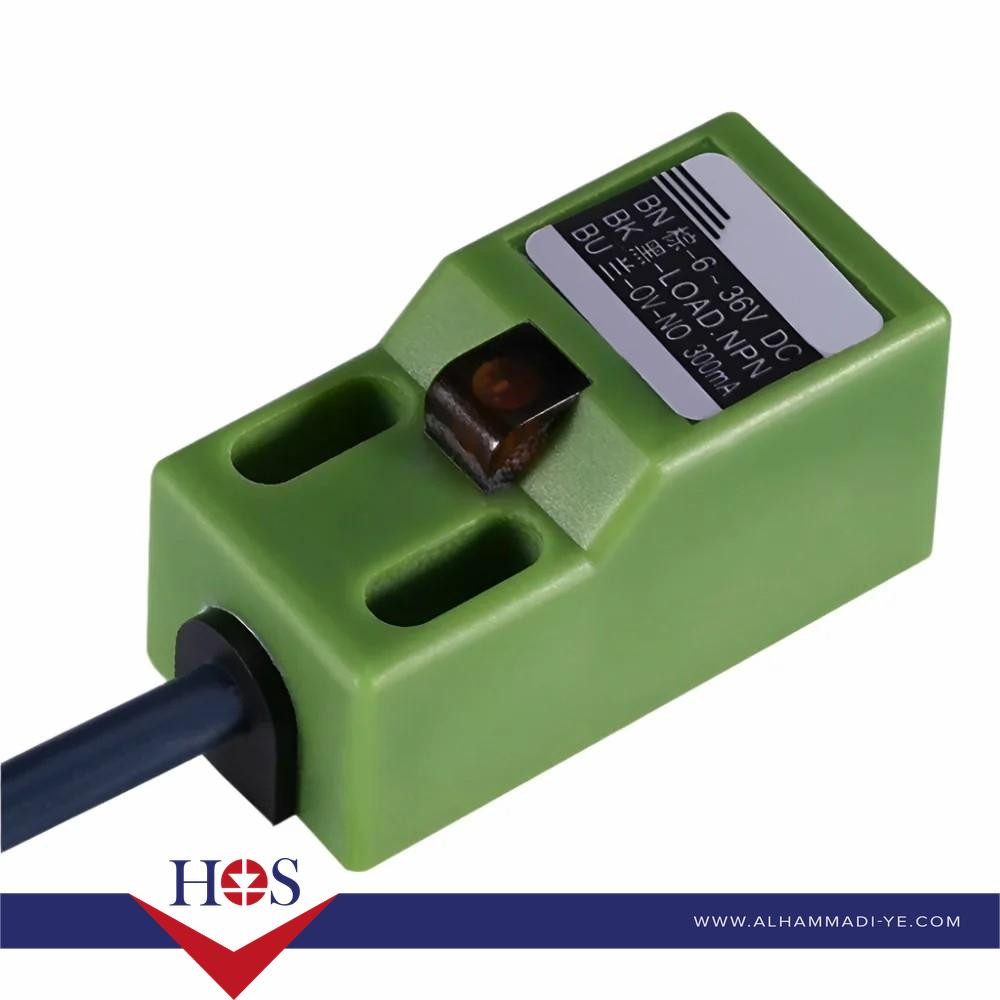

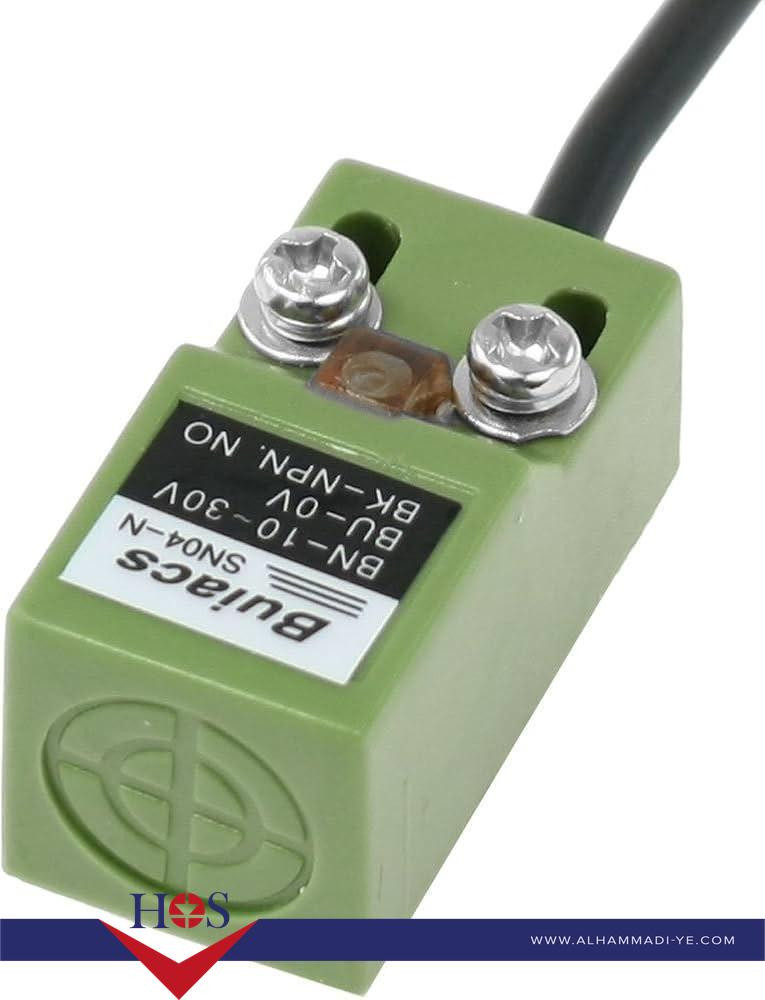

DC NPN NO 5mm 10-30V Detection Distance Proximity Detector Sensor SN04-N حساس تقاربي اخضر
|
Specification |
|
|
Sensor Type |
Inductive Proximity Sensor (NPN) |
|
Output Configuration |
Normally Open (NO) |
|
Operating Voltage |
DC 10-30V |
|
Current Consumption |
≤10mA |
|
Sensing Distance |
5mm (Fixed) |
|
Housing Diameter |
12mm (Common, may vary by model) |
|
Output Current |
≤200mA |
|
Material |
Nickel-plated brass (housing) |
|
Protection Rating |
IP67 (Dustproof & Waterproof) |
|
Switching Frequency |
100Hz |
|
Temperature Range |
-25°C to +70°C |
|
Connection Type |
3-wire (Brown: +V, Blue: GND,
Black: Output) |
|
Indicator Light |
Yes (LED for status indication) |
|
Mounting Style |
Flush or non-flush mounting |
|
Application |
Metal detection, CNC machines,
automation, conveyor systems |
