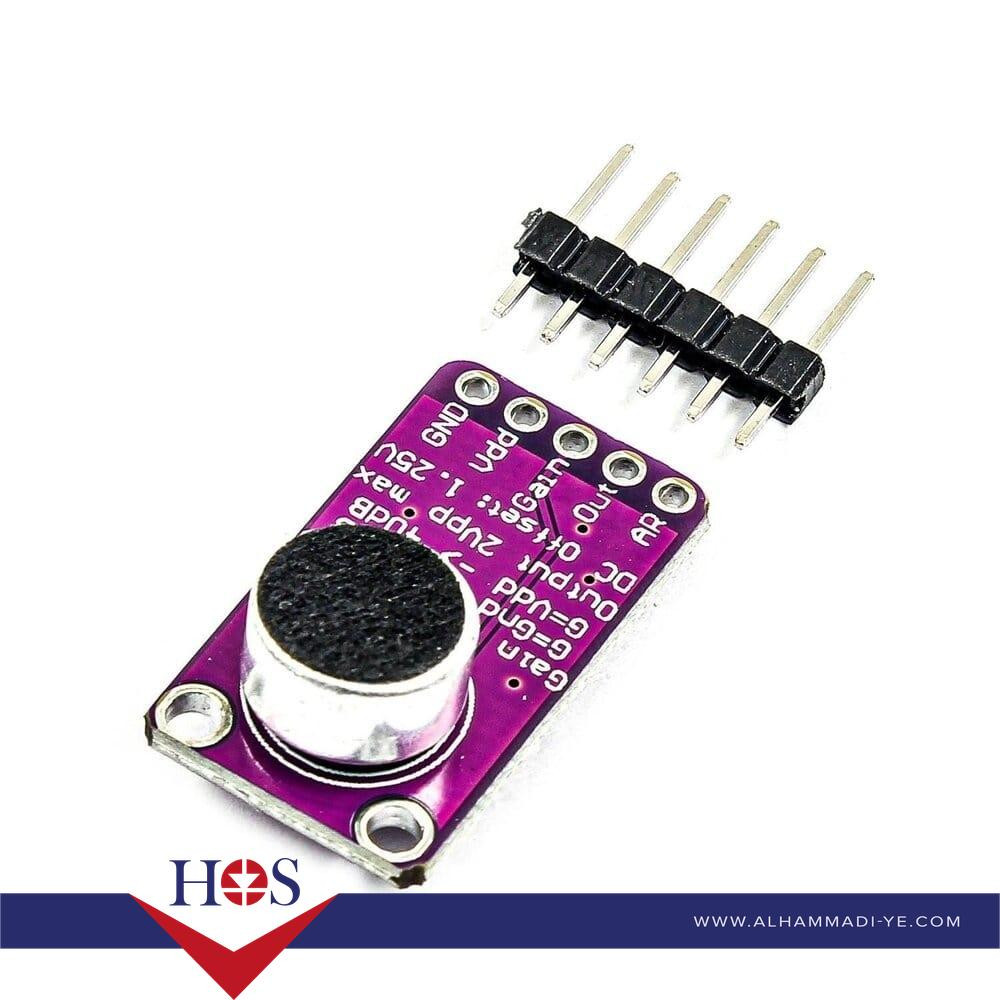

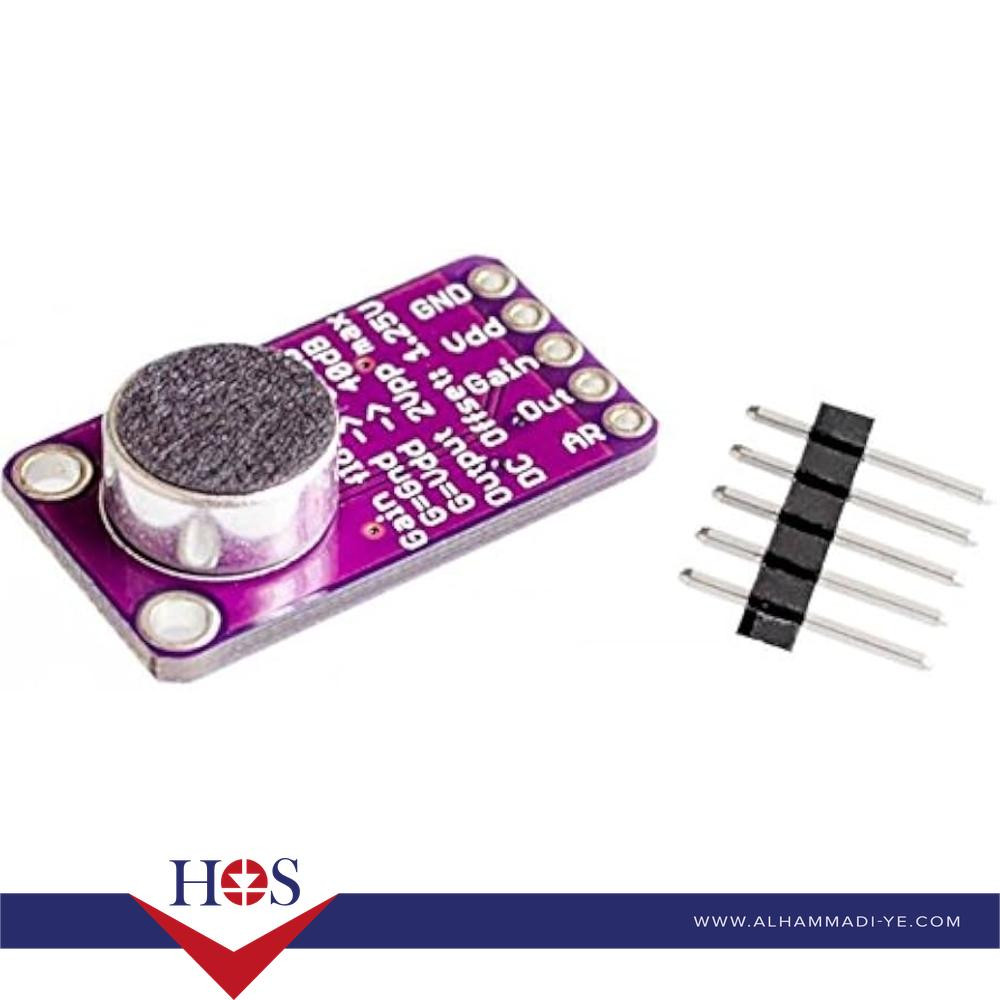

MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W حساس صوت دقيق MAX9814
|
Specification |
|
|
IC Model |
MAX9814 (AGC Electret Mic Amp) |
|
Supply Voltage |
2.7V-5.5V DC |
|
Quiescent Current |
0.5mA (AGC off), 2.4mA (AGC on) |
|
Gain Range |
40dB (fixed) / 50dB (AGC max) |
|
Frequency Response |
20Hz-20kHz (±1dB) |
|
THD+N |
0.04% (1kHz, 1V RMS) |
|
Input Sensitivity |
-34dBV (20mV) to -12dBV (250mV) |
|
AGC Range |
30dB (compression) |
|
Attack Time |
1ms (adjustable via capacitor) |
|
Release Time |
500ms (adjustable via capacitor) |
|
Microphone Bias |
2V (typical) |
|
Output Type |
Analog (DC-coupled) |
|
SNR |
85dB (A-weighted) |
|
Operating Temp |
-40°C to +85°C |
|
Dimensions |
12mm × 12mm × 5mm |
|
Microphone |
CMA-4544PF-W (Omnidirectional) |
