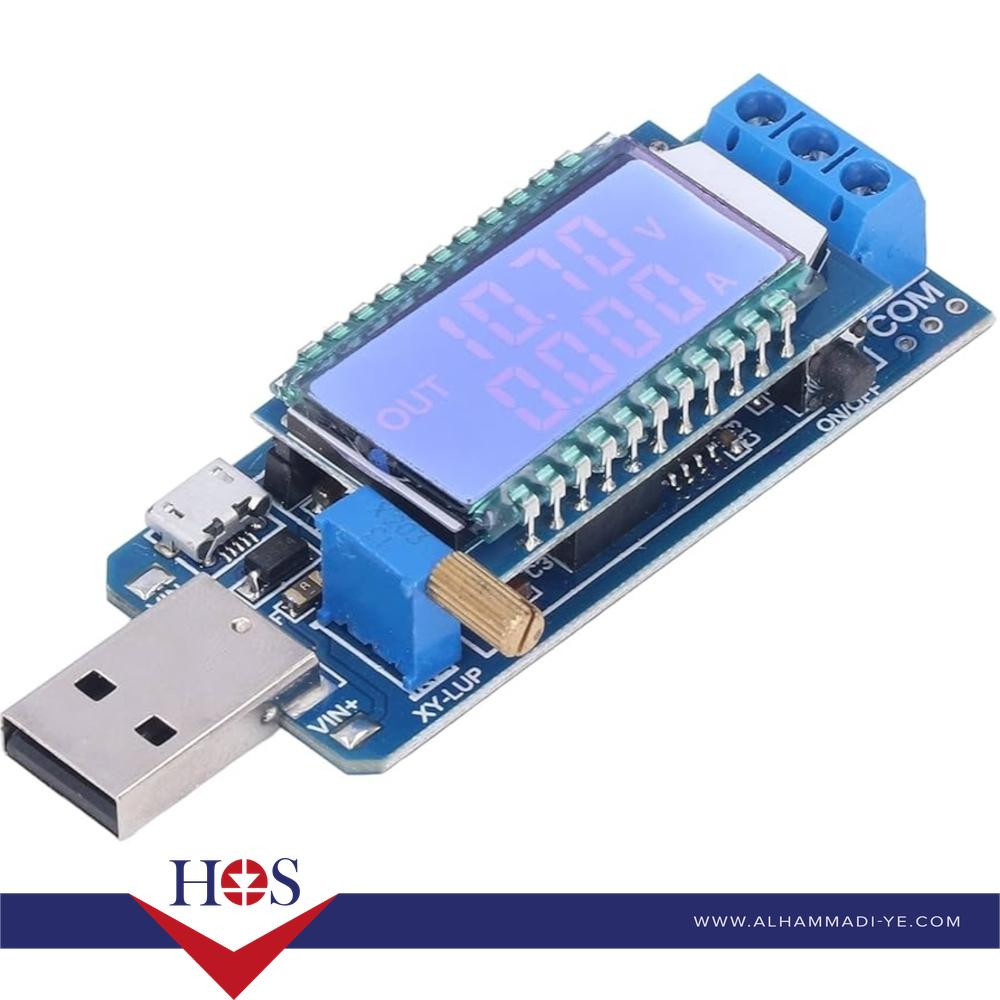

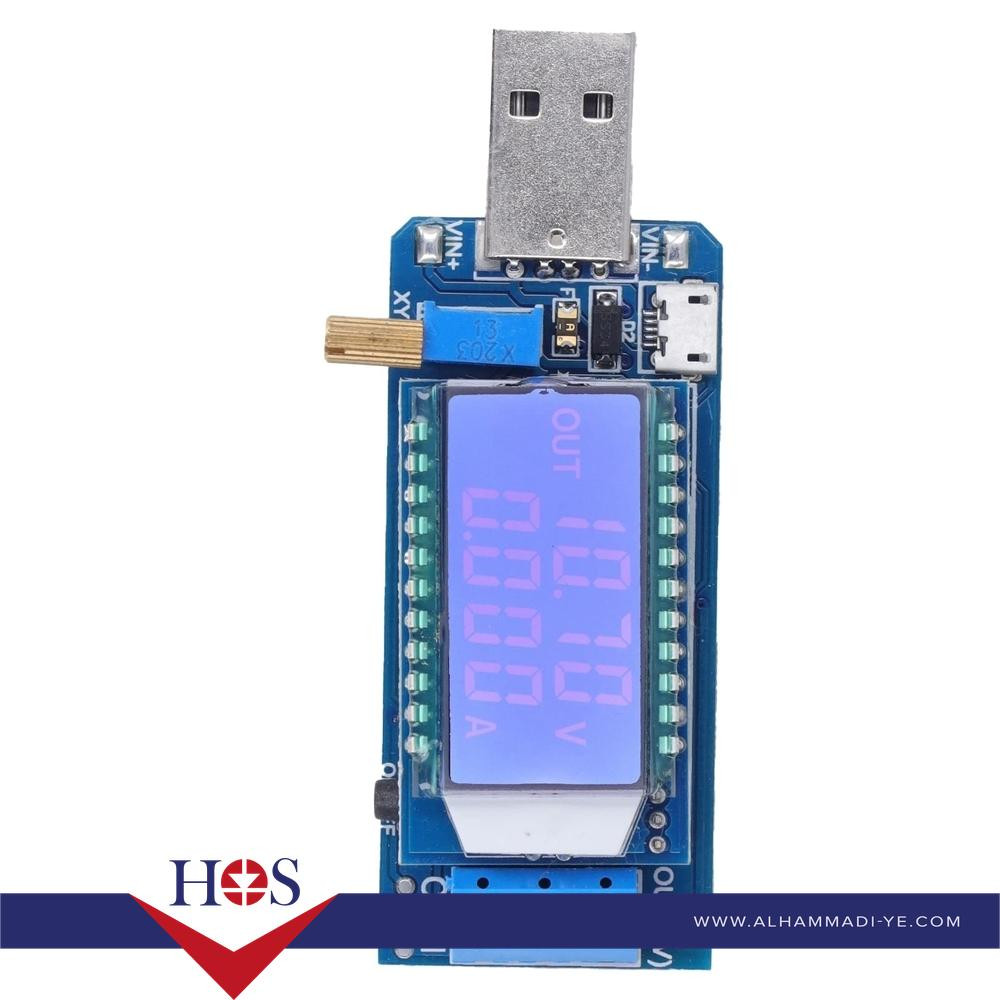

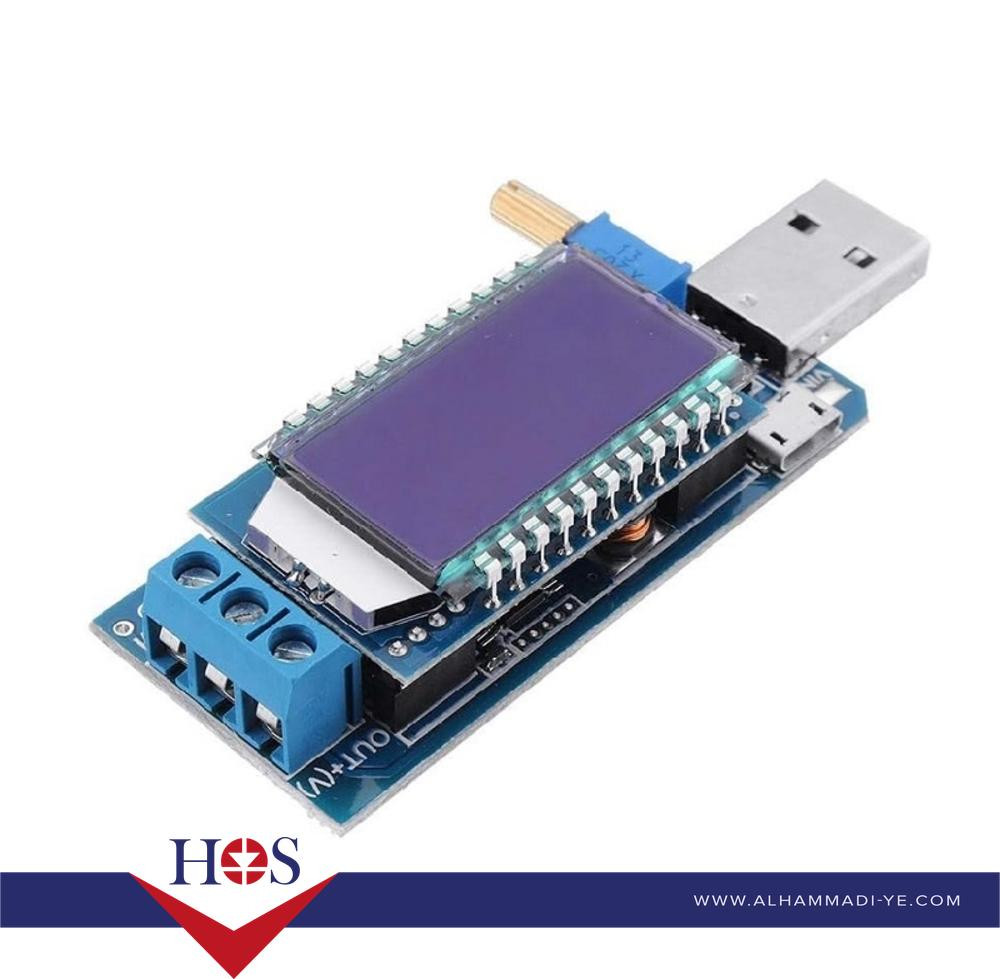

DC-DC USB Step UP / Down Power Supply Module 5V to 3.3V 9V 12V 24V Desktop Power Module رافع وخافض فلتية من 3.3 فولت الي 24 فولت
|
Specification |
|
|
Input Voltage |
USB 5V (4.5-5.5V) or DC 3-24V |
|
Output Voltage |
Adjustable 3.3V/5V/9V/12V/24V
(±2%) |
|
Max Output Current |
3A (shared across all outputs) |
|
Total Output Power |
36W max (24V@1.5A + 12V@1A +
5V@1A) |
|
Conversion Efficiency |
92% (typical at 12V output) |
|
Regulation Type |
Synchronous buck-boost (automatic) |
|
Switching Frequency |
1.2MHz |
|
Ripple Noise |
<50mVp-p |
|
USB Ports |
2× Type-A (5V/2.4A shared) |
|
Adjustable Output |
Via potentiometer (3.3-24V
continuous adj.) |
|
Display |
LED voltage/current meter |
|
Protections |
Over-current, Over-temperature,
Short-circuit |
|
Cooling |
Aluminum heatsink |
|
Operating Temp |
-20°C to +70°C |
|
Dimensions |
85mm × 55mm × 25mm |
|
Weight |
120g |
