Type of Coupling

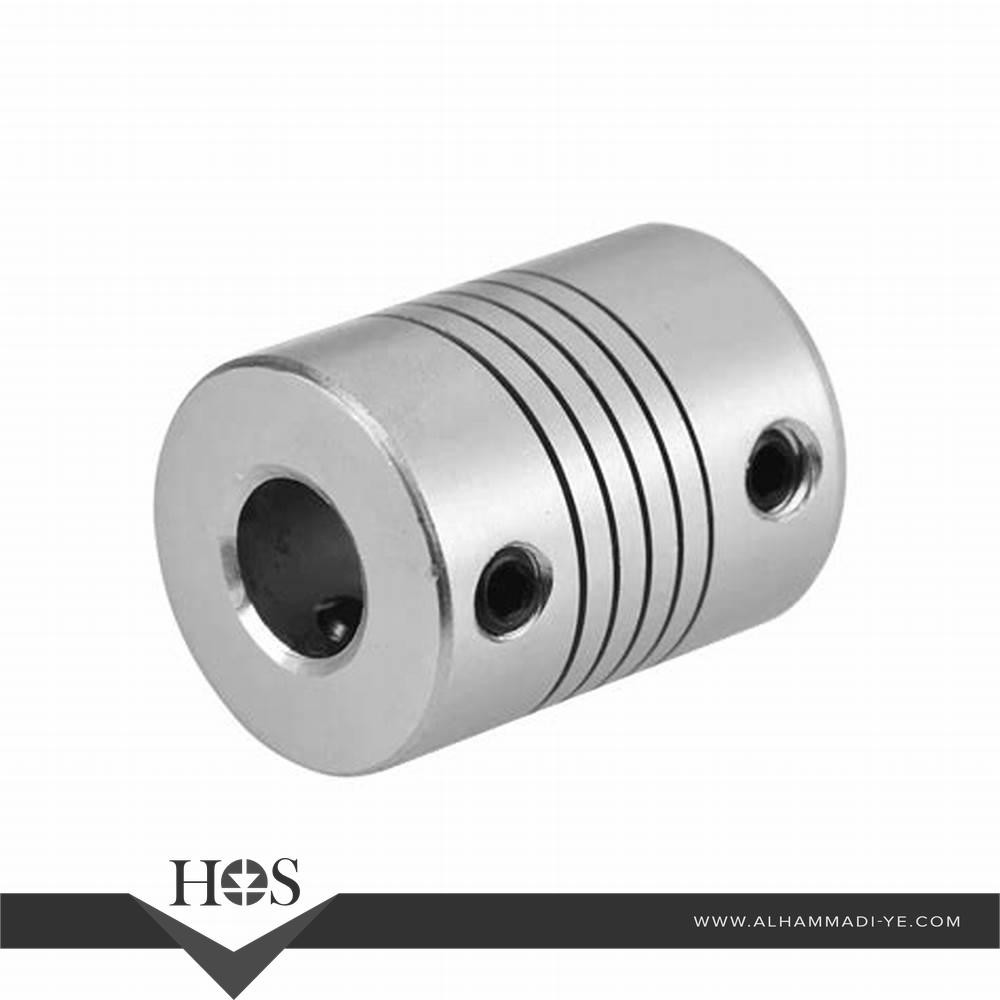

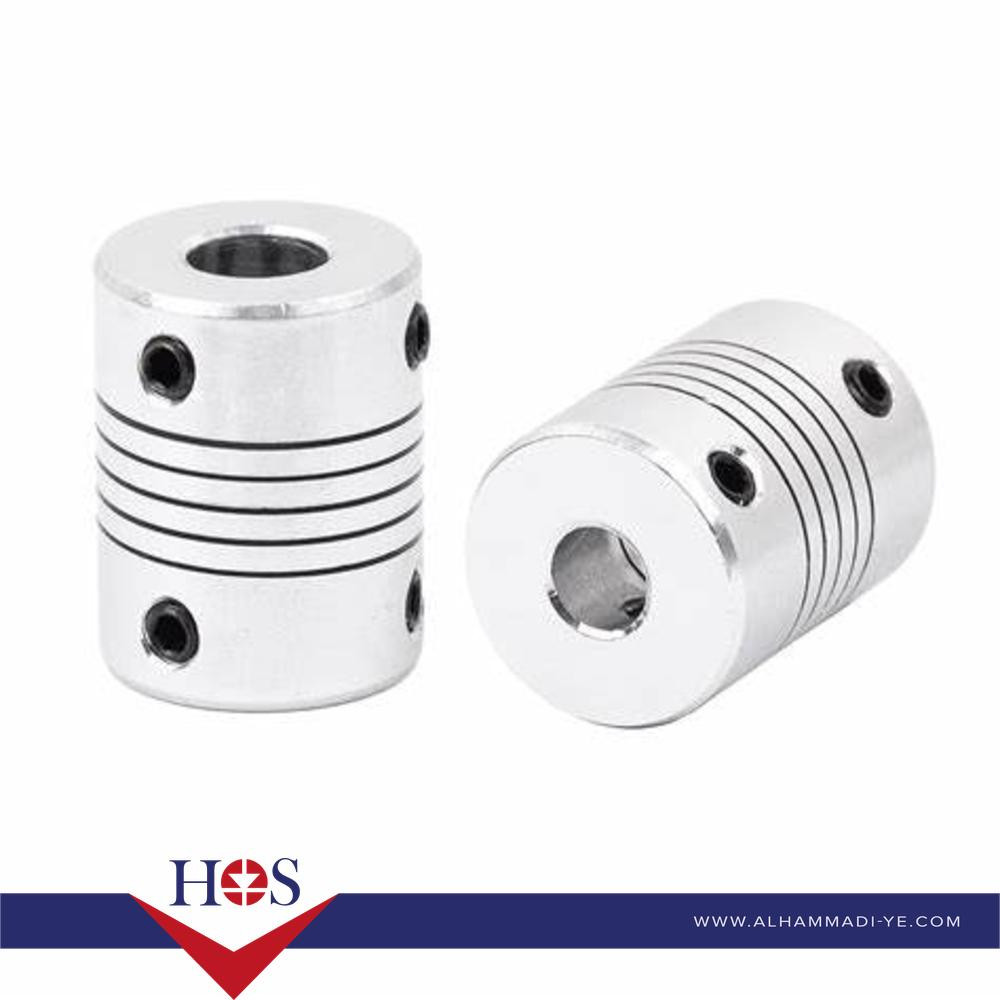

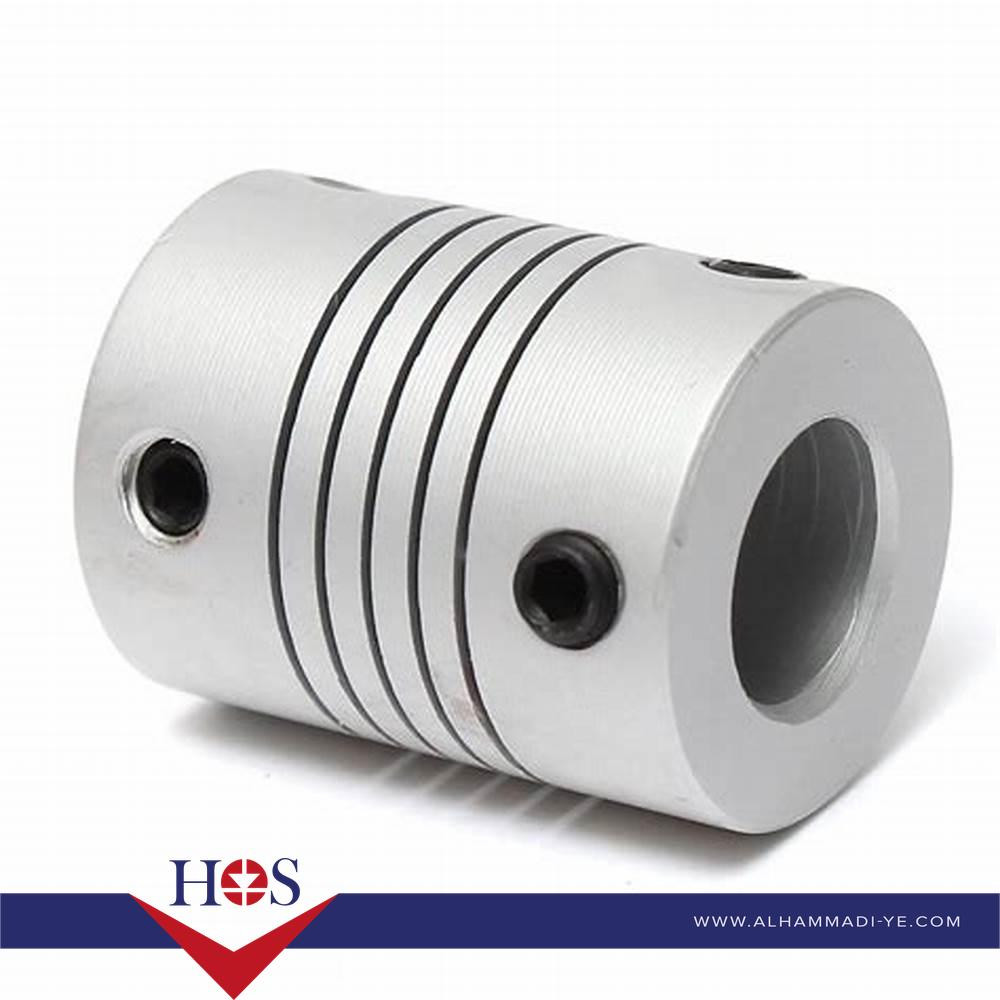

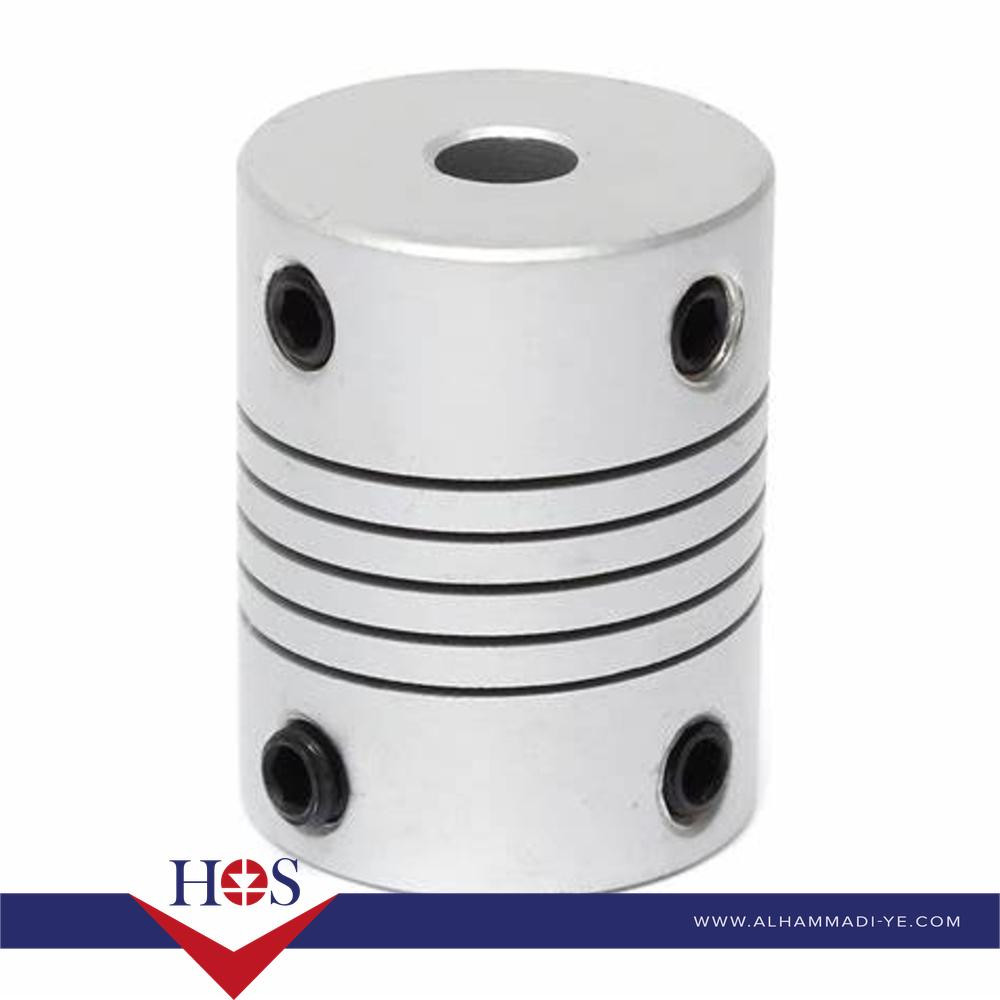

Clamp Flexible Coupling (Often a helical/spiral cut, or jaw/spider type with integrated clamp hubs)

Coupling Material

Aluminum Alloy (Common due to lightweight, good strength, and machinability)

Shaft 1 Bore Diameter

5mm

Shaft 2 Bore Diameter

5mm (Designed for connecting two 5mm diameter shafts/lead screws)

Outer Diameter (D)

20mm

Overall Length (H)

25mm

Shaft Mounting Method

Clamp Style (Uses a slotted design that clamps down uniformly around the shaft when screws are tightened, providing a strong grip without marring the shaft. Typically uses 2 x M3 or M4 cap screws).

Max Torque Rating

Varies by specific design and material, but generally suitable for light to medium duty applications (e.g., 0.5 Nm - 2.5 Nm)

Max Speed

Typically suitable for speeds up to several thousand RPM (check manufacturer specifics for high-speed applications)

Operating Temperature

Varies by material (e.g., -20°C to +80°C for common aluminum/elastomer combinations)

Radial Misalignment Compensation

Small (e.g., 0.05mm - 0.2mm, depends on type and flexibility)

Angular Misalignment Compensation

Small (e.g., 0.5∘−2∘, depends on type and flexibility)

Axial Misalignment Compensation

Small (e.g., 0.2mm - 0.5mm, depends on type and flexibility)
