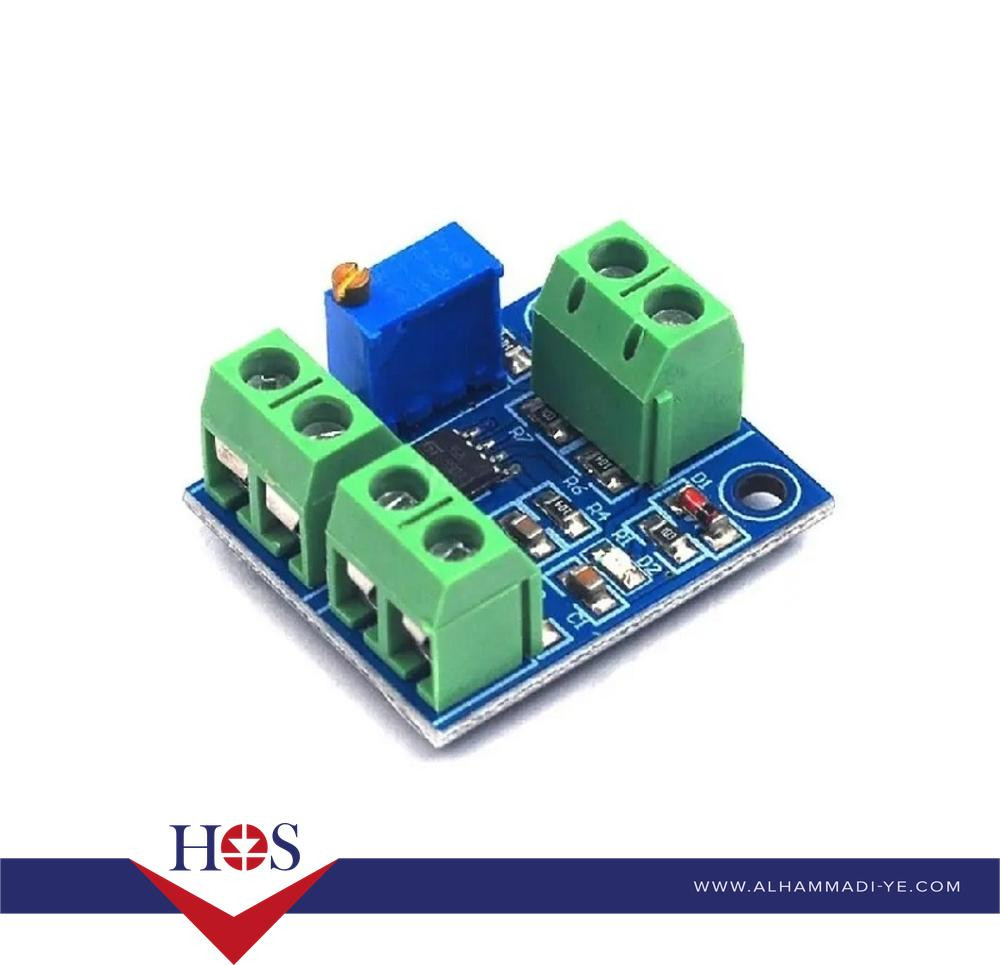

Current to Voltage Converter Module 0-20mA Current Conversion to 0-5V Voltage برده تحويل التيار الي فولت
|
Specification |
|
|
Input Current Range |
0-20mA DC |
|
Output Voltage Range |
0-5V DC |
|
Conversion Ratio |
250Ω
shunt (20mA→5V) |
|
Accuracy |
±0.1% FSR (25°C) |
|
Nonlinearity |
<0.05% |
|
Zero Offset |
<±1mV |
|
Input Impedance |
50Ω (typical) |
|
Output Impedance |
<1Ω |
|
Bandwidth |
DC-1kHz (-3dB) |
|
Power Supply |
DC 7-36V (dual-rail ±12V optional) |
|
Current Consumption |
<5mA |
|
Isolation Voltage |
2500V DC (input-output) |
|
Operating Temp |
-40°C to +85°C |
|
Dimensions |
35mm × 25mm × 12mm |
|
Terminals |
3.5mm screw terminals |
