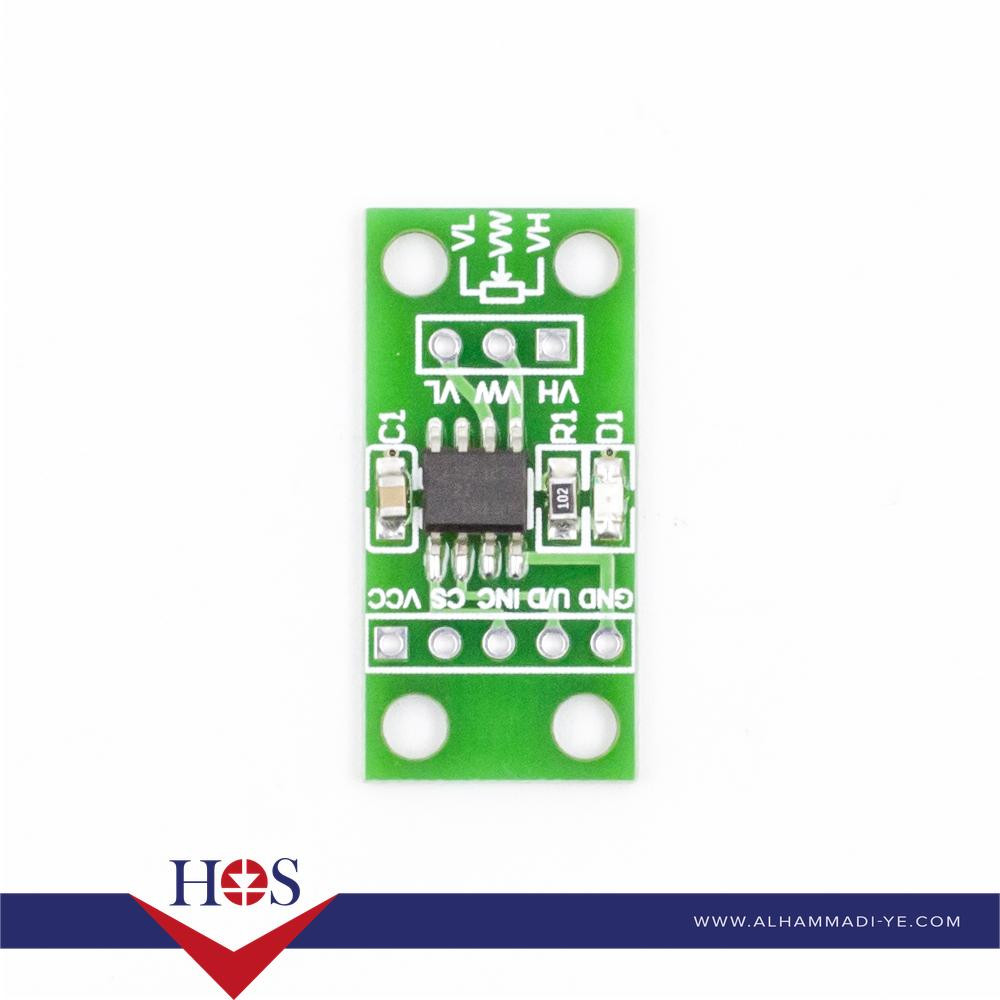

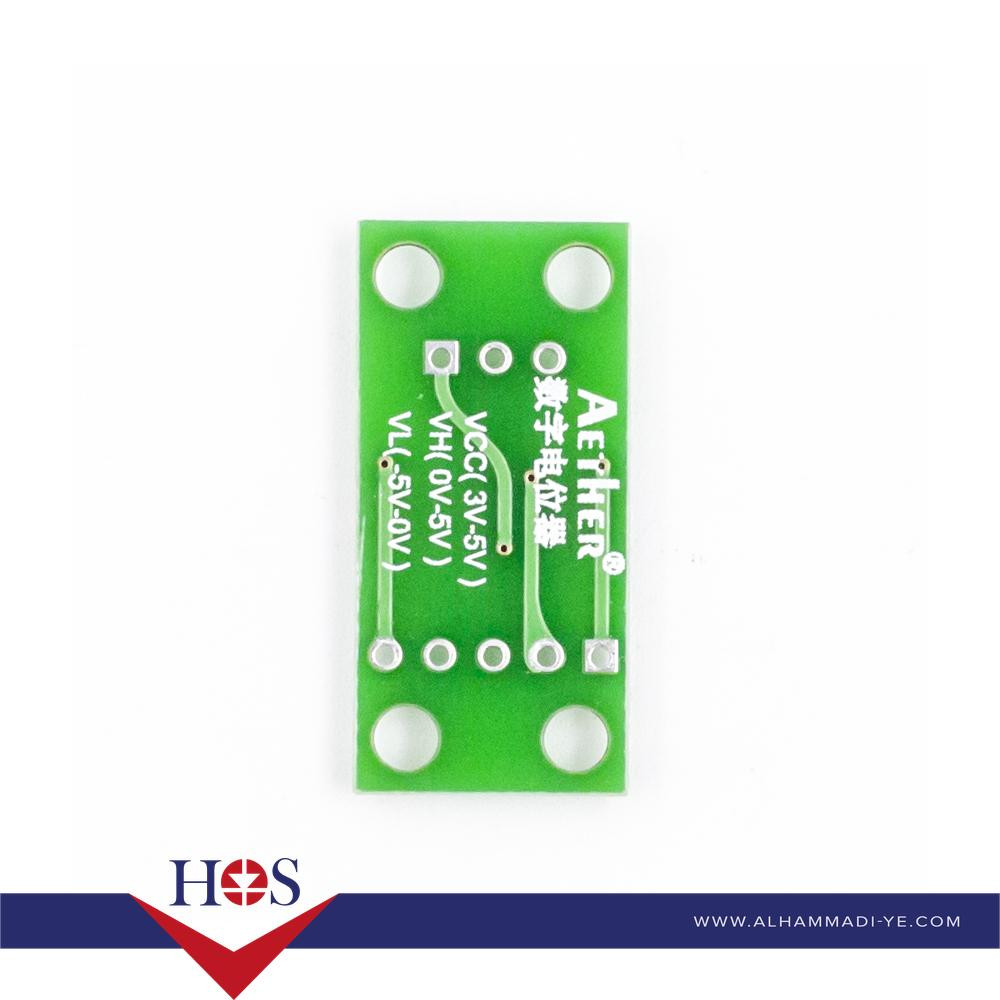

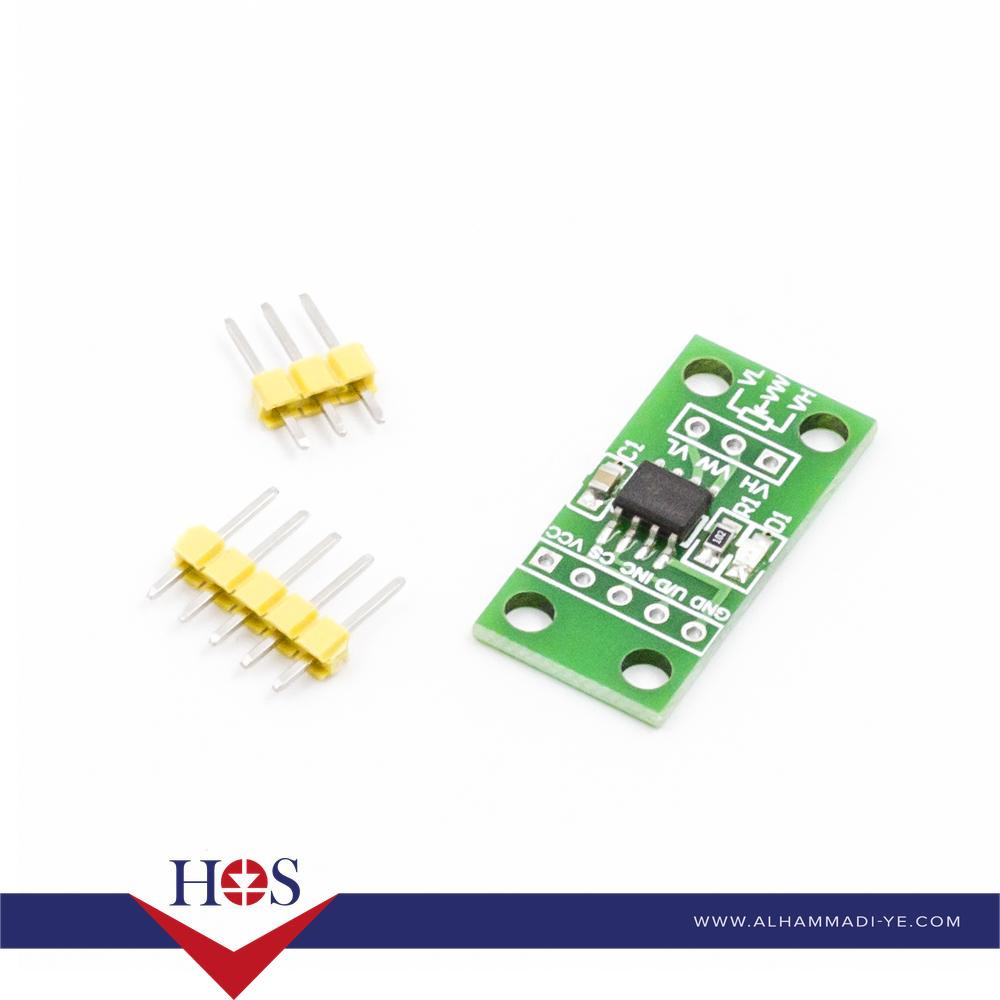

X9C103S digital Potentiometer module مقاومة متغيرة ديجتال
|
Specification |
|
|
IC Model |
X9C103S (Xicor) |
|
Resistance Value |
10kΩ (100-tap points) |
|
Resolution |
100 steps (≈100Ω/step) |
|
Interface |
3-wire SPI-like (CS, U/D, INC) |
|
Voltage Range |
±5V (Analog), 3V-5.5V (Digital) |
|
Wiper Current |
3mA continuous max |
|
End-to-End Tolerance |
±20% |
|
Temp Coefficient |
300ppm/°C typical |
|
Non-Volatile Memory |
Yes (Saves wiper position) |
|
Power Consumption |
3mA active, <1μA standby |
|
Response Time |
1μs per step |
|
Module Dimensions |
20×15×5mm (typical breakout board) |
|
Operating Temp |
-40°C to +85°C |
|
MOQ |
10 units |
