Model

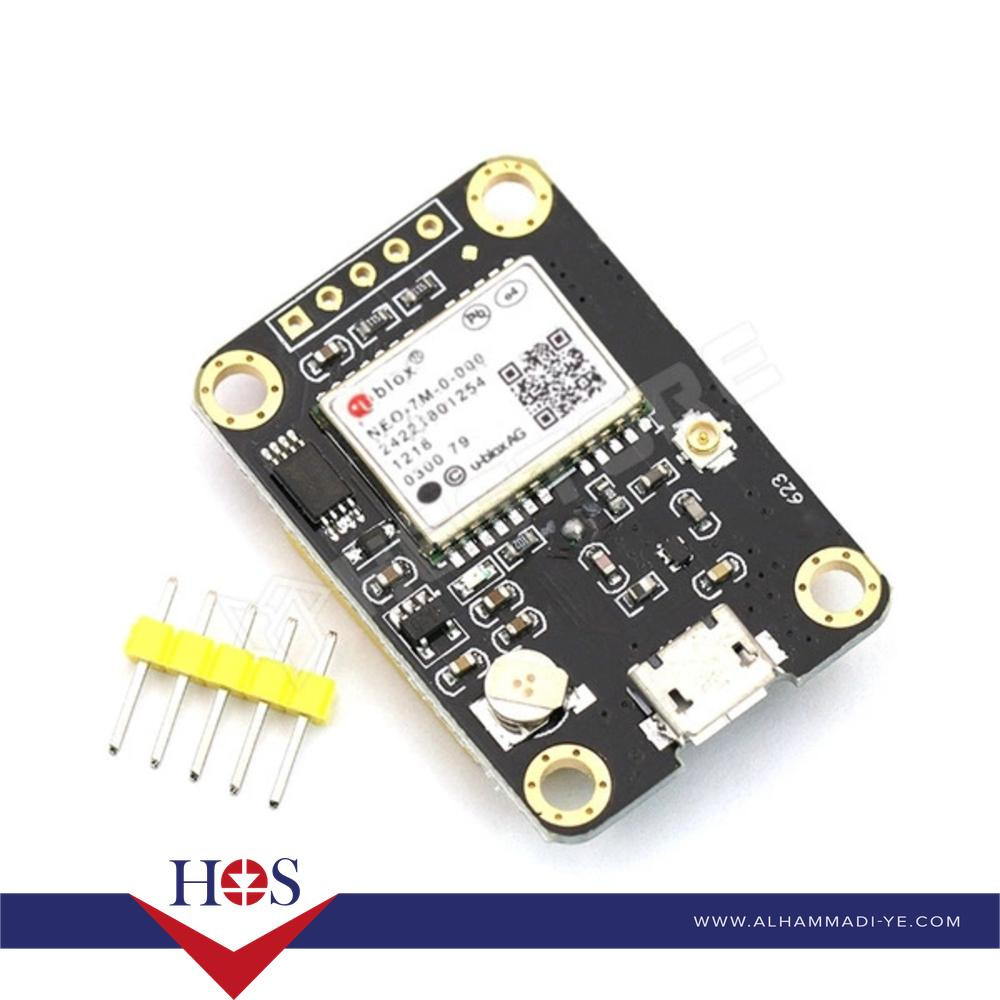

Ublox NEO-7M-0-000

GPS Chipset

u-blox 7 (ROM-based)

GPS Performance

56-channel (u-blox 7 engine) – Supports GPS & GLONASS (configurable)

Update Rate

Up to 5 Hz (configurable)

Position Accuracy

2.5 m (GPS) / 5 m (GLONASS)

Velocity Accuracy

0.1 m/s

Time Accuracy

60 ns (GPS time)

Sensitivity

-161 dBm (Tracking) / -148 dBm (Acquisition)

Startup Times

Cold start: 26s

Interface

UART (Default: 9600 baud, configurable)

Voltage Supply

3.0V – 5.0V DC

Power Consumption

~100 mA (during tracking)

EEPROM

Yes (for configuration storage)

Antenna Compatibility

Active or passive antenna (50Ω impedance)

Mounting

4x mounting holes (for secure installation)

Dimensions

25.5 x 25.5 x 7.5 mm

Operating Temperature

-40°C to +85°C

Applications

Drones (APM 2.5 Flight Control), UAVs, Robotics, Navigation Systems
