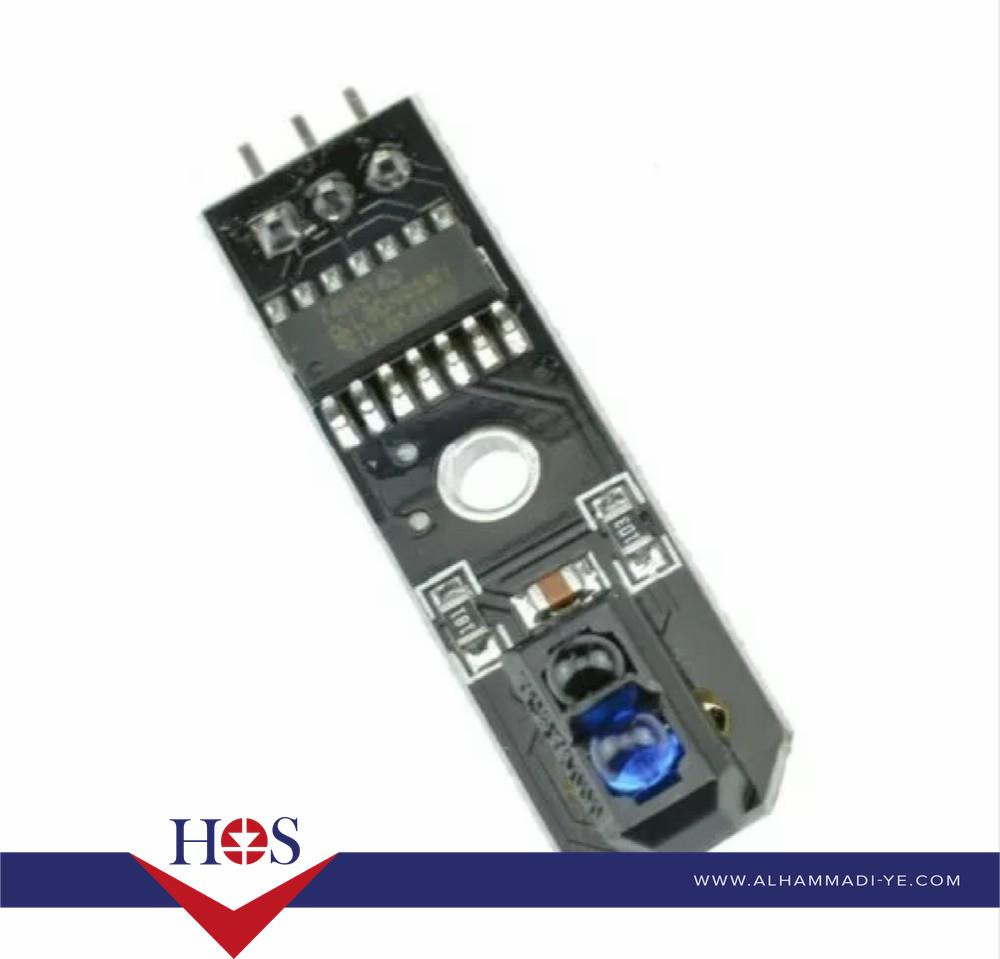

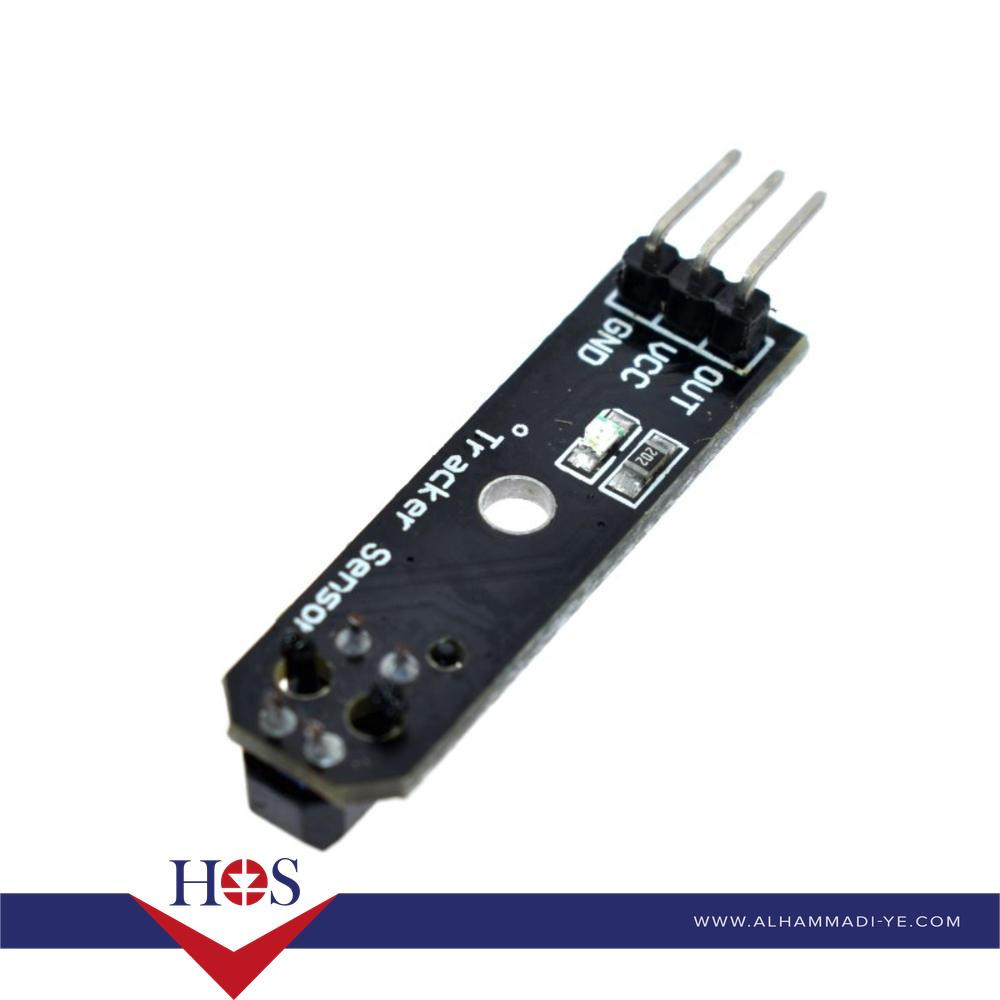

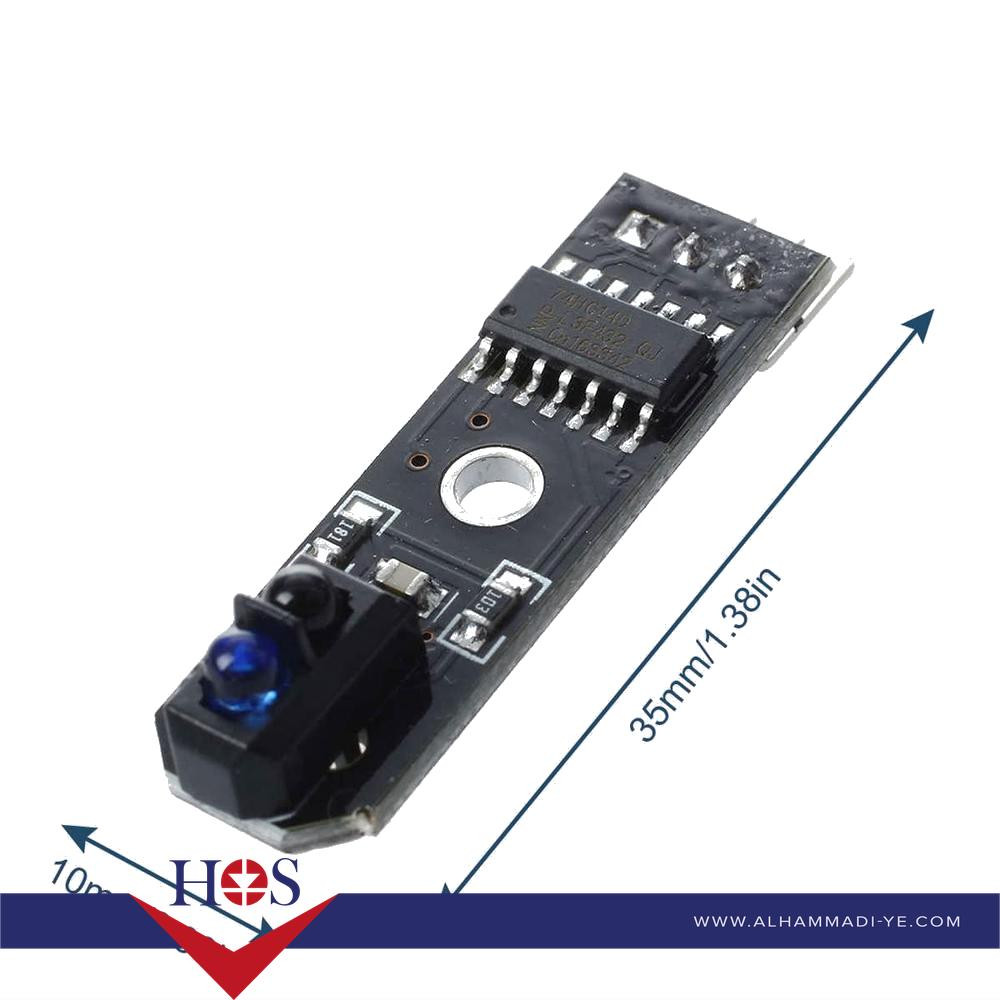

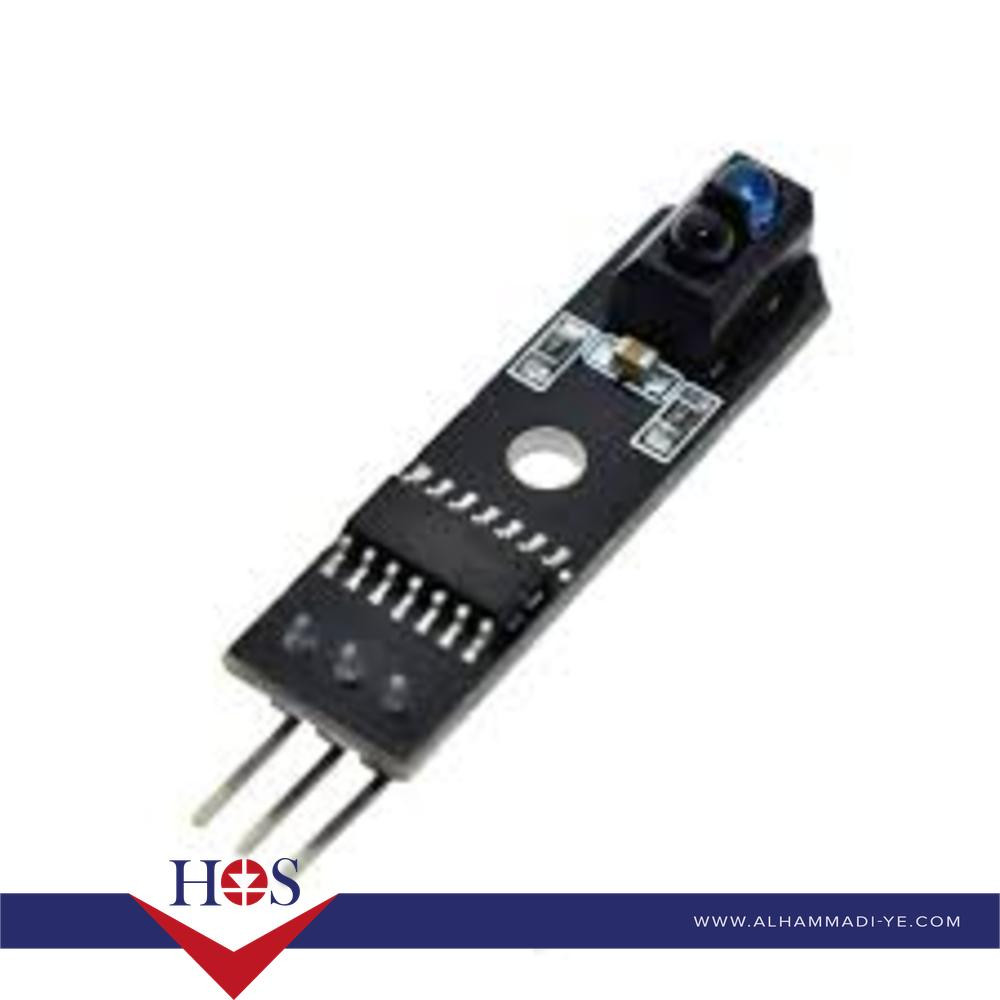

TCRT5000 IR reflex Tracking Sensor Module Smart Car - IR حساس تتبع
|
Specification |
|
|
Sensor Type |
Reflective Infrared (IR) Optical
Sensor |
|
Operating Voltage |
3.3V – 5V DC |
|
Detection Range |
0.2mm – 15mm (adjustable via
potentiometer) |
|
Output Signal |
Digital (TTL) + Analog (AO) |
|
Digital Output |
High/Low (Comparator-based,
threshold adjustable) |
|
Analog Output |
Voltage proportional to reflected
IR intensity |
|
IR Wavelength |
~950nm (Infrared) |
|
Response Time |
<10μs |
|
Current Consumption |
~20mA (typical) |
|
Indicator LEDs |
Power (red) + Digital output
(green) |
|
Interface |
4-pin (VCC, GND, AO, DO) |
|
Mounting Holes |
2.5mm spacing (for easy PCB/servo
attachment) |
|
Operating Temp. |
-25°C to +85°C |
