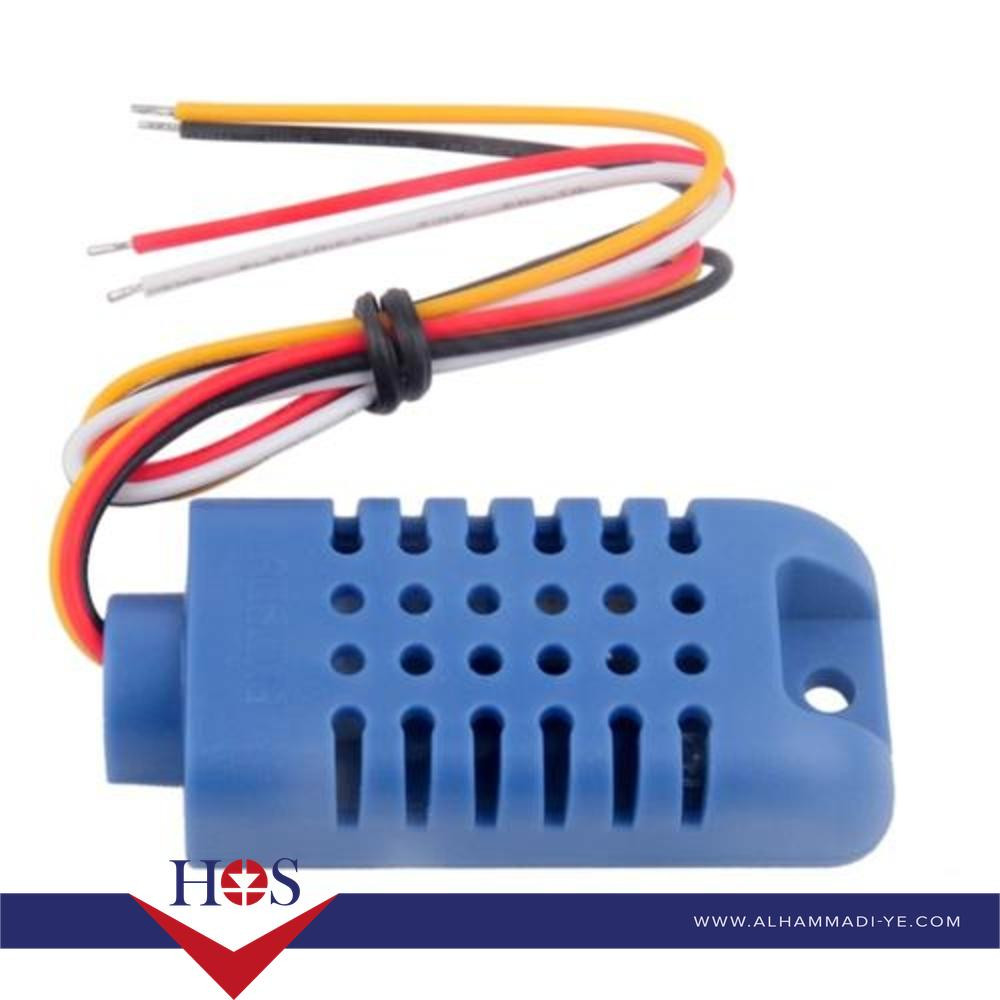

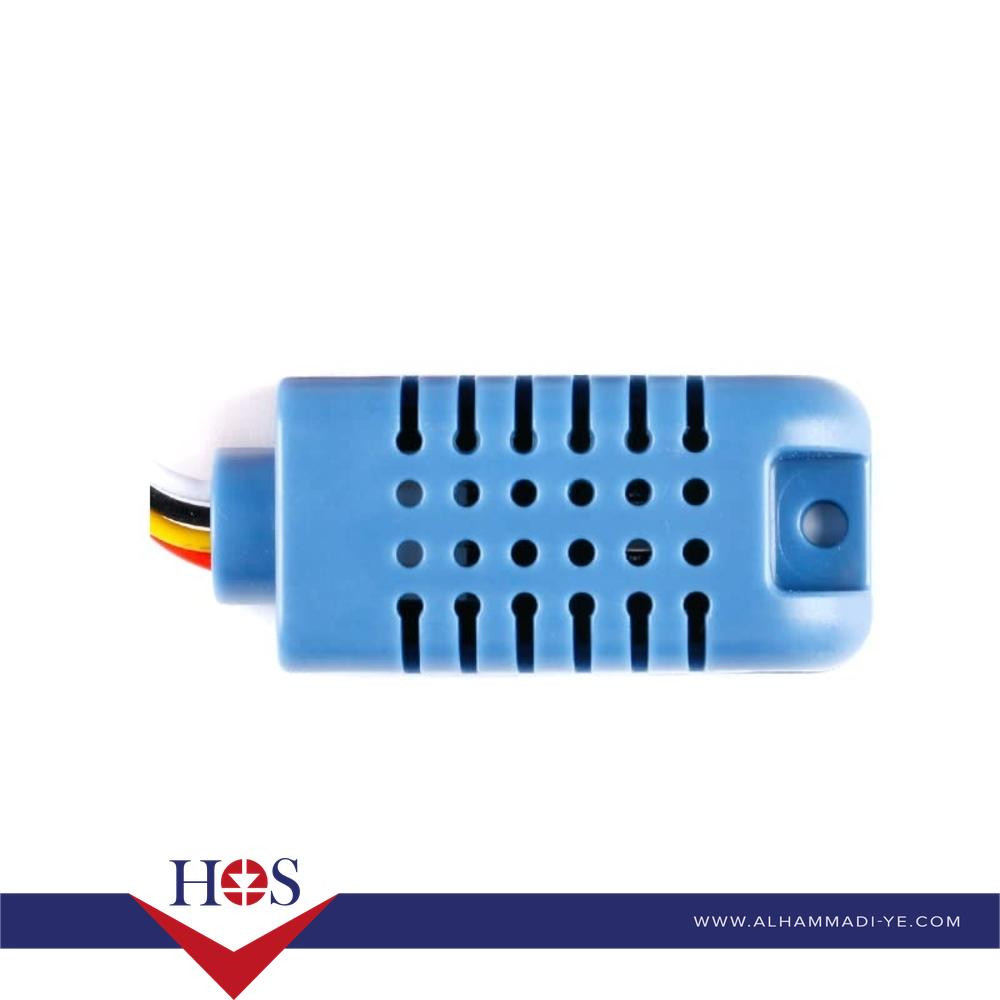

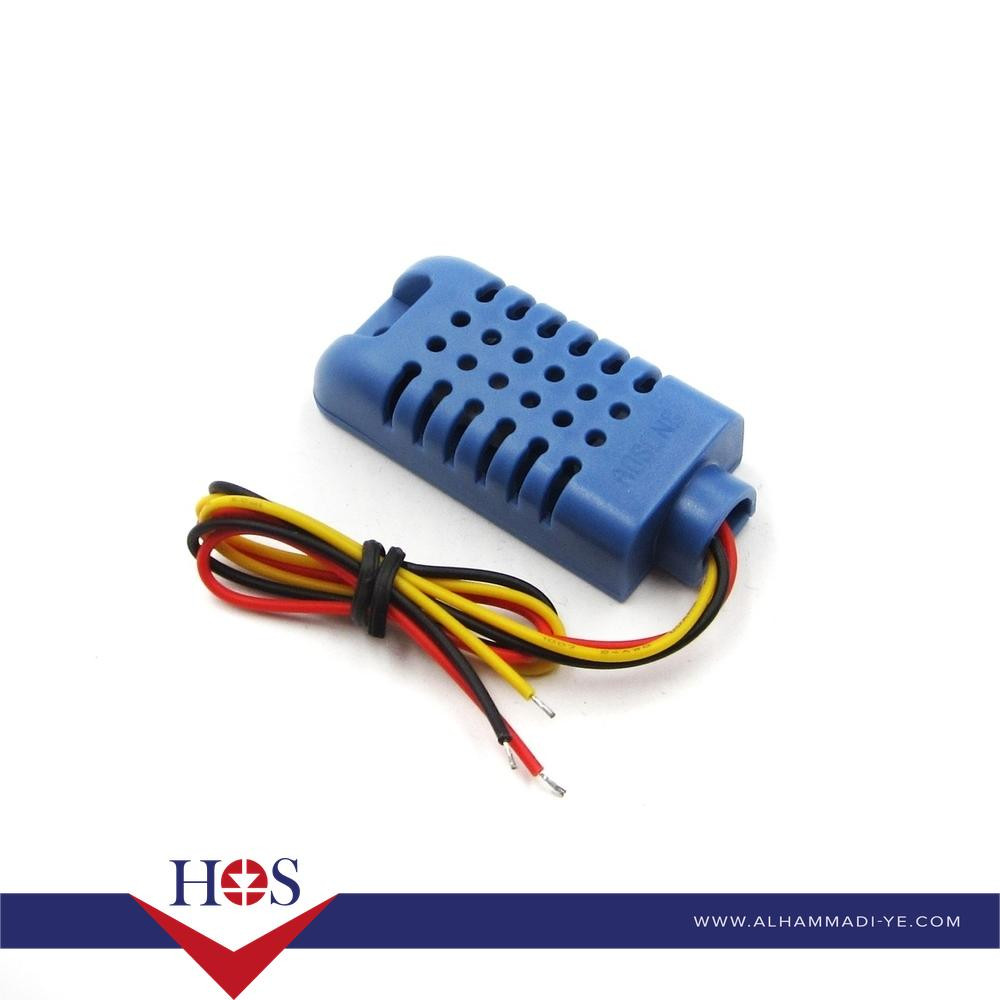

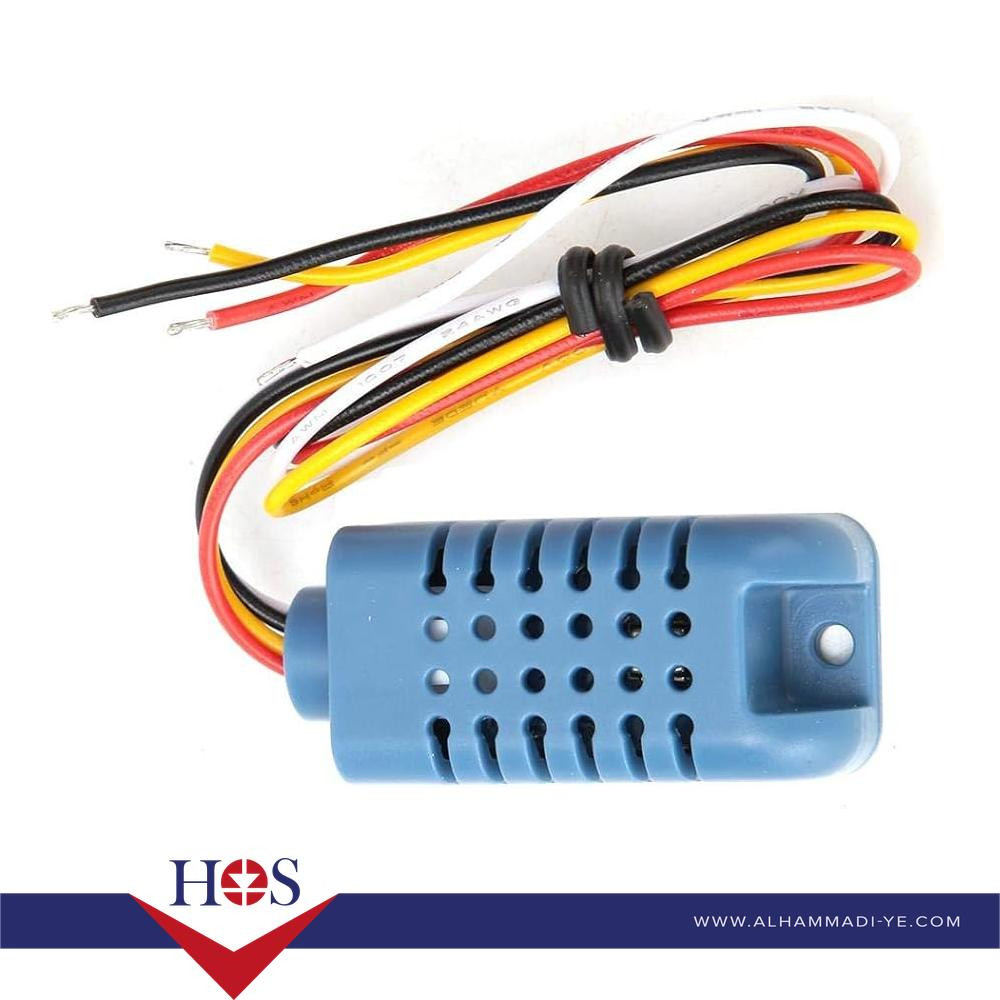

AM2322B Humidity Sensor حساس حرارة ورطوبة
|
Specification |
|
|
Sensor Type |
Calibrated capacitive humidity +
NTC thermistor |
|
Interface |
I²C (0x5C) & One-Wire |
|
Humidity Range |
0-100% RH |
|
Humidity Accuracy |
±2% RH (20-80%) |
|
Temp Range |
-40°C to +80°C |
|
Temp Accuracy |
±0.3°C (@25°C) |
|
Resolution |
0.1% RH / 0.1°C |
|
Response Time |
5s (humidity) / 3s (temperature) |
|
Sampling Rate |
2Hz maximum |
|
Operating Voltage |
2.7V-5.5V DC |
|
Current Consumption |
300μA (active), 0.5μA (sleep) |
|
Housing |
IP67-rated epoxy shell |
|
Dimensions |
11.5mm × 7mm × 3.5mm |
