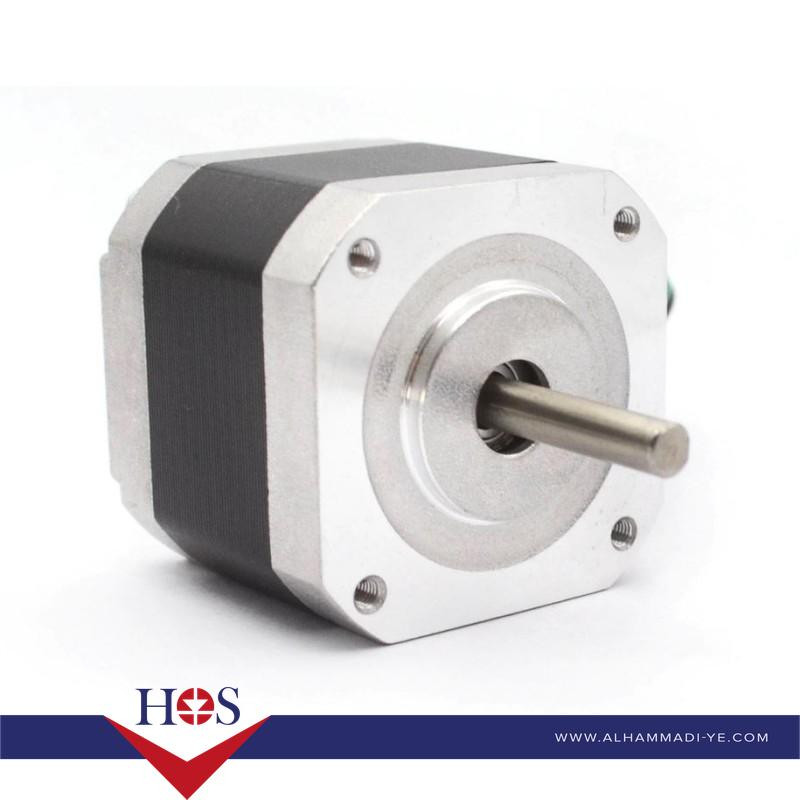

42HD4027-01 NEMA17 Stepper Motor 39.5mm Long, 1.5A with 500mm Cable 4027 ستيبر موتور
|
Specification |
|
|
Motor Type |
Bipolar 4-wire Stepper |
|
Frame Size |
NEMA 17 (42.3×42.3mm) |
|
Body Length |
39.5mm (compact version) |
|
Step Angle |
1.8° (200 steps/revolution) |
|
Current Rating |
1.5A/phase |
|
Voltage Rating |
Typically 12-24V (depends on
driver) |
|
Resistance/Phase |
~2.4Ω (calculated) |
|
Inductance |
~2.2mH/phase |
|
Holding Torque |
~30N·cm (approx. 42oz·in) |
|
Detent Torque |
~1.8N·cm |
|
Rotor Inertia |
~45g·cm² |
|
Weight |
~300g |
|
Cable Length |
500mm (4-wire) |
|
Connector |
Bare wire ends (no connector) |
|
Insulation Class |
Class B |
|
Ambient Temperature |
-20°C to +50°C |
